Reassembly (From 12/2010): Reassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT AXLE HUB LH BEARING
1. Using SST and a press, install a new front axle hub LH bearing to the steering knuckle LH.

  Fig 1: Installing Front Axle Hub LH Bearing To Steering Knuckle LH Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09950-60020
    - 09951-00810
  - SST: 09950-70010
    - 09951-07100
INSTALL LOWER BALL JOINT ASSEMBLY FRONT LH . Refer to INSTALLATION - Step 1
INSTALL DISC BRAKE DUST COVER FRONT LH
1. Place the disc brake dust cover front LH and use a torx wrench (T30) to torque the 4 bolts.
  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)
INSTALL FRONT AXLE HUB SUB-ASSEMBLY LH

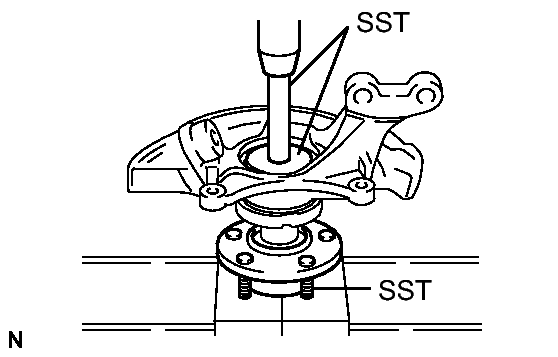

1. Using SST and a press, install the front axle hub sub-assembly LH.

  Fig 2: Installing Front Axle Hub Sub-Assembly LH Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09608-32010
  - SST: 09950-60020
    - 09951-00810
  - SST: 09950-70010
    - 09951-07100
INSTALL FRONT AXLE HUB LH HOLE SNAP RING

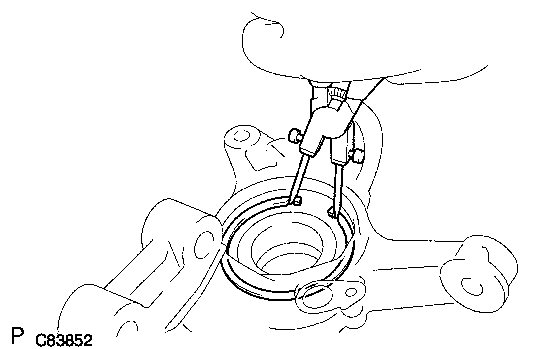

1. Using snap ring pliers, install a new front axle hub LH hole snap ring.

  Fig 3: Installing Front Axle Hub LH Hole Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL BEARING DUST DEFLECTOR NO. 1 LH

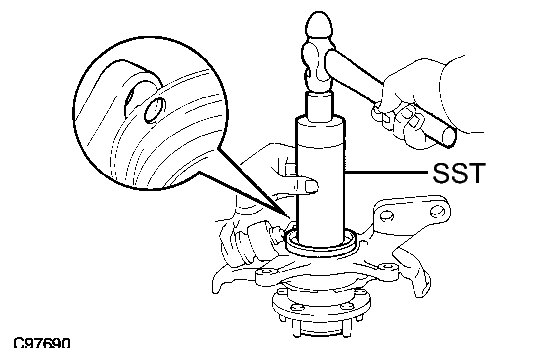

1. Using SST and a hammer, install a new bearing dust deflector No. 1 LH.

  Fig 4: Installing Bearing Dust Deflector No. 1 LH Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09316-60011
    - 09316-00011
    - 09316-00031
  - SST: 09608-32010
  HINT:

  Align the hole for the speed sensor in the bearing dust deflector No. 1 LH with the steering knuckle.
