High Intensity Discharge Headlight Bulb: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL DISCHARGE HEADLIGHT BULB
    1. Lock the set spring to install the discharge headlight bulb as shown in the illustration.

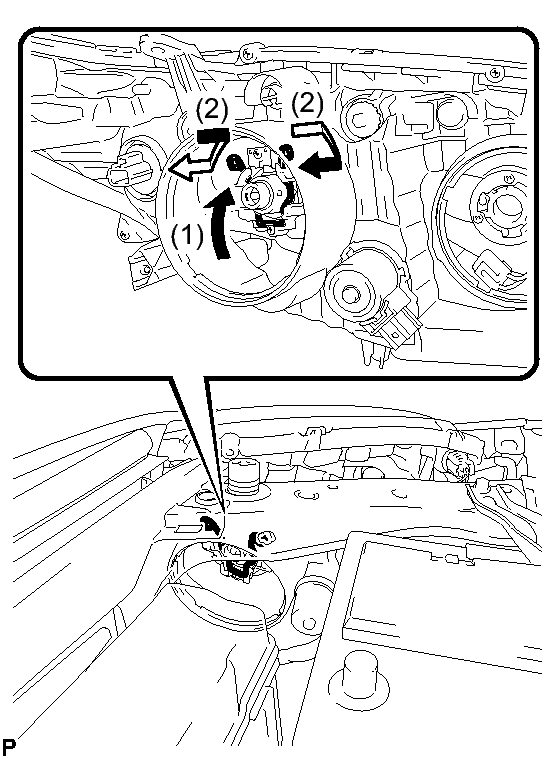

      Fig 1: Installing Discharge Headlight Bulb
      GTY297280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.

  2. INSTALL LIGHT CONTROL ECU
    1. Turn the socket of the light control ECU in the direction indicated by the arrow shown in the illustration to connect it.

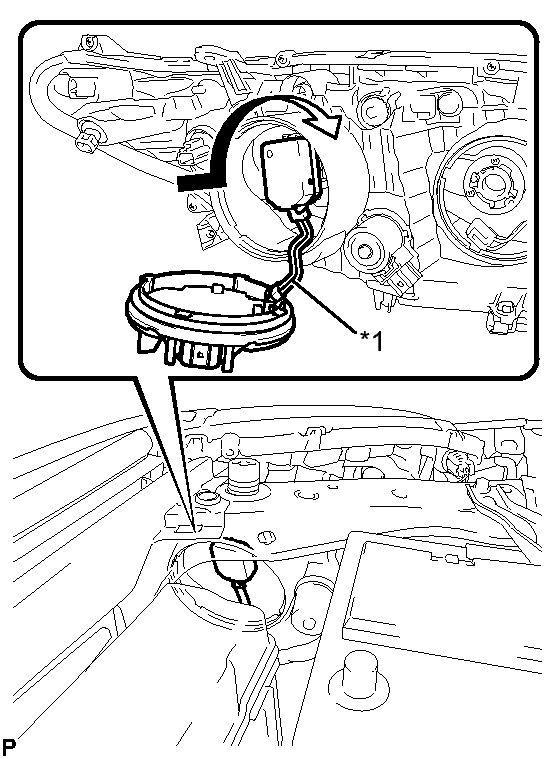

      Fig 2: Installing Light Control ECU Component
      GTY303415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Check that the O-ring is installed on the light control ECU.
      • Check that the O-ring is not damaged or contaminated with foreign matter. If there is any damage, replace the O-ring with a new one.
      • Do not pull the light control ECU with the socket connected.
    2. Check that the red line on the output harness is not twisted and store the harness in the headlight assembly securely so that the output harness is not pinched.
      TEXT IN ILLUSTRATION

      *1 Red Line
    3. Turn the light control ECU in the direction indicated by the arrow shown in the illustration until the lock marks are aligned to install it.

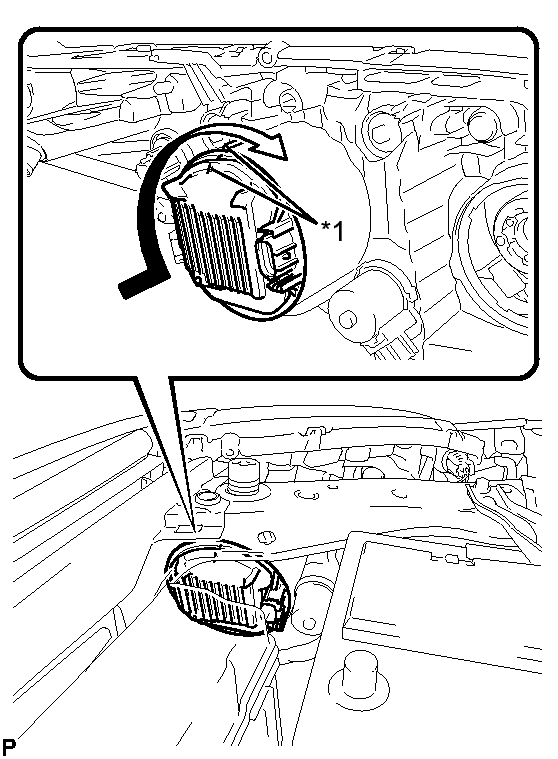

      Fig 3: Locating Light Control ECU Lock Mark Component
      GTY298850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Mark
      NOTE:
      • To prevent incomplete installation, make sure to fully push in and turn the light control ECU until the lock marks are aligned.
      • Do not apply excessive force using a tool.
    4. Connect the connector.
  3. INSTALL COOL AIR INTAKE DUCT SEAL (for LH Side)  . Refer to INSTALLATION - Step 3
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
