DTC Check / Clear

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INDICATOR CHECK
1. Turn the ignition switch on (IG) while pressing the FRONT DEF switch and FAN+ switch simultaneously.

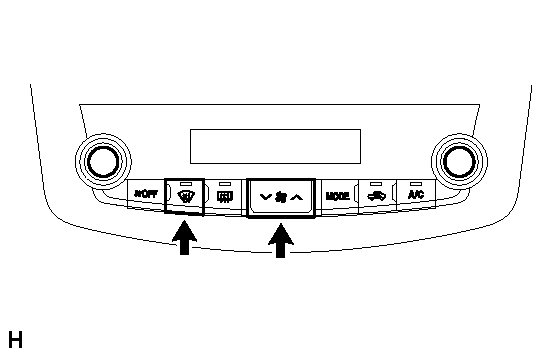

  Fig 1: View Of Front Def Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the all indicators come on.

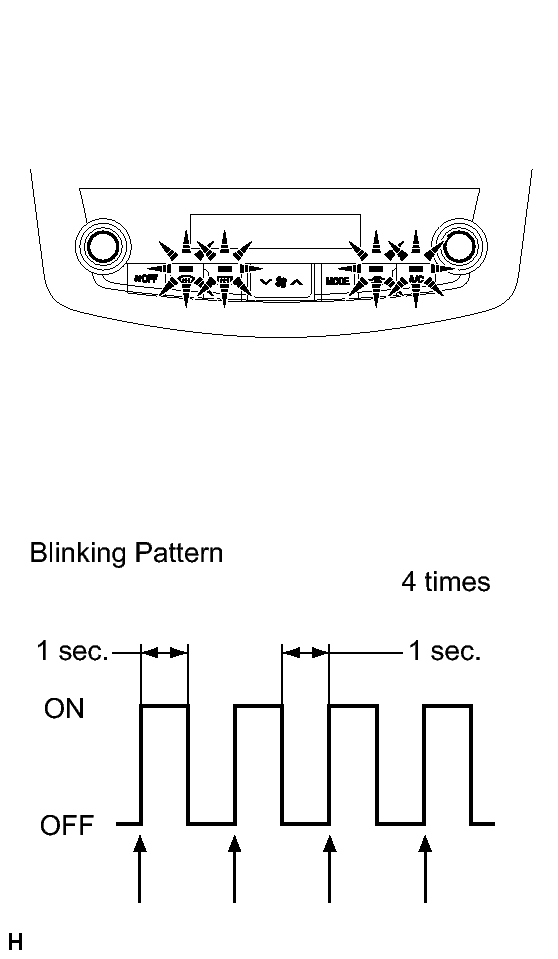

  Fig 2: View Of Blinking Pattern Diagram
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. The all indicators go off 4 times in succession at 1 second intervals.
  HINT:
  - After the indicator check is completed, the system enters the DTC mode automatically.
  - Press the "OFF" switch to cancel the indicator mode.
DTC CHECK USING TECHSTREAM
1. Connect Techstream to the DLC3.
2. Turn the ignition switch on (IG).
3. Read the DTC following the prompts on Techstream screen. Please refer to Techstream operator's manual for further details.
4. Clear the DTCs.
  HINT:

  After repairing the malfunctions, clear the DTC.
  1. Connect Techstream to the DLC3.
  2. Turn the ignition switch on (IG).
  3. Erase the DTCs following the prompts in the tester screen.
    HINT:

    Refer to Techstream operator's manual for further details.
