Automatic Transaxle Assembly: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY  (See TORQUE CONVERTER CLUTCH AND DRIVE PLATE )
  2. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Install the torque converter clutch to the automatic transaxle.
    2. Using a vernier caliper and a straightedge, measure dimension A between the transaxle contact surface of the engine and the torque converter contact surface of the drive plate.
      Fig 1: Measuring Dimension A
      G06043274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a vernier caliper and a straightedge, measure dimension B shown in the illustration and check that dimension B is greater than dimension A.

      Standard dimension:

      A + 1 mm (0.0394 in.) or more

      NOTE: Subtract the thickness of the straightedge from the measured value to obtain dimension B.

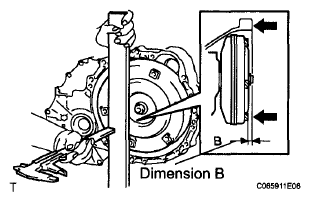

      Fig 2: Measuring Dimension B
      G06011583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
    1. Coat a new O-ring with ATF WS, and install it to the hole cover.
    2. Install the hole cover to the transaxle case with the bolt.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

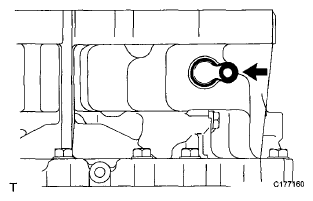

      Fig 3: Locating Hole Cover O-Ring
      G06043273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL OIL COOLER TUBE
    1. Connect the 2 oil cooler hoses to the 2 unions with the 2 hose clamps.
    2. Install the oil cooler tube to the automatic transaxle with the bolt.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

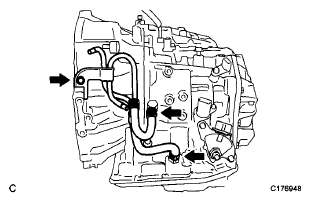

      Fig 4: Locating Oil Cooler Hoses, Unions With Hose Clamps
      G06043277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY
    1. Coat a new O-ring with ATF WS, and install it to the oil filler tube.
    2. Install the oil filler tube to the automatic transaxle with the bolt.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    3. Install the transmission oil level gauge sub-assembly.

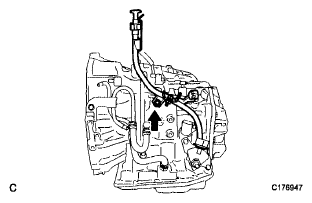

    Fig 5: Locating Transmission Oil Level Gauge Bolt
    G06011572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Install the cable bracket with the 2 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  7. INSTALL TRANSFER ASSEMBLY  (See INSTALLATION )
  8. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
    NOTE: Confirm that 2 knock pins are on the transaxle contact surface of the engine block before the transaxle installation.

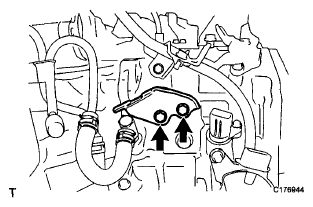

    Fig 6: Locating No. 1 Transmission Control Cable Bracket Bolts
    G06011571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the automatic transaxle with the 5 upper side mounting bolts to the engine.

      Torque: Bolt A

      64 N*m (652 kgf*cm, 47 ft.*lbf)

      Bolt B

      46 N*m (469 kgf*cm, 34 ft.*lbf)

      Bolt C

      46 N*m (469 kgf*cm, 34 ft.*lbf)

      Fig 7: Locating Automatic Transaxle Upper Side Mounting Bolts
      G04976035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 lower side mounting bolts.

      Torque: Bolt D

      44 N*m (448 kgf*cm, 32 ft.*lbf)

  9. INSTALL TRANSFER STIFFENER PLATE RH  (See INSTALLATION )
    Fig 8: Locating Automatic Transaxle Lower Side Mounting Bolts
    G04976036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT
    1. Apply a few drops of adhesive to 2 or 3 threads of the 6 torque converter clutch mounting bolt tips.

      Adhesive:

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent  .

      Fig 9: Applying Adhesive Of Torque Converter Clutch Mounting Bolt
      G04828778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 6 torque converter clutch mounting bolts.

      Torque: 41 N*m (418 kgf*cm, 30 ft.*lbf)

      NOTE: Install the black colored bolt first, and then the silver colored 5 bolts.
    3. Install the flywheel housing under cover.
    Fig 10: Locating Torque Converter Clutch Mounting Bolts
    G05388225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL ENGINE MOUNTING BRACKET LH
    1. Install the mounting bracket with the 3 bolts.

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

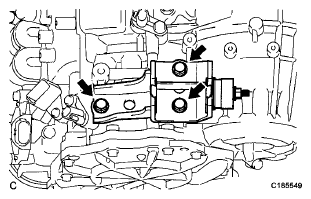

      Fig 11: Locating Engine Mounting Bracket Bolts - LH
      G06043267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL FRONT ENGINE MOUNTING BRACKET
    1. Install the mounting bracket with the 3 bolts.

      Torque: 64 N*m (652 kgf*cm, 47 ft.*lbf)

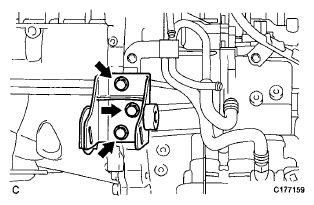

      Fig 12: Locating Front Engine Mounting Bracket Bolts
      G06043266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL REAR ENGINE MOUNTING BRACKET
    1. Install the mounting bracket with the 2 bolts.

      Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

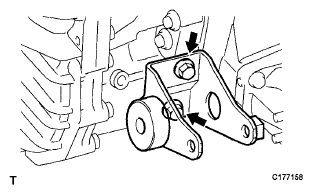

      Fig 13: Locating Rear Engine Mounting Bracket Bolts
      G06043265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. CONNECT WIRE HARNESS
    1. Install the wire harness bracket and transmission control cable support with the 2 bolts.

      Torque: Bolt A

      13 N*m (132 kgf*cm, 10 ft.*lbf)

      Bolt B

      12 N*m (122 kgf*cm, 9 ft.*lbf)

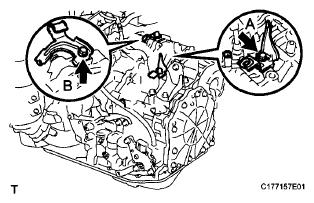

      Fig 14: Locating Transmission Control Cable Support Bolts
      G06043287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 5 wire harness clamps.
    3. Connect the 2 speed sensor connectors.
    4. Connect the transmission wire connector.
    5. Connect the park/neutral position switch connector.
  15. INSTALL STARTER ASSEMBLY  (See INSTALLATION )
  16. TEMPORARILY TIGHTEN FRONT ENGINE MOUNTING INSULATOR  (See INSTALLATION )

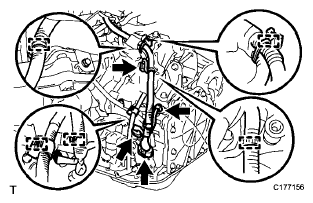

    Fig 15: Locating Park/Neutral Position Switch And Transmission Wire Connectors
    G06043263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. TEMPORARILY TIGHTEN REAR ENGINE MOUNTING INSULATOR  (See INSTALLATION )
  18. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

    HINT:

    See the steps from "Engine Assembly with Transaxle" through "Check Speed Sensor Signal" (See INSTALLATION ).

  19. RESET MEMORY

    HINT:

    Perform RESET MEMORY (AT initialization) when replacing the automatic transaxle assembly (See INITIALIZATION ).
