Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL INTAKE MANIFOLD
    1. Install a new gasket into the intake manifold.

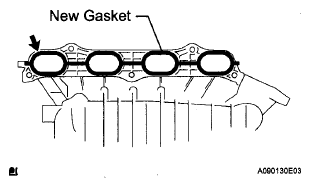

      Fig 1: Identifying Intake Manifold Gasket
      G06042535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the intake manifold with the 5 bolts and 2 nuts.

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

    3. Fit the union to connector tube hose into the vacuum hose clamp.
    4. Install the wire harness clamp.
    5. Connect the camshaft timing oil control valve connector.
    6. Connect the union to connector tube hose to the No. 2 hose to hose tube.

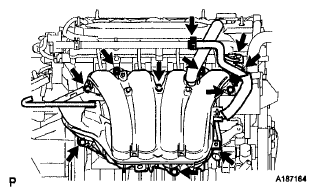

      Fig 2: Locating Intake Manifold Bolts And Nuts
      G06009191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY  (See INSTALLATION )
  3. CONNECT NO. 2 VENTILATION HOSE  (See INSTALLATION )
  4. CONNECT FUEL MAIN TUBE  (See INSTALLATION )
  5. INSTALL THROTTLE BODY ASSEMBLY  (See INSTALLATION )
  6. INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE  (See INSTALLATION )
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  8. ADD ENGINE COOLANT  (See COOLANT )
  9. INSPECT FOR COOLANT LEAK  (See COOLING SYSTEM )
  10. INSPECT FOR FUEL LEAK  (See ON-VEHICLE INSPECTION )
  11. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY  (See INSTALLATION )
  12. INSTALL SUSPENSION TOWER DAMPER ASSEMBLY (w/ Front Strut Bar)  (See INSTALLATION )
  13. INSTALL OUTER COWL TOP PANEL  (See INSTALLATION )
  14. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY  (See INSTALLATION )
  15. INSTALL COWL TOP VENTILATOR LOUVER LH  (See INSTALLATION )
  16. INSTALL COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION )
  17. INSTALL HOOD TO COWL TOP SEAL  (See INSTALLATION )
  18. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  (See INSTALLATION )
  19. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  (See INSTALLATION )
  20. INSTALL FRONT WIPER ARM HEAD CAP  (See INSTALLATION )
