Transfer Case Front Oil Seal: Components

WARNING: This page is about a different variant/trim than selected.

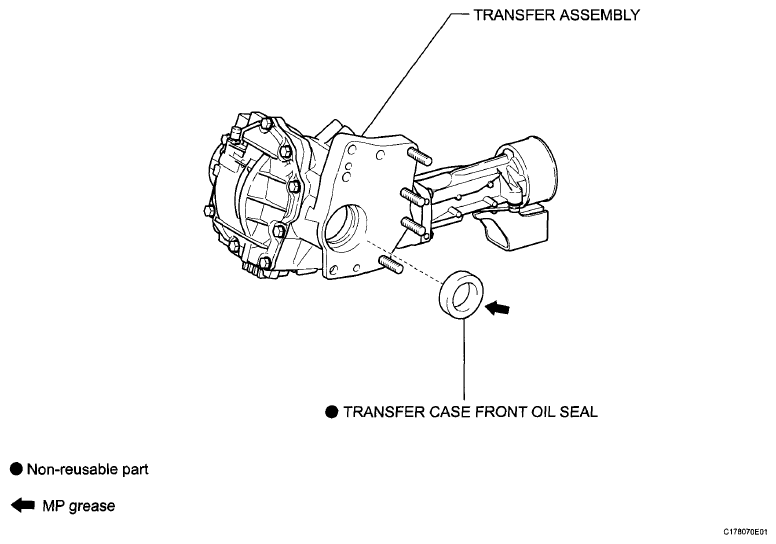

Fig 1: Identifying Transfer Case Front Oil Seal Components
G06045839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
