Back-Up Light Switch: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL BACK-UP LIGHT SWITCH ASSEMBLY
1. Using SST, install the back-up light switch and a new gasket to the transaxle case.
  SST 09817-16011

  Torque: 40 N*m (410 kgf*cm, 30 ft.*lbf)

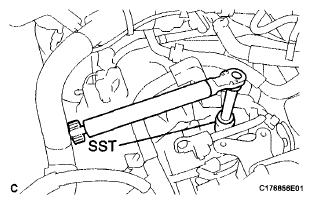

  Fig 1: Installing Back-Up Light Switch And Gasket To Transaxle Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the back-up light switch connector.

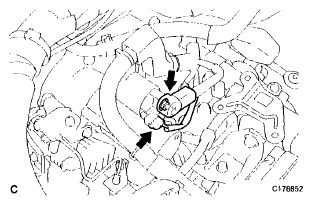

  Fig 2: Locating Back-Up Light Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT WIRE HARNESS
1. Connect the wire harness to the wire harness clamp.

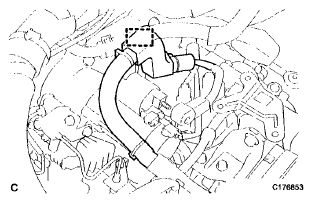

  Fig 3: Identifying Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the terminal 50 connector to the starter assembly.
3. Connect the wire harness to terminal 30 and install the nut. Then, attach the terminal cap.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
INSTALL AIR CLEANER CASE (See INSTALLATION )
INSTALL AIR CLEANER CAP SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )

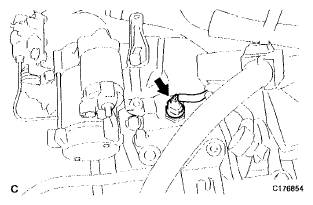

Fig 4: Locating Wire Harness And Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
