Manual Transaxle Assembly: Components

WARNING: This page is about a different variant/trim than selected.

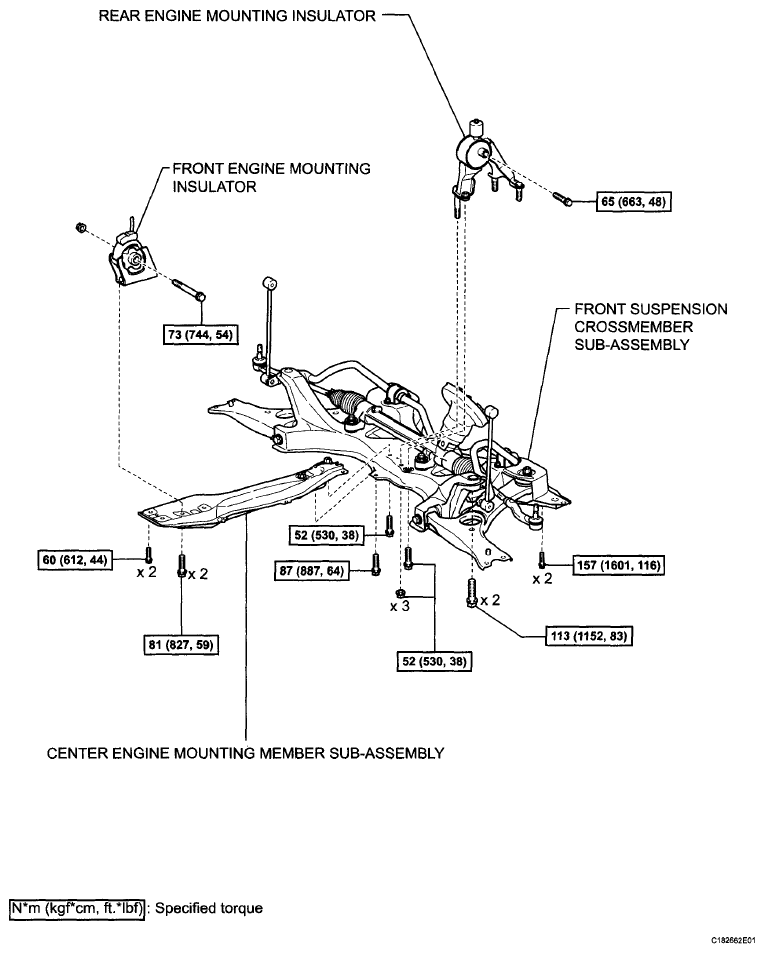

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

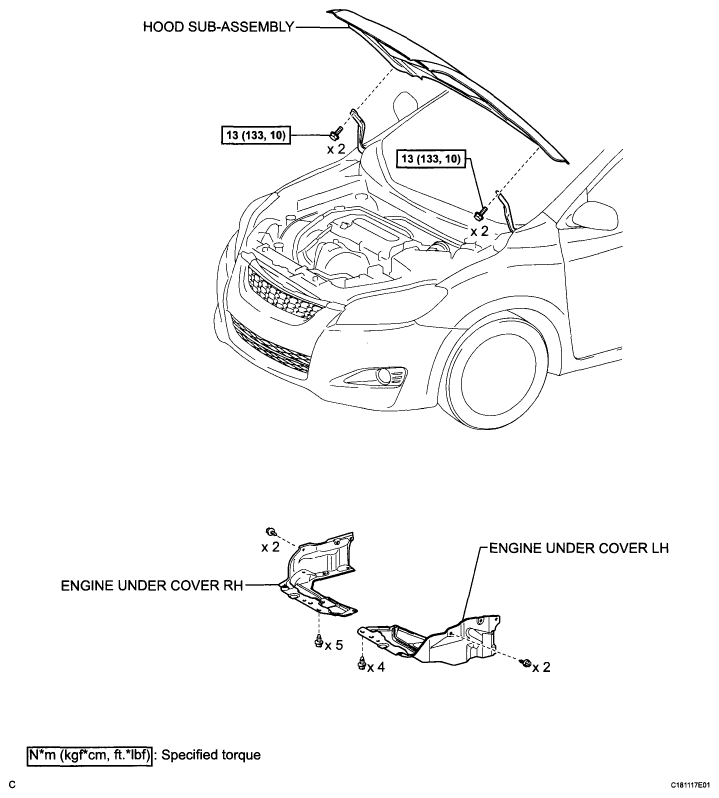

Fig 2: Manual Transaxle Assembly Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

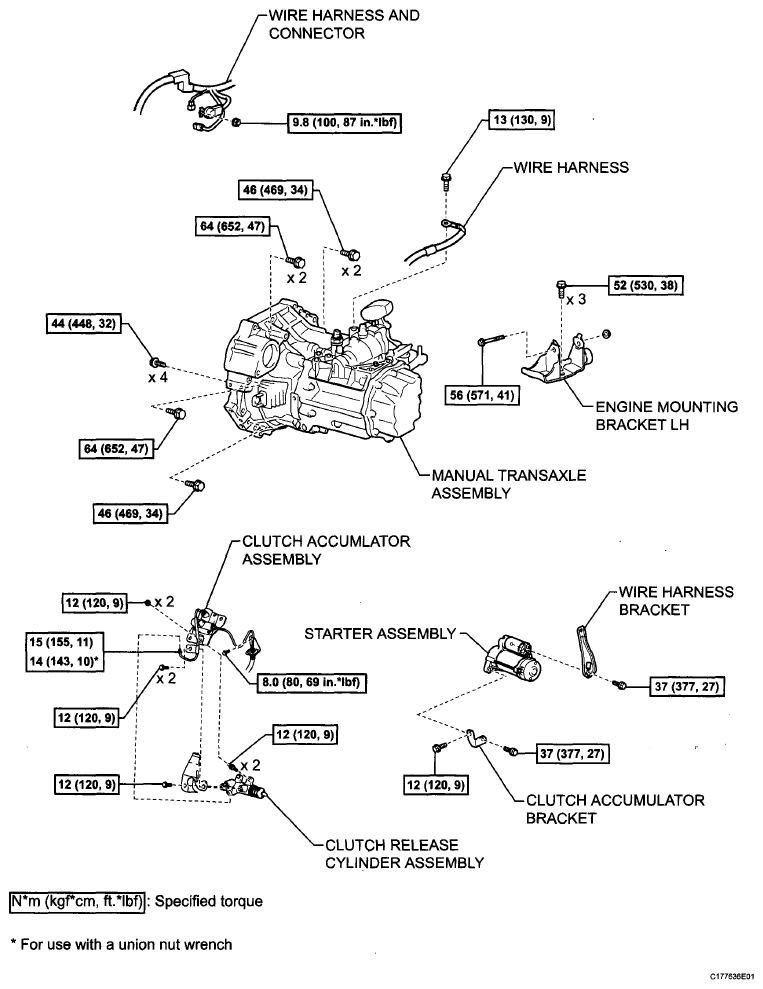

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

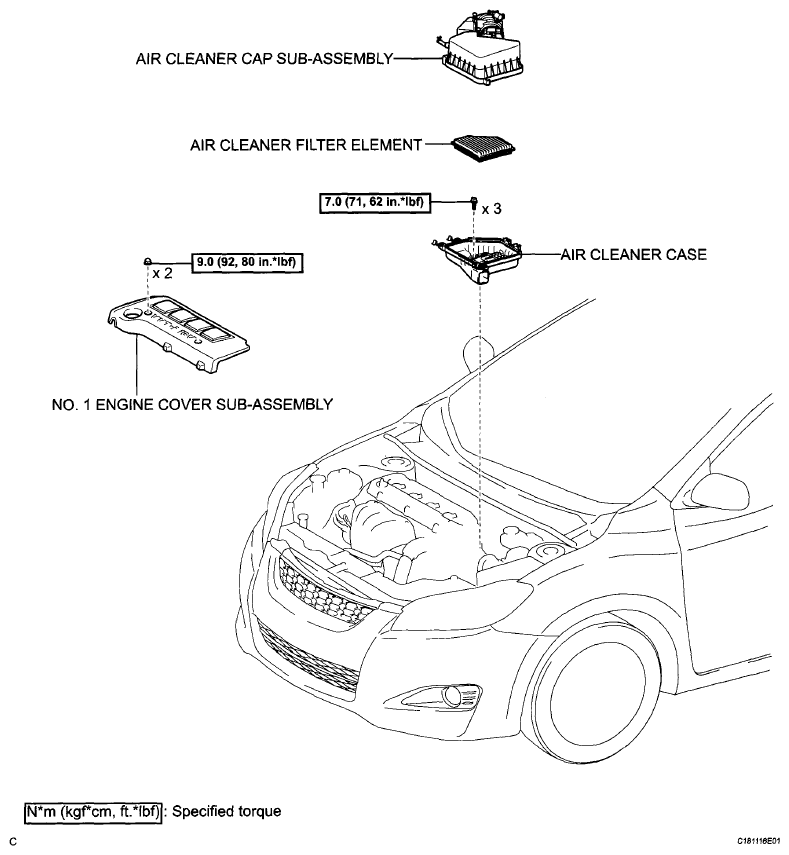

Fig 4: Manual Transaxle Assembly Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

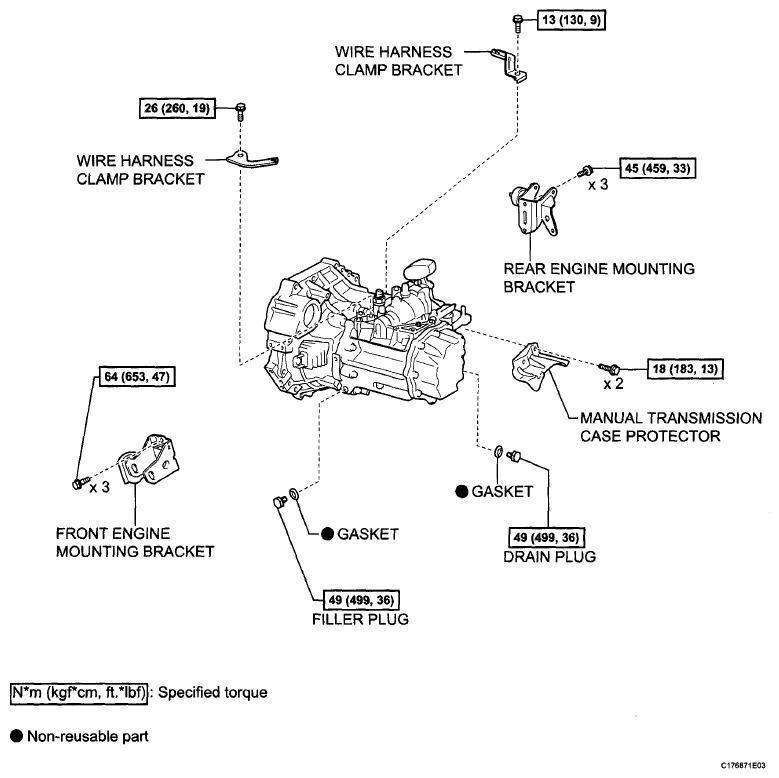

Fig 5: Manual Transaxle Assembly Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Manual Transaxle Assembly Replacement Components With Torque Specifications (6 Of 8)

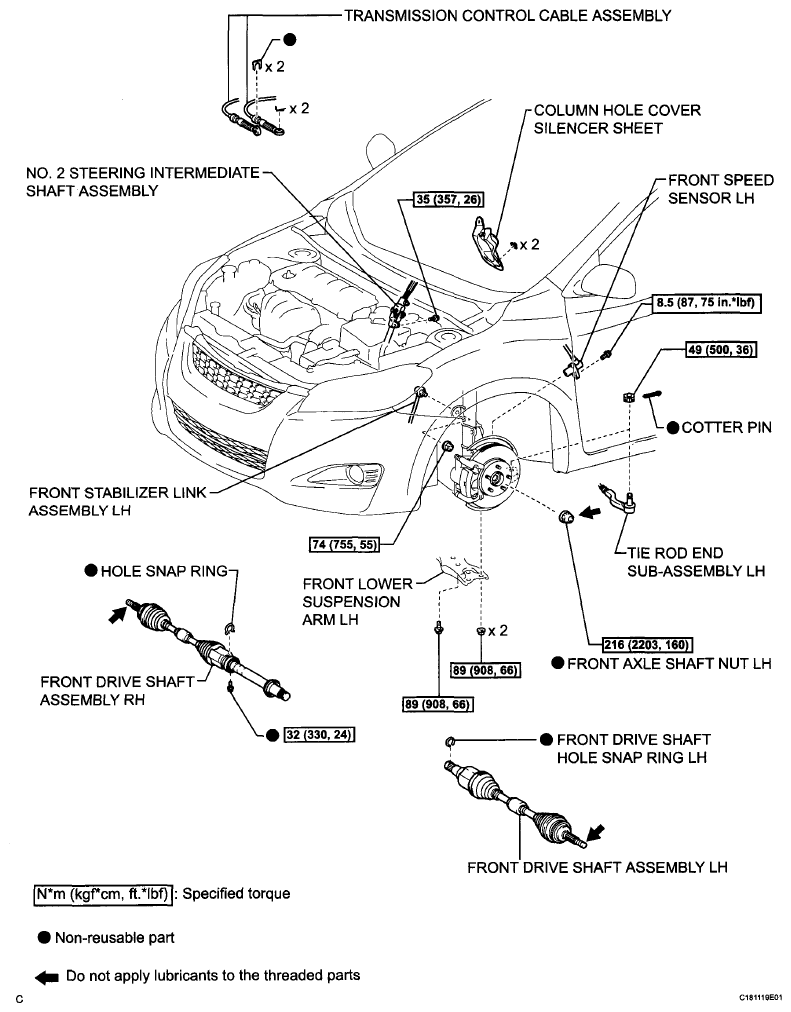

Fig 7: Manual Transaxle Assembly Replacement Components With Torque Specifications (7 Of 8)

Fig 8: Manual Transaxle Assembly Replacement Components With Torque Specifications (8 Of 8)
