Manual Transaxle Unit: Components
WARNING:
This page is about a different variant/trim than selected.

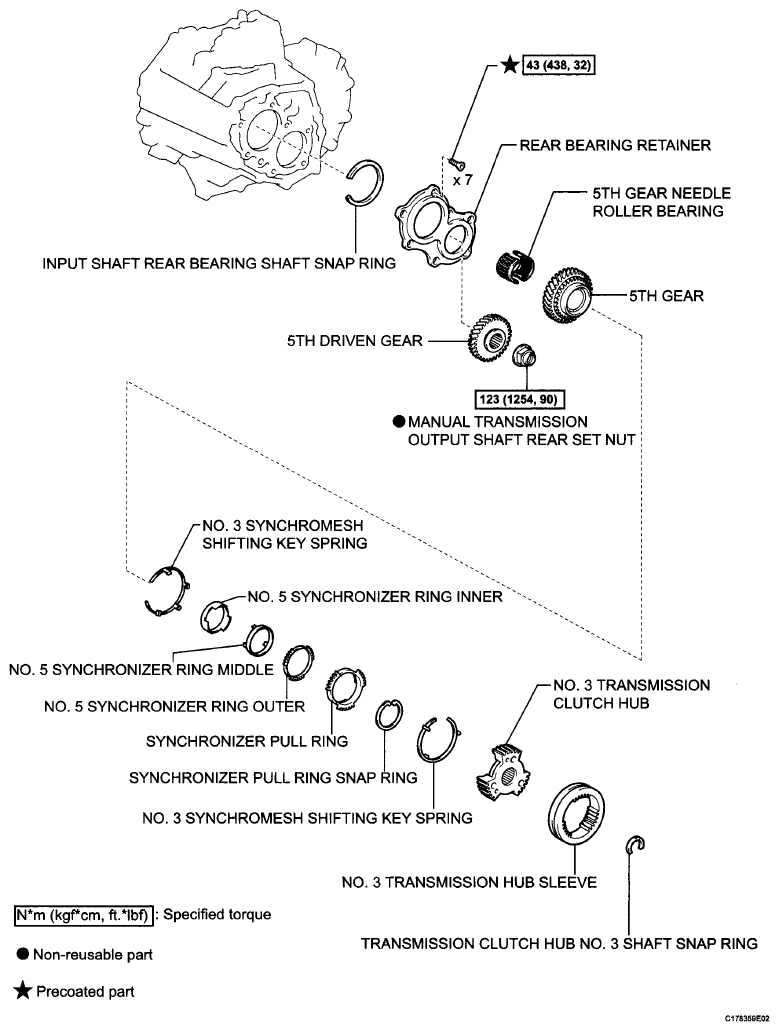

Fig 1: Manual Transaxle Unit Components With Torque Specifications (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

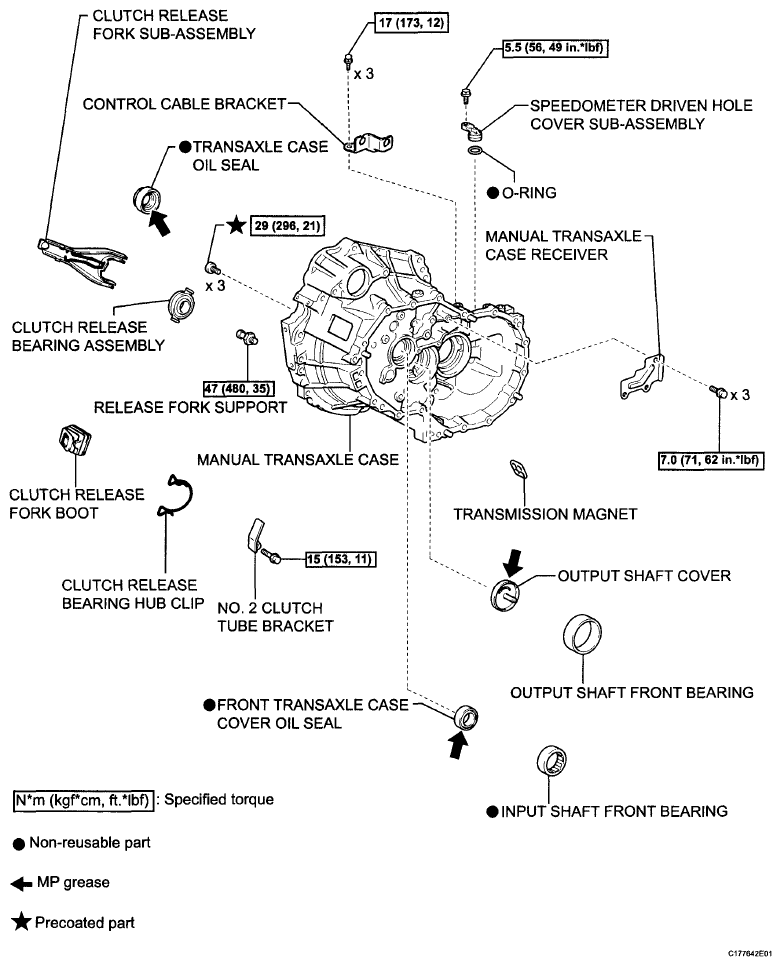

Fig 2: Identifying Manual Transaxle Unit Components (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

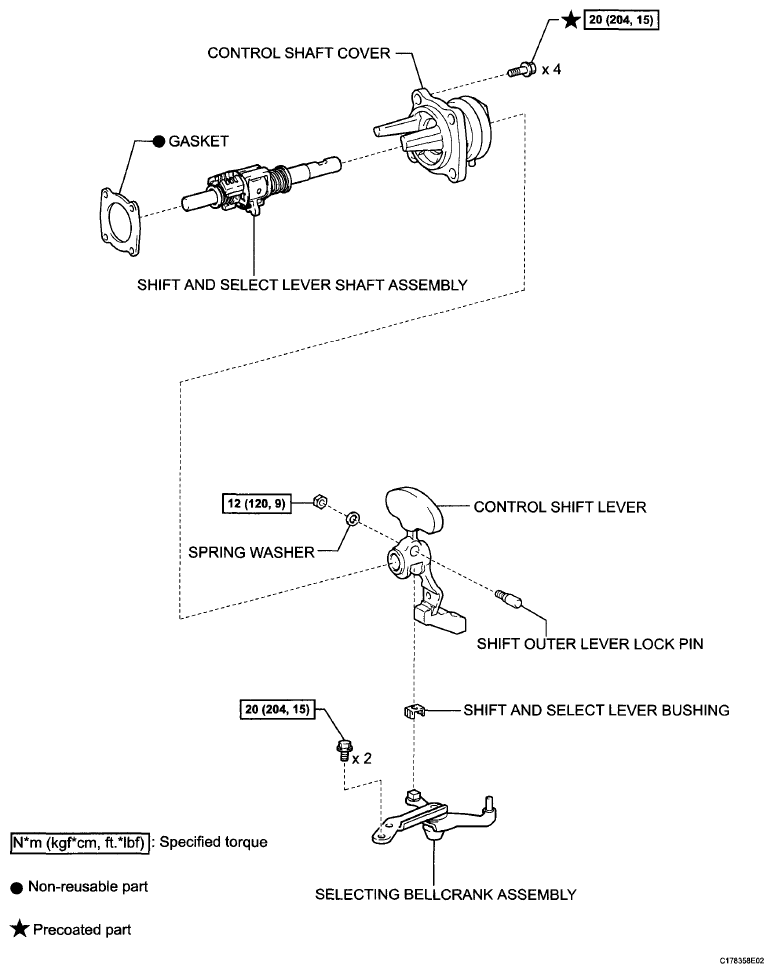

Fig 3: Manual Transaxle Unit Components With Torque Specifications (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

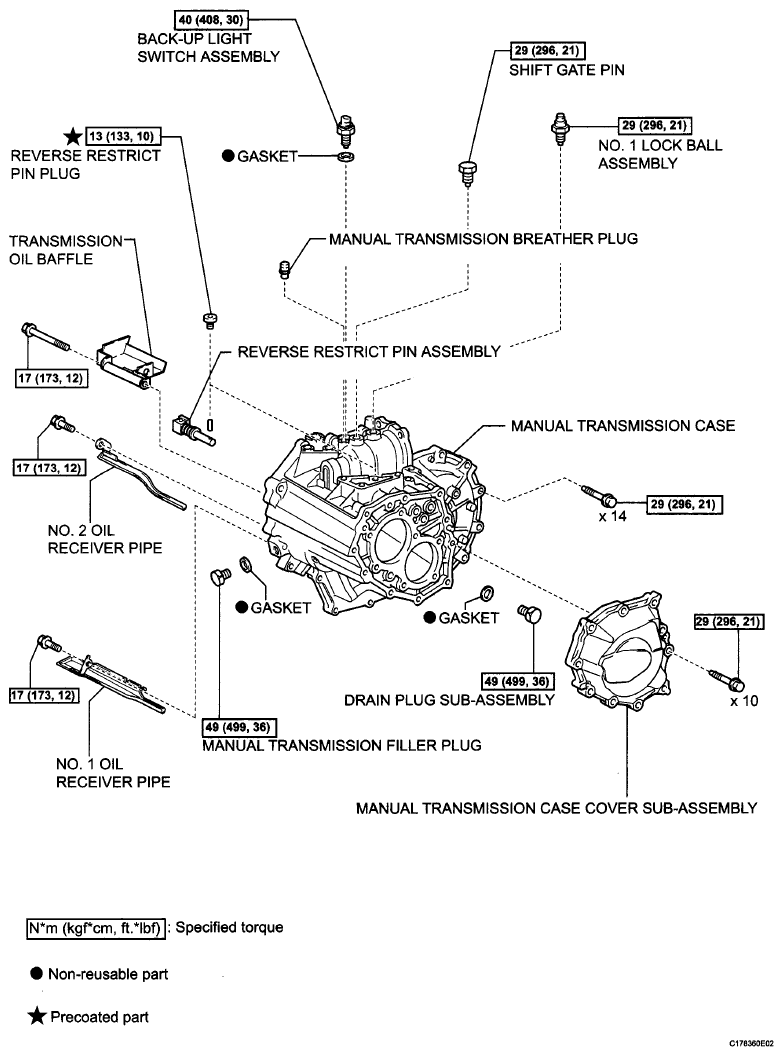

Fig 4: Manual Transaxle Unit Components With Torque Specifications (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

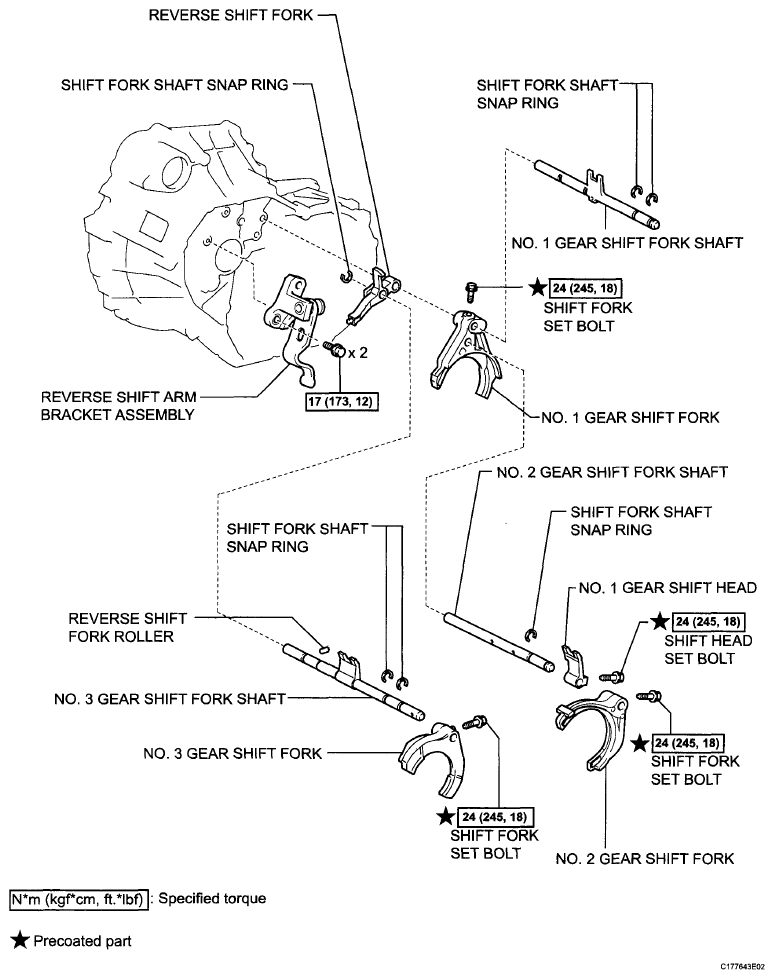

Fig 5: Manual Transaxle Unit Components With Torque Specifications (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

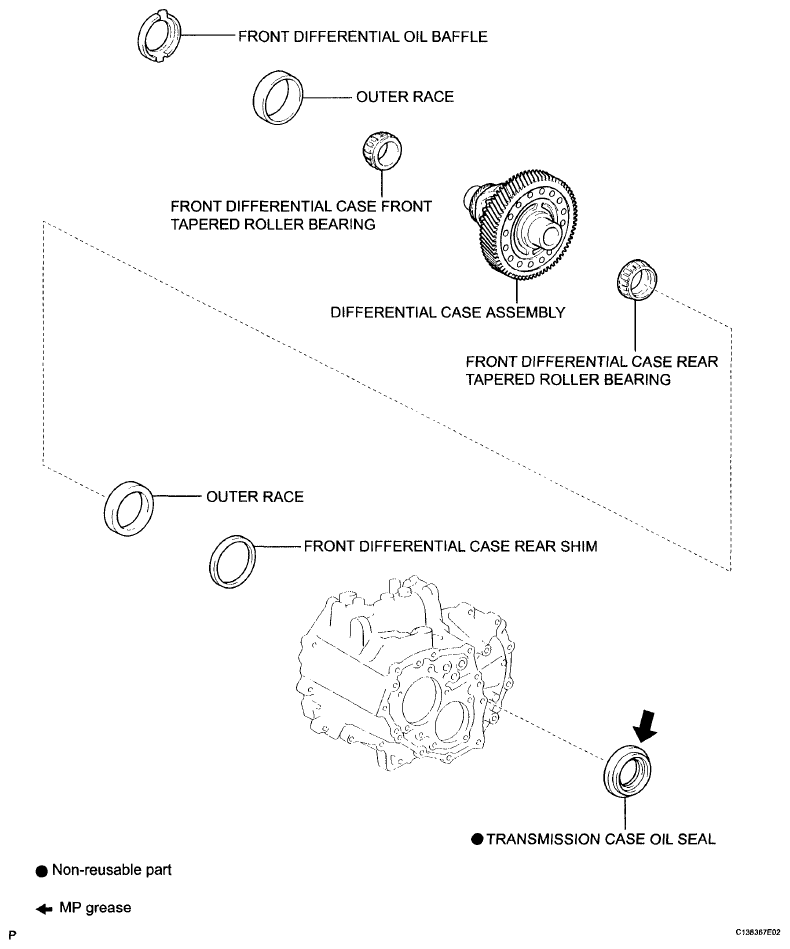

Fig 6: Manual Transaxle Unit Components With Torque Specifications (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

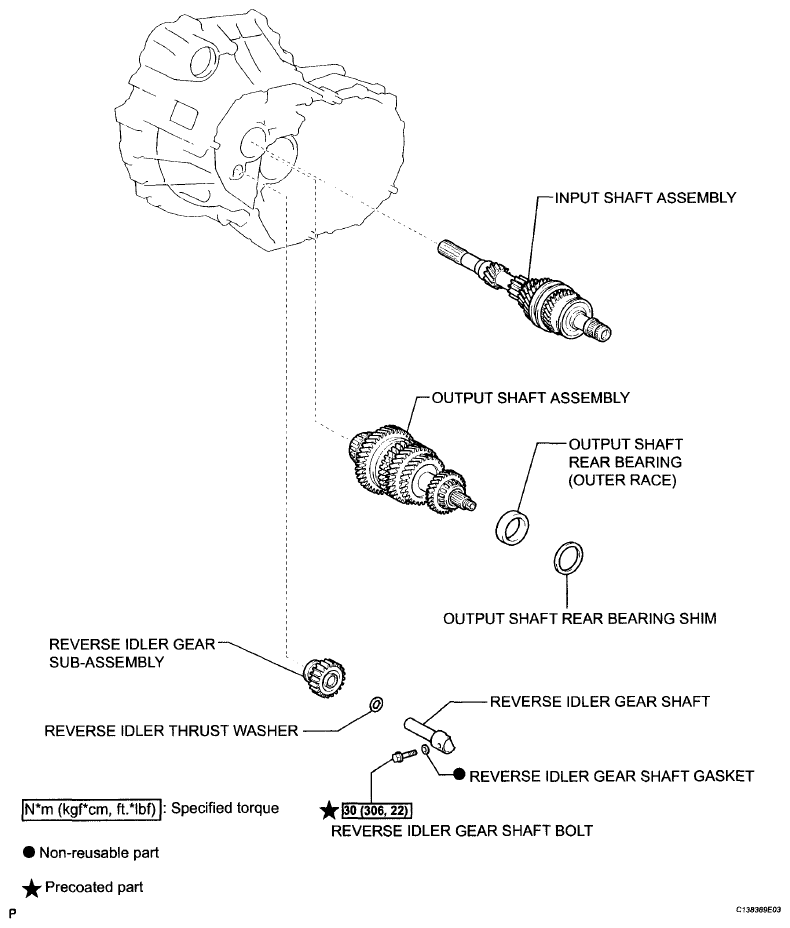

Fig 7: Manual Transaxle Unit Components With Torque Specifications (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
