Shift Lever Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See REMOVAL )
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See REMOVAL )
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (See REMOVAL )
REMOVE FRONT UPPER CONSOLE BOX (See REMOVAL )
REMOVE NO. 2 SWITCH HOLE BASE (See REMOVAL )
REMOVE CONSOLE BOX CARPET
REMOVE FRONT CONSOLE BOX ASSEMBLY (See REMOVAL )
REMOVE FRONT NO. 1 CONSOLE BOX INSERT (See REMOVAL )
REMOVE FRONT NO. 2 CONSOLE BOX INSERT (See REMOVAL )
REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL (See REMOVAL )
DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Disconnect the control select cable from the shift lever assembly.
2. Disconnect the control shift cable from the shift lever assembly.

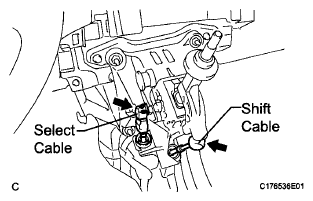

  Fig 1: Locating Control Shift Cable And Control Select Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, pull out the stopper of the transmission control cable.
  NOTE: Do not remove the stopper. If it is removed, reinstall it to its original position.

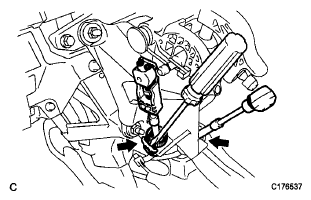

  Fig 2: Pulling Out Stopper Of Transmission Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable from the shift lever retainer.
  NOTE: Do not rotate the nut excessively as it will come off the internal spring and the transmission control cable will not be reusable.

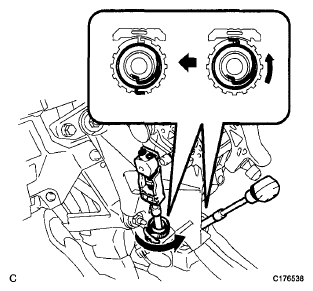

  Fig 3: Rotating Nut Counterclockwise Approximately 180°
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER ASSEMBLY
1. Remove the 4 nuts and the shift lever assembly.

  Fig 4: Locating Shift Lever Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
