Camshaft Position Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY  (See REMOVAL )
  2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE  (See ON-VEHICLE INSPECTION )
  3. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.
    2. Remove the bolt and the camshaft position sensor.

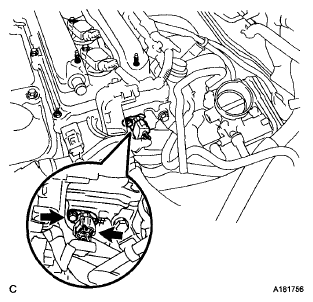

    Fig 1: Locating Camshaft Position Sensor Bolt
    G06007633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
