Heated Oxygen Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE HEATED OXYGEN SENSOR (for 4WD)
    1. Disconnect the heated oxygen sensor connector.
    2. Separate the wire harness grommet.
    3. Using SST, remove the heated oxygen sensor.

      SST 09224-00010

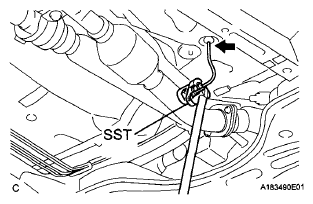

    Fig 1: Locating Heated Oxygen Sensor
    G06040378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE HEATED OXYGEN SENSOR (for 2WD)
    1. Disconnect the heated oxygen sensor connector.
      Fig 2: Locating Heated Oxygen Sensor Connector
      G06007681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the heated oxygen sensor.

      SST 09224-00010

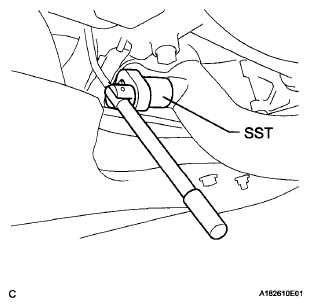

    Fig 3: Removing Heated Oxygen Sensor
    G06007682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
