Ignition Switch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL IGNITION SWITCH ASSEMBLY
    1. Install the ignition switch with the 2 screws.

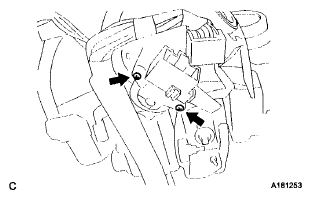

      Fig 1: Locating Ignition Switch Screws
      G06009588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL UPPER STEERING COLUMN COVER  (See INSTALLATION )
  3. INSTALL LOWER STEERING COLUMN COVER  (See INSTALLATION )
  4. ADJUST SPIRAL CABLE  (See INSTALLATION )
  5. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )

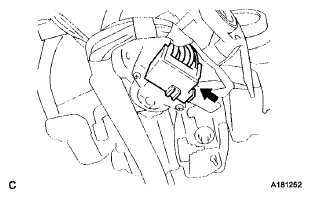

    Fig 2: Locating Ignition Switch Connector
    G06009587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL STEERING PAD  (See INSTALLATION )
  7. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  8. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  9. INSPECT STEERING WHEEL CENTER POINT
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  11. INSPECT STEERING PAD  (See ON-VEHICLE INSPECTION )
  12. CALIBRATE TORQUE SENSOR ZERO POINT

    See CALIBRATION

  13. INSPECT SRS WARNING LIGHT

    See DIAGNOSIS SYSTEM
