How To Determine Bolt Strength
Bolt Type

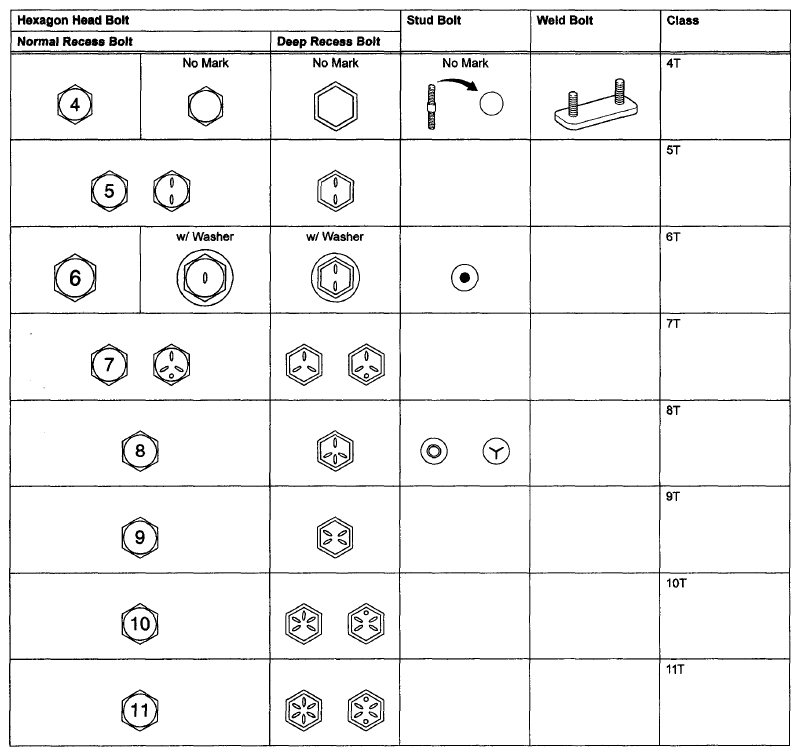

Fig 1: Bolt Classification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
