Air Conditioning Unit: Components

Fig 1: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (1 Of 12)
G06042951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Air Conditioning Unit Components (2 Of 14)
G06037512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Air Conditioning Unit Components (3 Of 14)
G06035793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (4 Of 12)
G06037514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (5 Of 12)
G06037515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (6 Of 12)
G06037516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (7 Of 12)
G06037517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (8 Of 12)
G06037518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (9 Of 12)
G06036382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (10 Of 12)
G06037520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

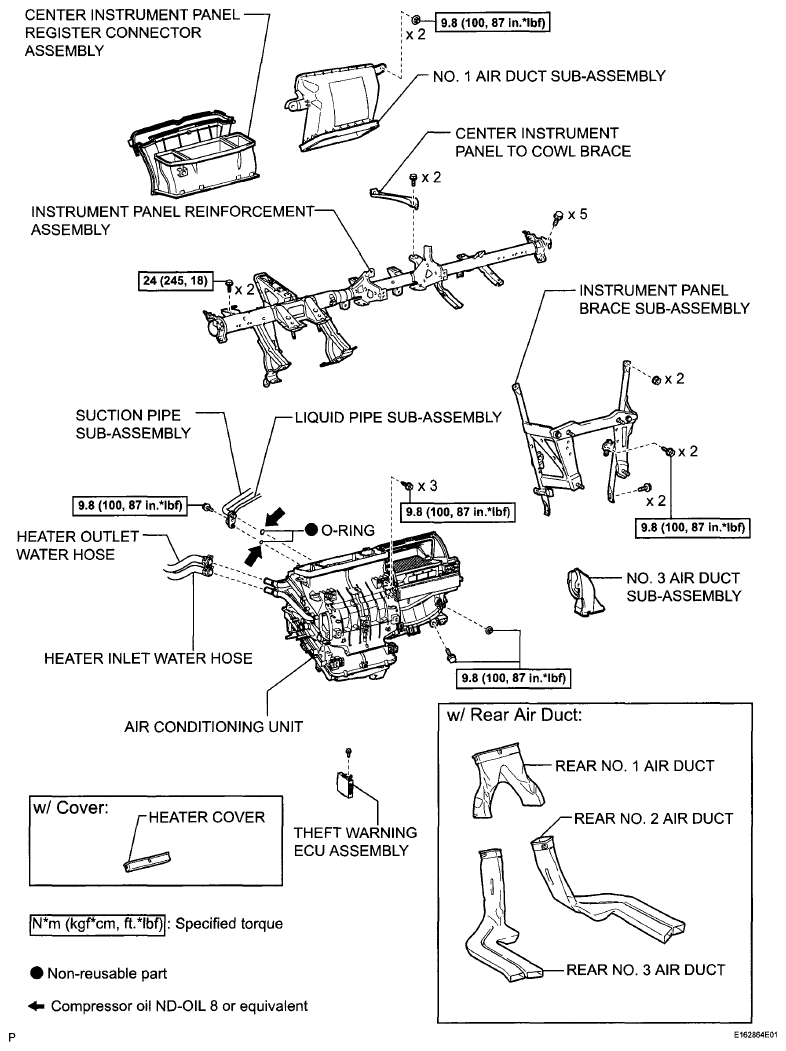

Fig 11: Air Conditioning Unit Replacement Components With Torque Specifications (11 Of 14)
G06037521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

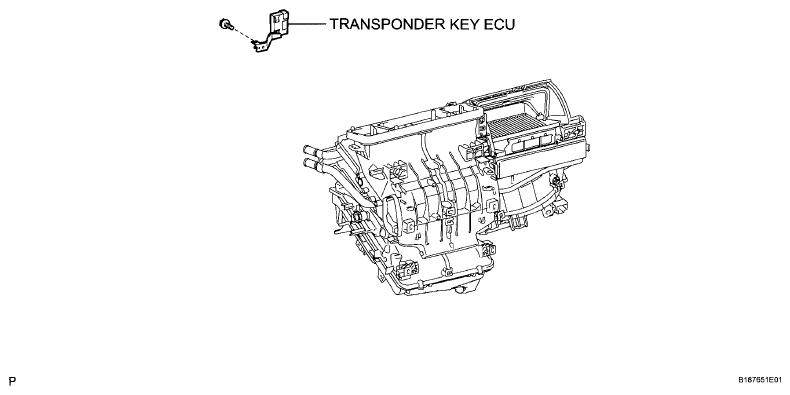

Fig 12: Identifying Air Conditioning Unit Components (12 Of 14)
G06037522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

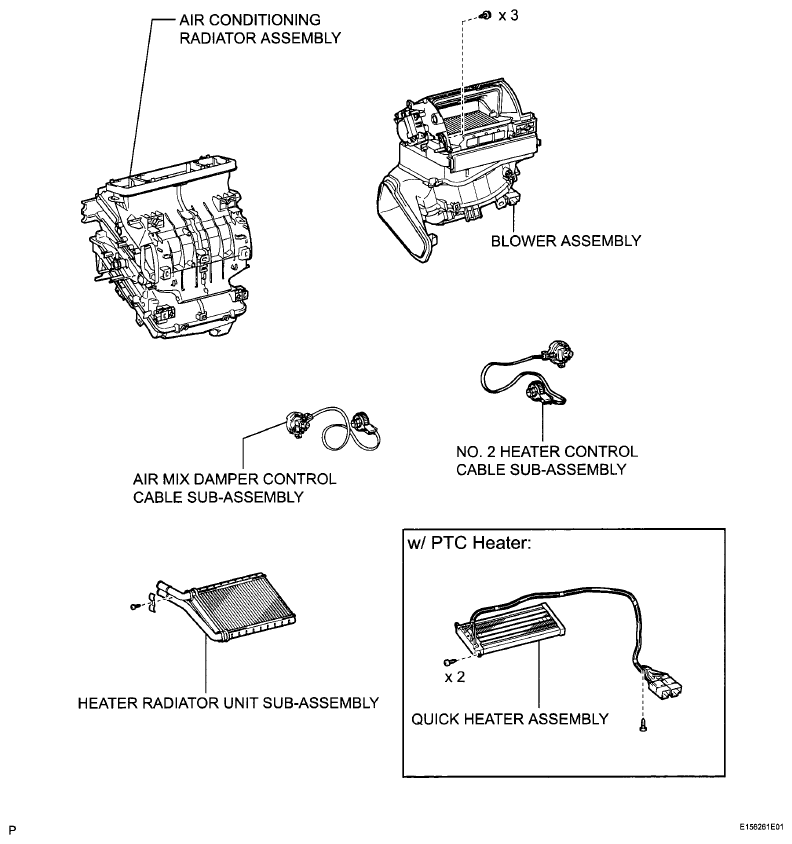

Fig 13: Identifying Air Conditioning Unit Components (13 Of 14)
G06037523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

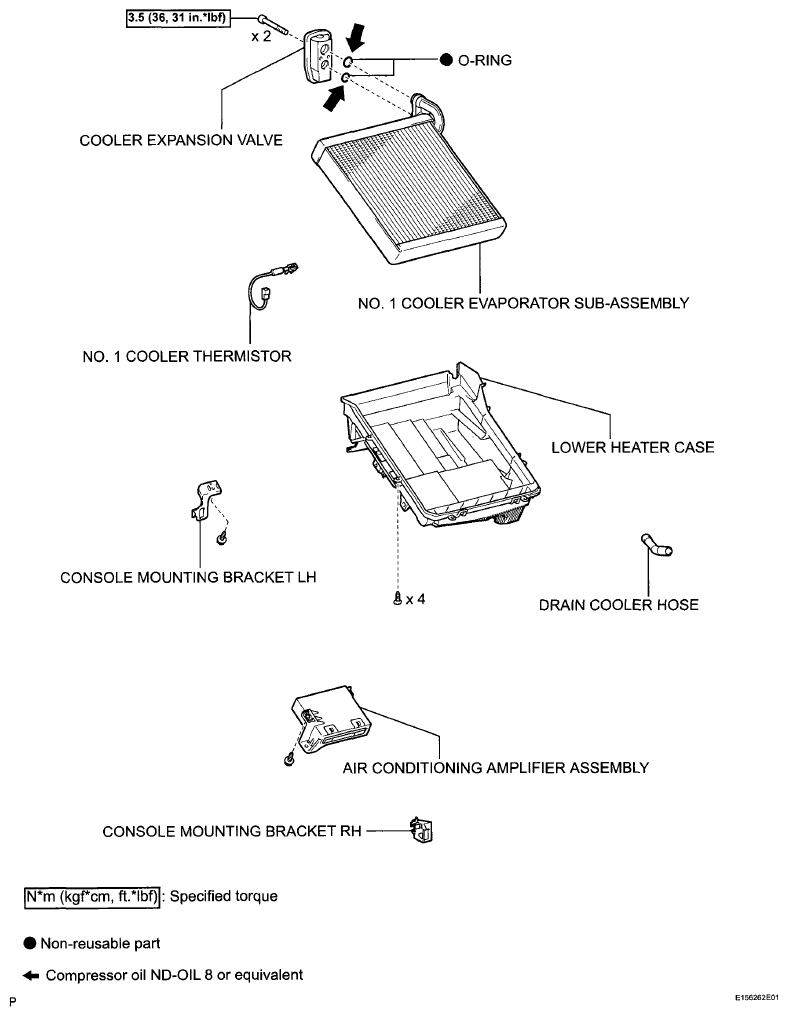

Fig 14: Air Conditioning Unit Replacement Components With Torque Specifications (14 Of 14)
G06037524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
