Ambient Temperature Sensor: Installation

  1. INSTALL AMBIENT TEMPERATURE SENSOR
    1. Engage the clamp to install the ambient temperature sensor.
    2. Connect the connector.
  2. INSTALL FRONT BUMPER ASSEMBLY (w/o Front Spoiler)  (See INSTALLATION )
  3. INSTALL FRONT BUMPER ASSEMBLY (w/ Front Spoiler)  (See INSTALLATION )

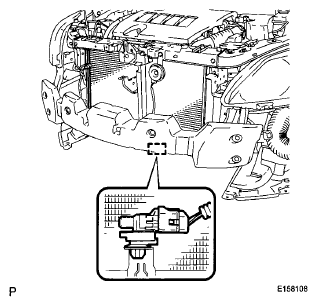

    Fig 1: Identifying Ambient Temperature Sensor Clamp
    G06037722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light)  (See ADJUSTMENT )
  5. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light)  (See ADJUSTMENT )
  6. INSPECT FOG LIGHT AIMING (w/ Fog Light)  (See ADJUSTMENT )
  7. ADJUST FOG LIGHT AIMING (w/ Fog Light)  (See ADJUSTMENT )
