Blower Unit: Components

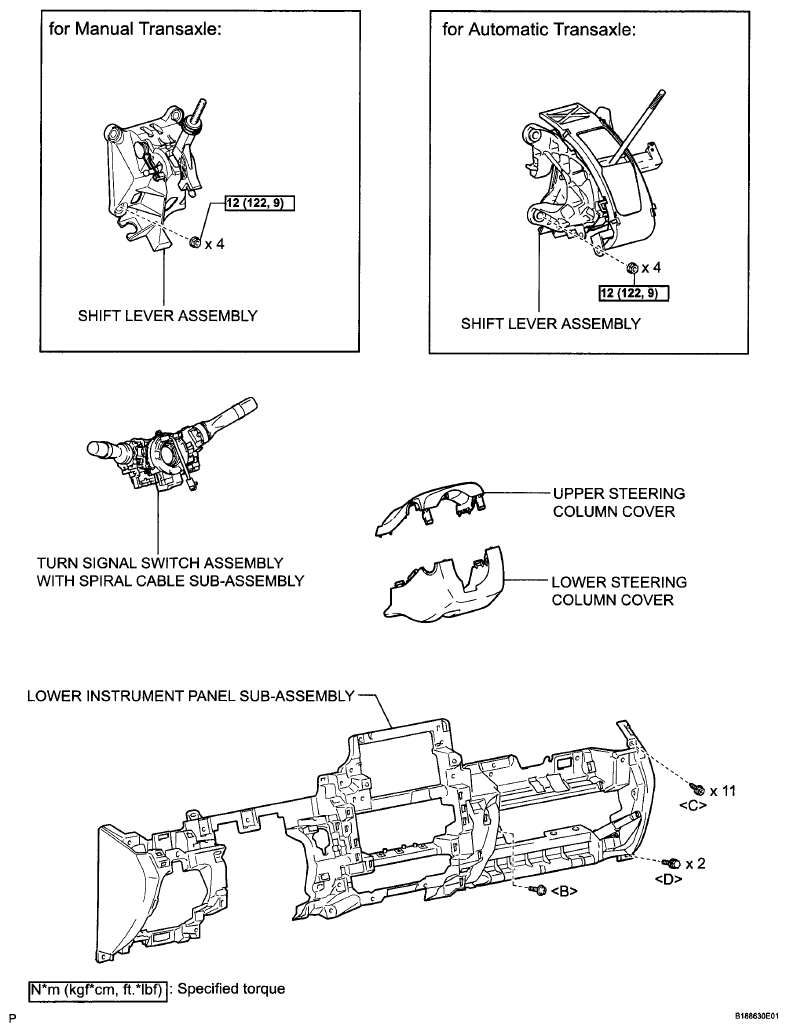

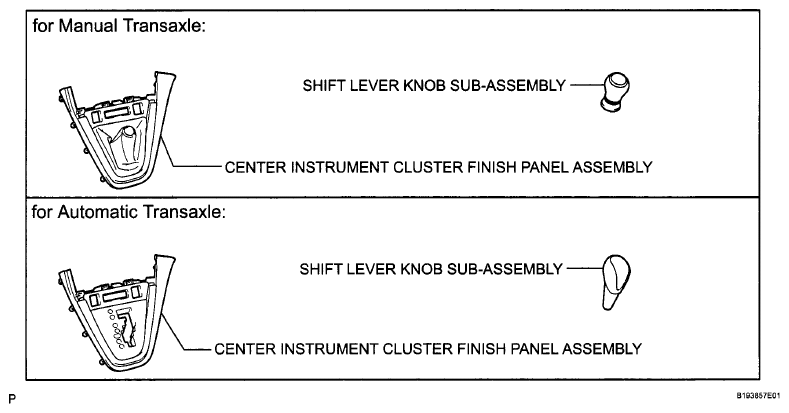

Fig 1: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

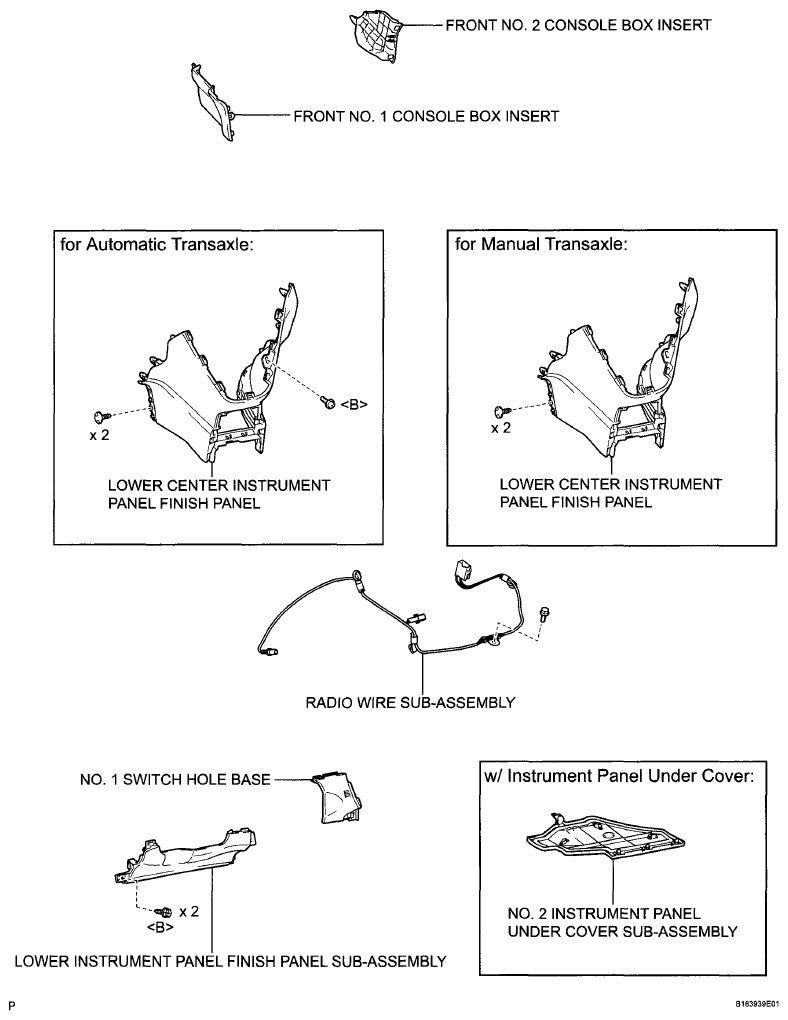

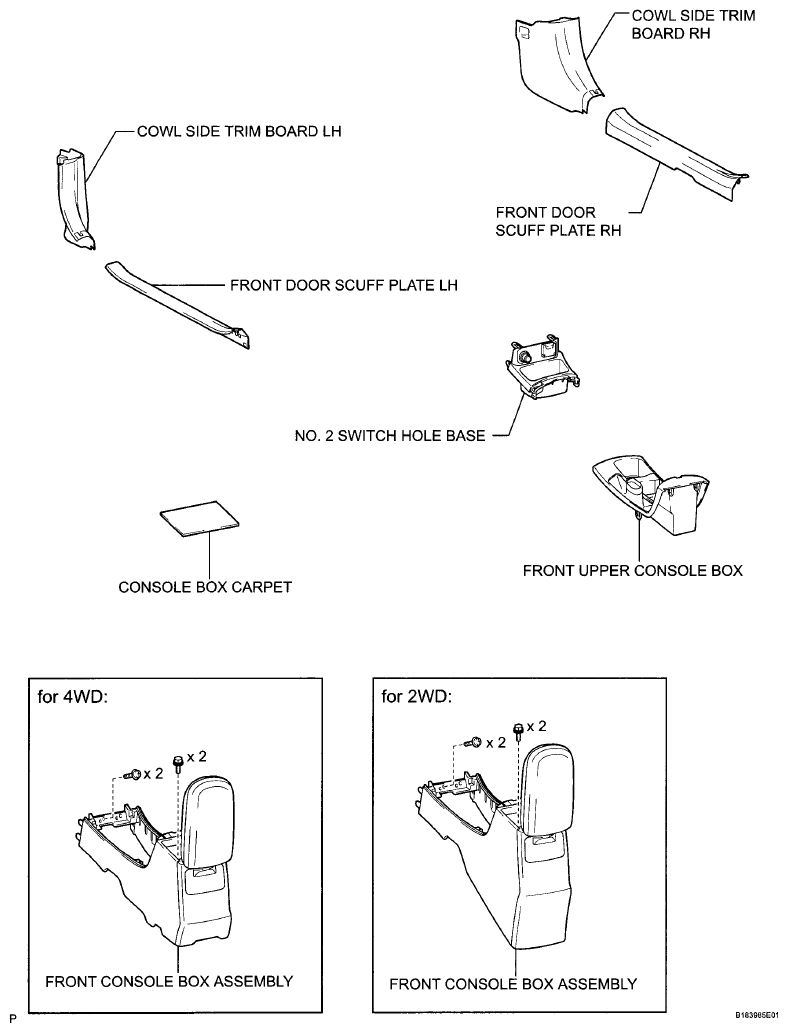

Fig 2: Identifying Blower Unit Components (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

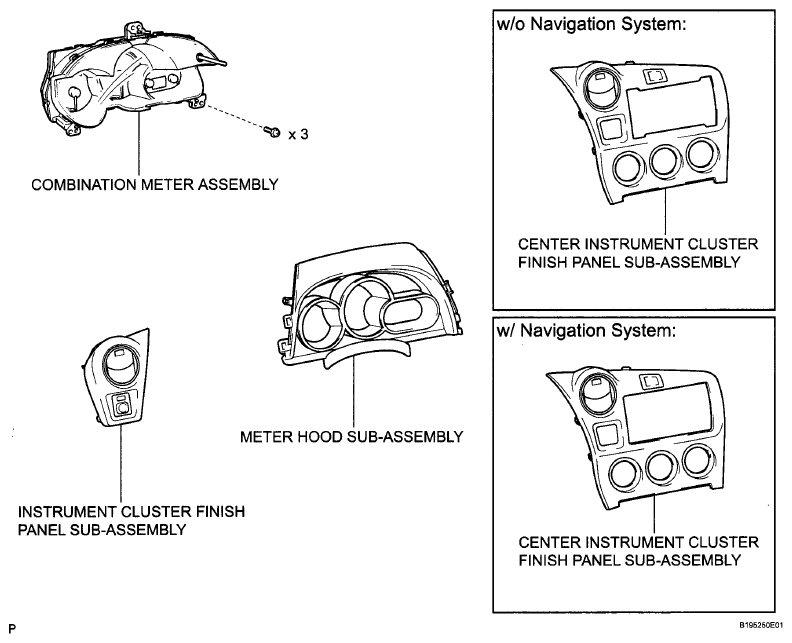

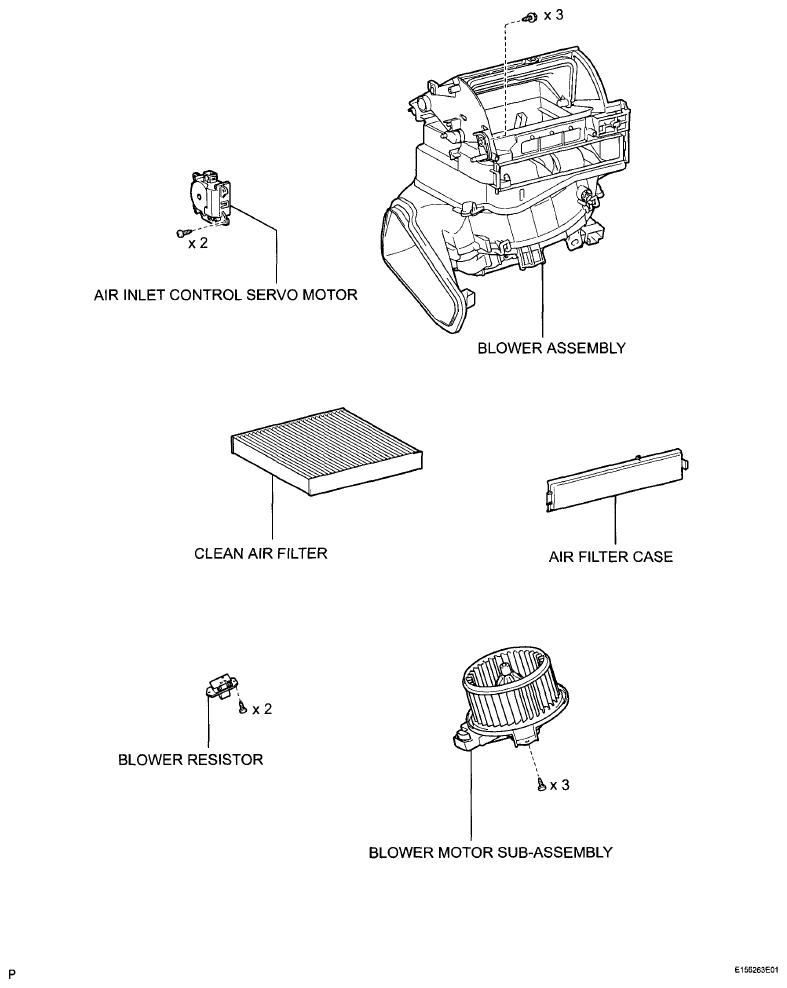

Fig 3: Identifying Blower Unit Components (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

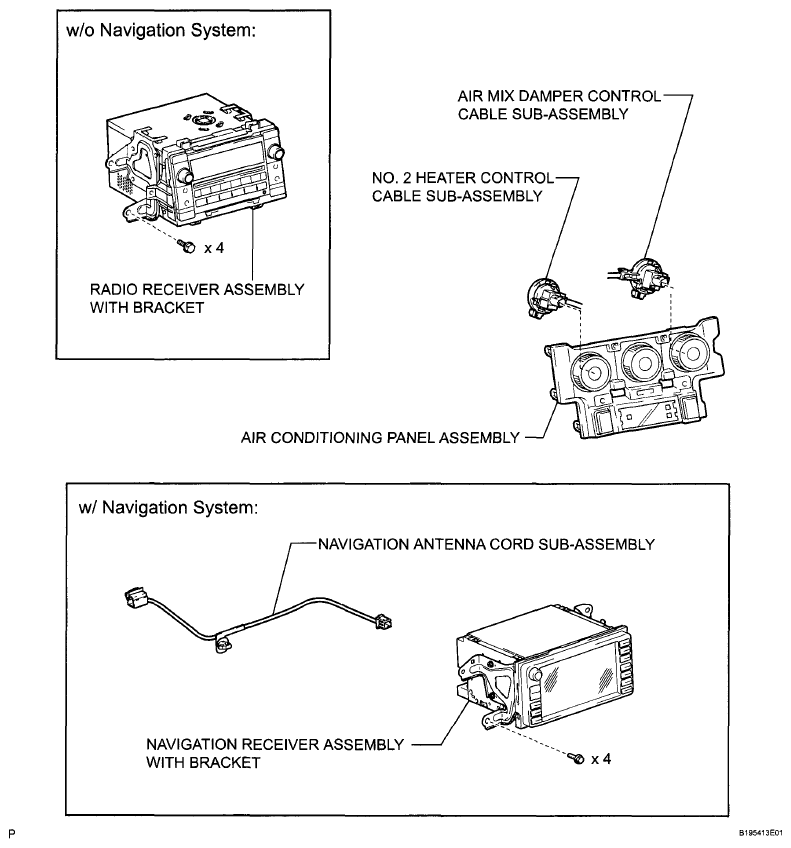

Fig 5: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

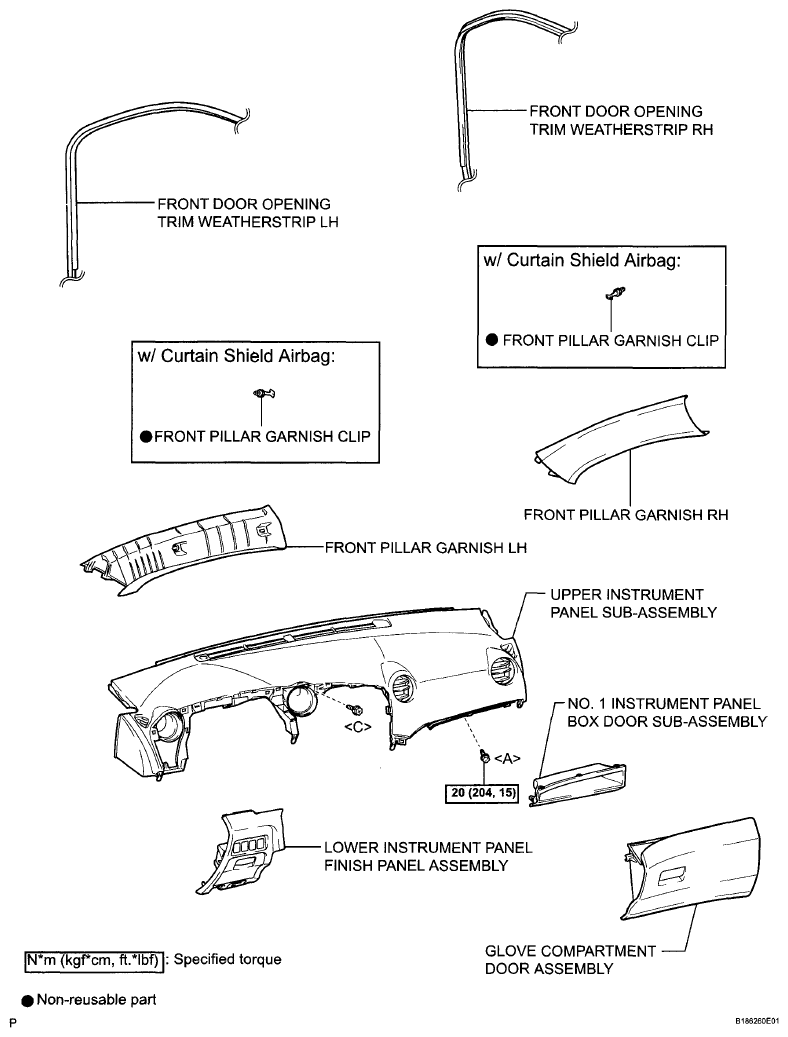

Fig 6: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

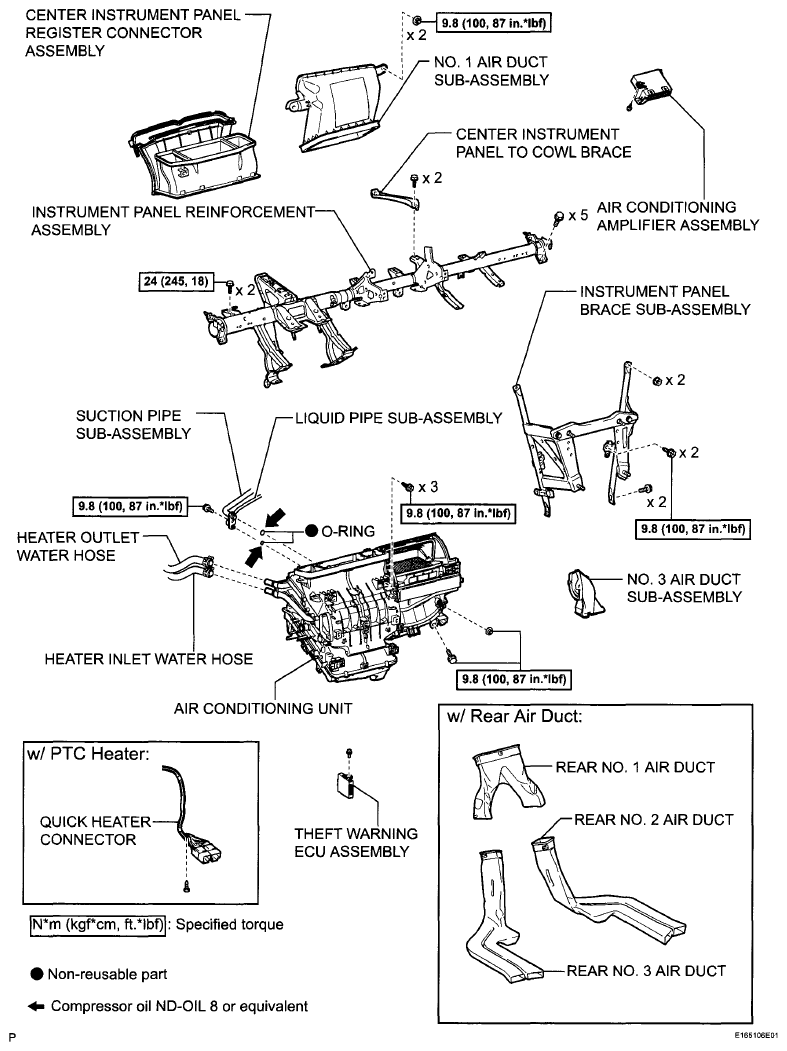

Fig 7: Air Inlet Control Servo Motor Replacement Components With Torque Specifications (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (9 Of 12)

Fig 10: Blower Unit Components With Torque Specifications (10 Of 12)

Fig 11: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (11 Of 12)

Fig 12: Blower Unit Components With Torque Specifications (12 Of 12)
