EPS Warning Light Circuit: Wiring Diagram

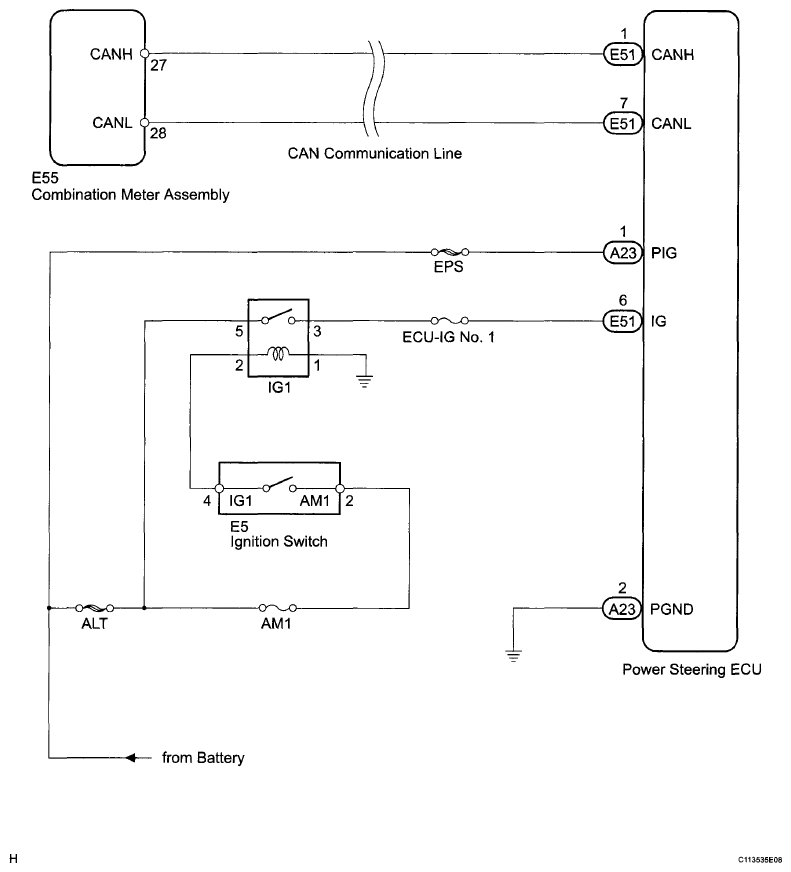

Fig 1: EPS Warning Light Circuit - Wiring Diagram
G06035522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
