Back-Up Light Switch: Installation

INSTALL BACK-UP LIGHT SWITCH ASSEMBLY
1. Using SST, install the back-up light switch and a new gasket to the transaxle case.
  SST 09817-16011

  Torque: 40 N*m (410 kgf*cm, 30 ft.*lbf)

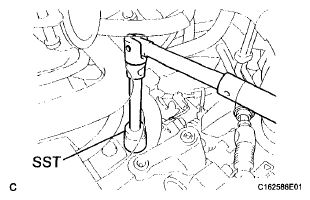

  Fig 1: Installing Back-Up Light Switch And Gasket To Transaxle Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 clamps.
  NOTE: Be sure to use boss B.
3. Connect the back-up light switch connector.

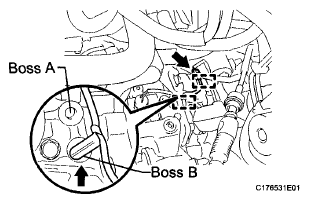

  Fig 2: Locating Back-Up Light Switch Connector And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION CONTROL SHIFT CABLE
1. Connect the transmission control shift cable with the clip*1.
2. Connect the transmission control shift cable with a new clip*2.
INSTALL AIR CLEANER CASE (See INSTALLATION )
INSTALL AIR CLEANER CAP SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 2 CYLINDER HEAD COVER (See INSTALLATION )

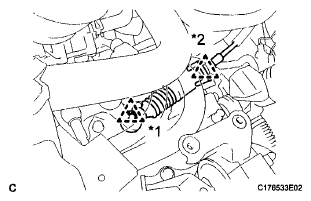

Fig 3: Identifying Transmission Control Shift Cable Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
