Manual Transaxle Assembly: Components

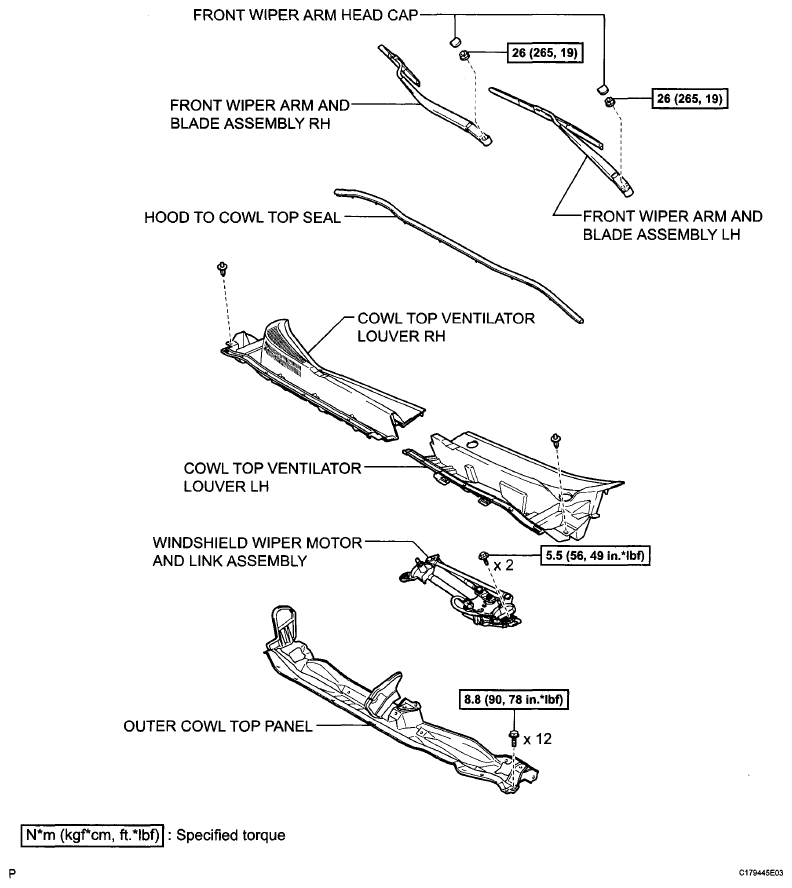

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications (1 Of 6)
G06045078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

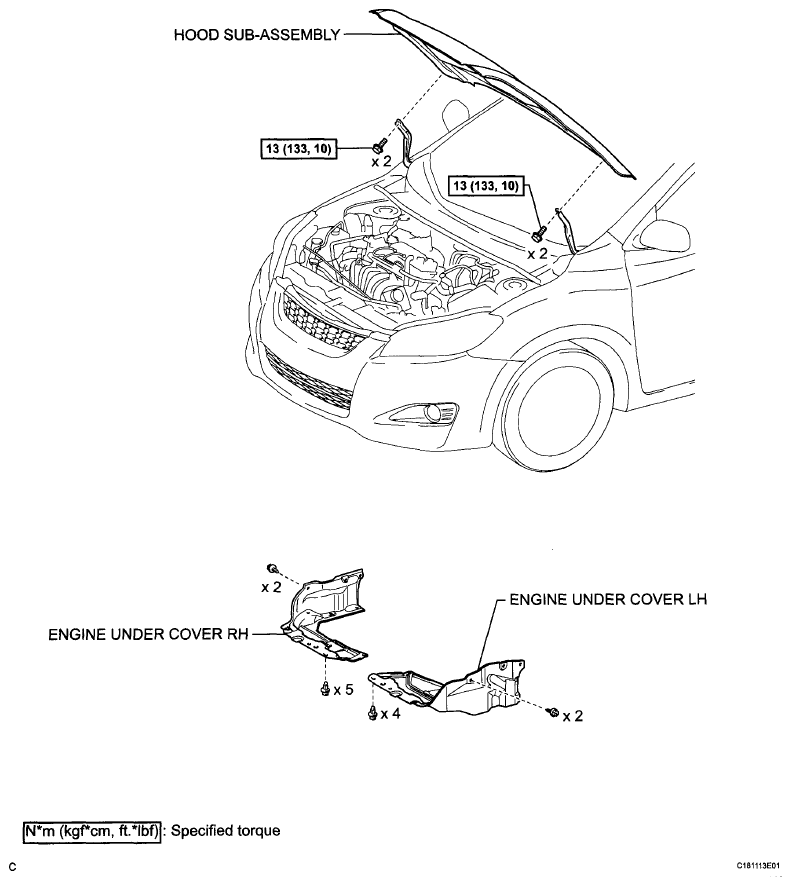

Fig 2: Manual Transaxle Assembly Replacement Components With Torque Specifications (2 Of 6)
G06045079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Manual Transaxle Assembly Replacement Components With Torque Specifications (3 Of 6)
G06045036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

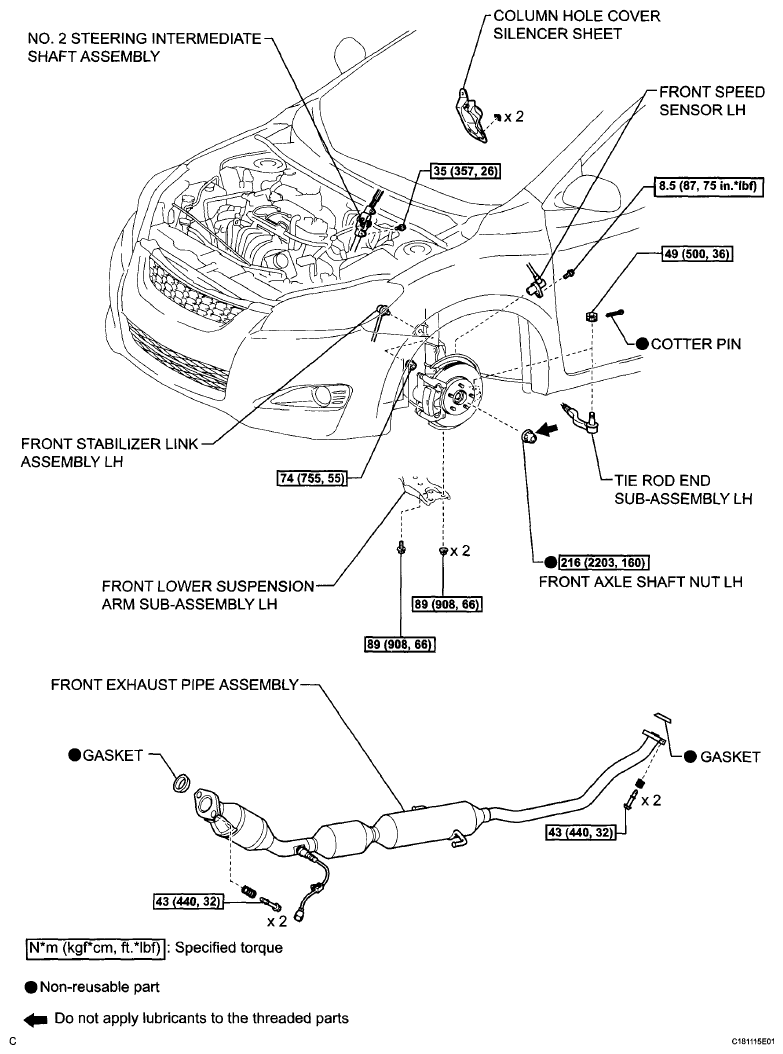

Fig 4: Manual Transaxle Assembly Replacement Components With Torque Specifications (4 Of 6)
G06045081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Manual Transaxle Assembly Replacement Components With Torque Specifications (5 Of 6)

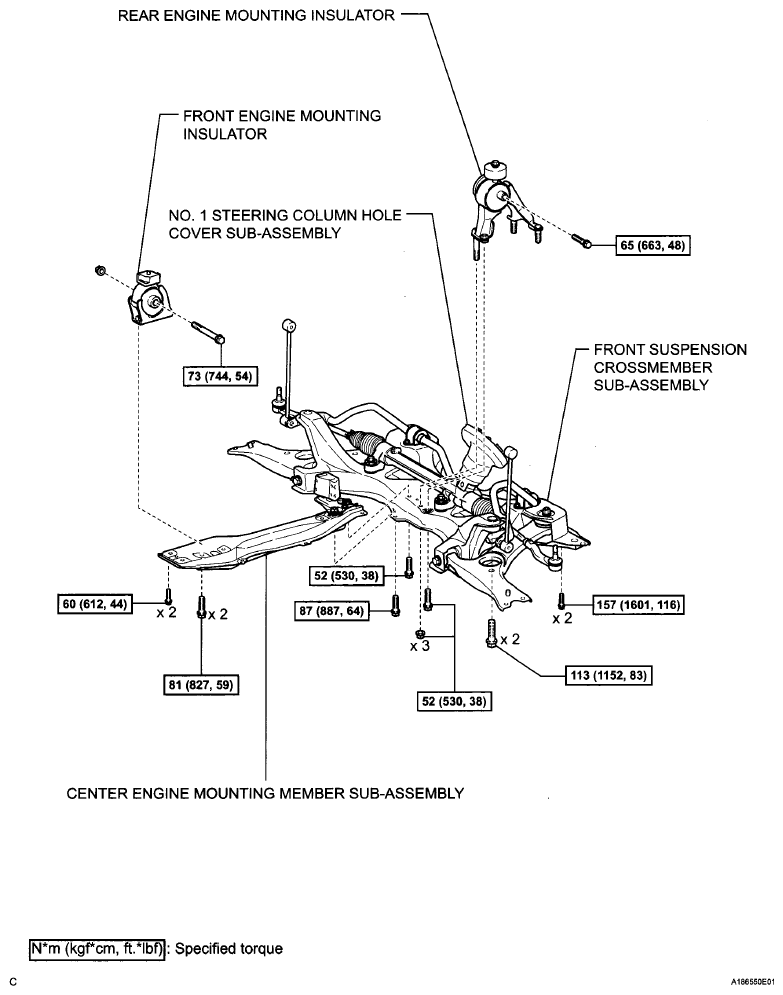

G06041447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

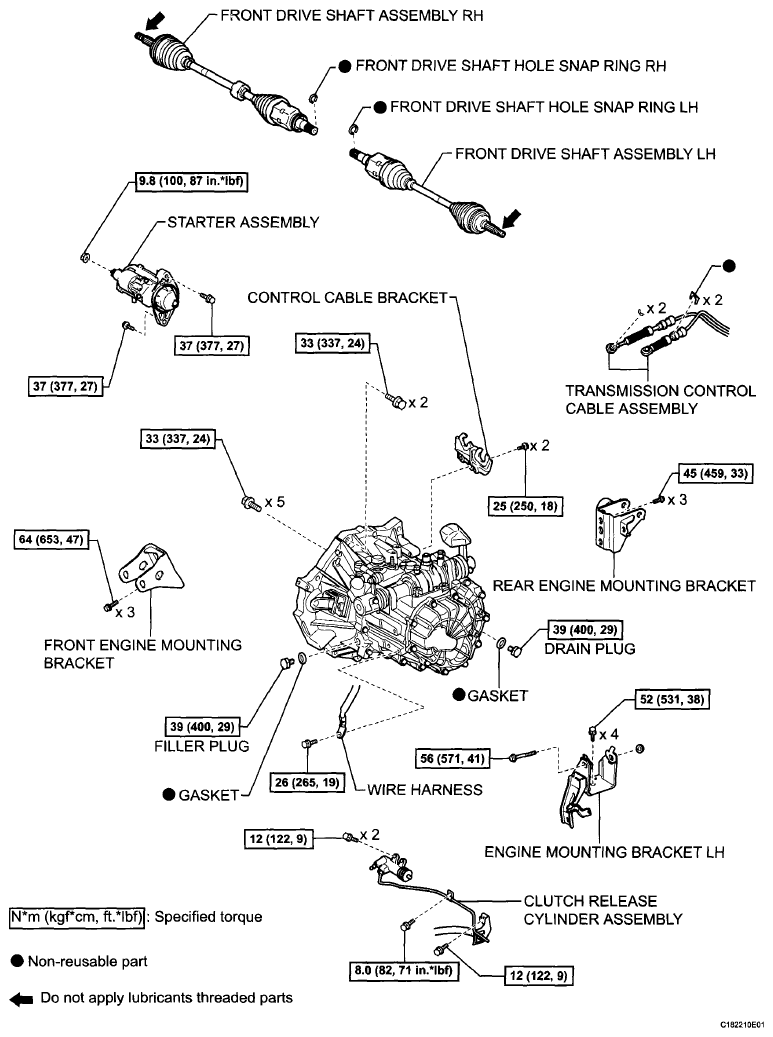

Fig 6: Manual Transaxle Assembly Replacement Components With Torque Specifications (6 Of 6)
G06045083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
