Manual Transaxle Unit: Disassembly

  1. REMOVE MANUAL TRANSMISSION FILLER PLUG
    1. Remove the manual transmission filler plug and gasket from the manual transmission case.
      Fig 1: Identifying Manual Transmission Filler Plug And Gasket
      G04831683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE DRAIN PLUG SUB-ASSEMBLY
    1. Remove the drain plug sub-assembly and gasket from the manual transmission case.
      Fig 2: Identifying Drain Plug Sub-Assembly And Gasket
      G04831684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
    1. Remove the bolt and speedometer driven hole cover sub-assembly from the transaxle case.
    2. Remove the O-ring from the speedometer driven hole cover sub-assembly.
      Fig 3: Identifying Bolt And Speedometer Driven Hole Cover Sub-Assembly
      G06012731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY
    1. Separate the back-up light switch wire harness from the 2 clamps.
    2. Using SST, remove the back-up light switch assembly and gasket from the manual transmission case.

      SST 09817-16011

      Fig 4: Removing Back-Up Light Switch Assembly And Gasket From Manual Transmission Case
      G06012732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SELECTING BELLCRANK ASSEMBLY
    1. Remove the 2 bolts, nut and selecting bellcrank assembly from the manual transmission case.
    2. Remove the control bellcrank dust cover.
      Fig 5: Locating Selecting Bellcrank Assembly Bolts And Nut
      G04831686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FLOOR SHIFT CONTROL SHIFT LEVER
    1. Remove the nut and washer.
      Fig 6: Locating Floor Shift Control Shift Lever Nut And Washer
      G04831687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a brass bar and a hammer, remove the lock pin.
    3. Remove the floor shift control shift lever and dust boot.
      Fig 7: Removing Lock Pin
      G04831688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SHIFT LEVER DAMPER
    1. Remove the nut and washer.
      Fig 8: Locating Shift Lever Damper Nut And Washer
      G06012736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

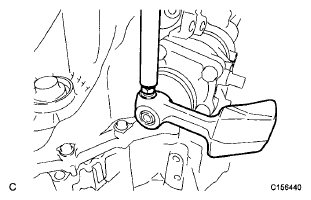

    2. Using a brass bar and a hammer, remove the lock pin.
    3. Remove the shift lever damper and dust boot.
      Fig 9: Removing Lock Pin
      G06045120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. PREPARE MANUAL TRANSAXLE ASSEMBLY

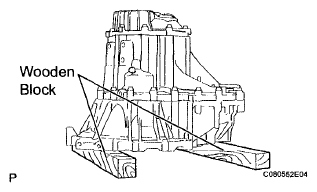

    1. Place the manual transaxle assembly on wooden blocks.
      Fig 10: Placing Manual Transaxle Assembly On Wooden Blocks
      G06012738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 LOCK BALL ASSEMBLY
    1. Remove the No. 1 lock ball assembly from the manual transmission case.
      Fig 11: Locating No. 1 Lock Ball Assembly
      G04831692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE SHIFT GUIDE PIN
    1. Remove the shift guide pin and washer from the manual transmission case.
      Fig 12: Locating Shift Guide Pin And Washer
      G04831693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE CONTROL SHAFT COVER
    1. Remove the 4 bolts, control shaft cover and gasket from the manual transmission case.
      Fig 13: Locating Bolts, Control Shaft Cover And Gasket
      G04831694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CONTROL SHAFT COVER OIL SEAL
    1. Using a screwdriver, remove the control shaft cover oil seal from the control shaft cover.
      Fig 14: Removing Control Shaft Cover Oil Seal From Control Shaft Cover
      G04831695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE SHIFT AND SELECT LEVER SHAFT ASSEMBLY
    1. Remove the shift and select lever shaft assembly from the manual transmission case.
      Fig 15: Identifying Shift And Select Lever Shaft Assembly
      G04831696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE MANUAL TRANSMISSION CASE COVER SUB-ASSEMBLY
    1. Remove the 9 bolts.
      Fig 16: Identifying Manual Transmission Case Cover Sub-Assembly Bolts
      G04831697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

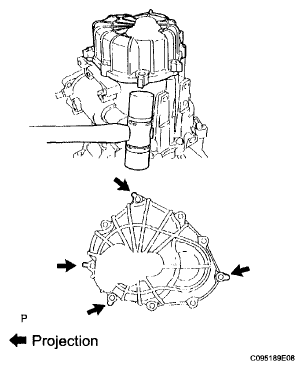

    2. Using a plastic hammer, carefully tap the projections of the manual transmission case cover sub-assembly to remove the manual transmission case cover from the manual transmission case.
      NOTE: Do not damage the manual transmission case.
      Fig 17: Tapping Projections Of Manual Transmission Case Cover Sub-Assembly
      G06012745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE MANUAL TRANSMISSION OUTPUT SHAFT REAR SET NUT
    1. Using a chisel and a hammer, loosen the staked part of the manual transmission output shaft rear set nut.
      Fig 18: Loosening Staked Part Of Manual Transmission Output Shaft Rear Set Nut
      G04831699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 gears simultaneously to lock the transmission.
    3. Remove the manual transmission output shaft rear set nut.
    4. Disengage the 2 gears.
      Fig 19: Removing Manual Transmission Output Shaft Rear Set Nut
      G04831700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 3 GEAR SHIFT FORK
    1. Remove the gear shift fork lock bolt from the No. 3 gear shift fork.
      Fig 20: Locating Gear Shift Fork Lock Bolt
      G04831701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 3 transmission hub sleeve with the No. 3 gear shift fork from the No. 3 transmission clutch hub.
      Fig 21: Removing No. 3 Transmission Hub Sleeve With No. 3 Gear Shift Fork
      G04831702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSPECT 5TH GEAR THRUST CLEARANCE
    1. Using a dial indicator, measure the 5th gear thrust clearance.

      Standard clearance:

      0.10 to 0.55 mm (0.00394 to 0.0217 in.)

      Maximum clearance:

      0.55 mm (0.0217 in.)

      If the clearance exceeds the maximum, replace the No. 3 transmission clutch hub, 5th gear or input shaft rear radial ball bearing.

      Fig 22: Measuring 5Th Gear Thrust Clearance
      G04831703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSPECT 5TH GEAR RADIAL CLEARANCE
    1. Using a dial indicator, measure the 5th gear radial clearance.

      Standard clearance:

      NSK made bearing:

      0.015 to 0.056 mm (0.000591 to 0.00220 in.)

      KOYO made bearing:

      0.015 to 0.058 mm (0.000591 to 0.00228 in.)

      Maximum clearance:

      NSK made bearing:

      0.056 mm (0.00220 in.)

      KOYO made bearing:

      0.058 mm (0.00228 in.)

      Fig 23: Measuring 5Th Gear Radial Clearance
      G04831704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the clearance exceeds the maximum, replace the 5th gear, 5th gear needle roller bearing or input shaft.

  19. REMOVE NO. 3 TRANSMISSION CLUTCH HUB

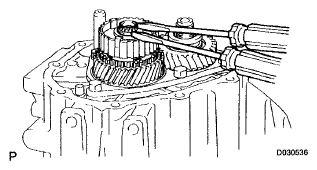

    1. Using 2 screwdrivers and a hammer, tap out the snap ring.

      HINT:

      Use a piece of cloth to keep the snap ring from flying off.

      Fig 24: Tapping Out Snap Ring
      G06012752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

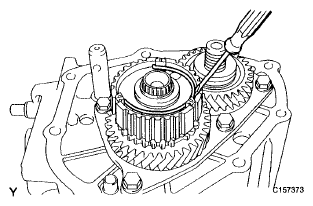

    2. Using a screwdriver, remove the synchromesh shifting key spring from the No. 3 transmission clutch hub.
      Fig 25: Removing Synchromesh Shifting Key Spring From No. 3 Transmission Clutch Hub
      G06012753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

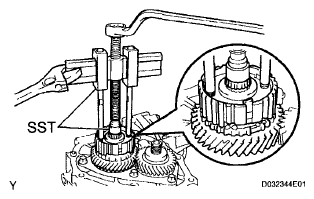

    3. Using SST, remove the No. 3 transmission clutch hub, 5th gear, and No. 3 synchronizer ring from the input shaft.

      SST 09950-50013 (09951 -05010, 09952-05010, 09953-05020, 09954-05031, 09957-04010), 09950-60010 (09951-00200)

      Fig 26: Removing No. 3 Transmission Clutch Hub, 5Th Gear, And No. 3 Synchronizer Ring From Input Shaft
      G06012754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

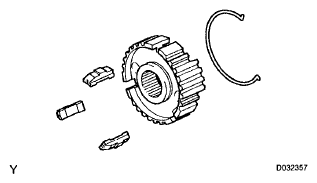

    4. Remove the 3 synchromesh shifting keys and synchromesh shifting key spring from the No. 3 transmission clutch hub.
      Fig 27: Identifying Synchromesh Shifting Keys And Synchromesh Shifting Key Spring
      G06012755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE 5TH GEAR NEEDLE ROLLER BEARING
    1. Remove the 5th gear needle roller bearing and 5th gear bearing spacer from the input shaft.
      Fig 28: Identifying 5Th Gear Needle Roller Bearing And 5Th Gear Bearing Spacer
      G04831708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE 5TH DRIVEN GEAR
    1. Using SST, remove the 5th driven gear from the output shaft.

      SST 09950-30012 (09951 -03010, 09953-03010, 09954-03010, 09955-03021), 09950-60010 (09951-00180, 09952-06010)

      Fig 29: Removing 5Th Driven Gear From Output Shaft
      G04831709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR BEARING RETAINER
    1. Remove the 5 bolts and rear bearing retainer from the manual transmission case.
      Fig 30: Locating Rear Bearing Retainer Bolts
      G04831710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE OUTPUT SHAFT REAR BEARING HOLE SNAP RING
    1. Using a snap ring expander, remove the output shaft rear bearing hole snap ring from the output shaft.
      Fig 31: Removing Output Shaft Rear Bearing Hole Snap Ring From Output Shaft
      G04831711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE INPUT SHAFT REAR BEARING HOLE SNAP RING
    1. Using a snap ring expander, remove the input shaft rear bearing hole snap ring from the input shaft.
      Fig 32: Removing Input Shaft Rear Bearing Hole Snap Ring From Input Shaft
      G04831712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE REVERSE IDLER GEAR SHAFT BOLT
    1. Remove the reverse idler gear shaft bolt and gasket from the manual transmission case.
      Fig 33: Locating Reverse Idler Gear Shaft Bolt
      G04831713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE SHIFT FORK SHAFT SNAP RING
    1. Using 2 screwdrivers and a hammer, tap out the snap ring from the No. 2 gear shift fork shaft.

      HINT:

      Use a piece of cloth to keep the snap ring from flying off.

      Fig 34: Tapping Out Snap Ring From No. 2 Gear Shift Fork Shaft
      G04831714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE SHIFT DETENT BALL
    1. Using a hexagon wrench, remove the 2 shift detent ball plugs from the manual transmission case.
      Fig 35: Removing Shift Detent Ball Plugs From Manual Transmission Case
      G04831715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a magnetic pick-up tool, remove the 2 shift spring seats, 2 shift detent ball springs, and 2 shift detent balls from the manual transmission case.
      Fig 36: Removing Shift Spring Seats, Shift Detent Ball Springs, And Shift Detent Balls
      G04831716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a hexagon wrench, remove the shift detent ball plug from the transaxle case.
      Fig 37: Removing Shift Detent Ball Plug From Transaxle Case
      G04831717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a magnetic pick-up tool, remove the seat, spring and ball from the transaxle case.
      Fig 38: Removing Seat, Spring And Ball From Transaxle Case
      G04831718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE NO. 2 LOCK BALL ASSEMBLY
    1. Using a hexagon wrench, remove the No. 2 lock ball assembly from the manual transmission case.
      Fig 39: Removing No. 2 Lock Ball Assembly From Manual Transmission Case
      G04831719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE MANUAL TRANSMISSION CASE
    1. Remove the 3 bolts from the transaxle case.
      Fig 40: Locating Transaxle Case Bolts
      G04831720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 13 bolts from the manual transmission case.
      Fig 41: Locating Manual Transmission Case Bolts
      G04831721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a brass bar and a hammer, carefully tap the projections of the manual transmission case to remove the transmission case from the transaxle case.
      NOTE: Do not damage the manual transmission case or transaxle case.
      Fig 42: Tapping Projections Of Manual Transmission Case To Remove Transmission Case From Transaxle Case
      G04831722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REVERSE IDLER GEAR SUB-ASSEMBLY
    1. Remove the reverse idler gear sub-assembly, thrust washer, and reverse idler gear shaft from the transaxle case.
      Fig 43: Identifying Reverse Idler Gear Sub-Assembly
      G04831723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REVERSE SHIFT ARM BRACKET ASSEMBLY
    1. Remove the 2 bolts and reverse shift arm bracket assembly from the transaxle case.
      Fig 44: Locating Shift Arm Bracket Assembly Bolts
      G04831724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE NO. 2 GEAR SHIFT FORK SHAFT
    1. Remove the 2 bolts from the No. 2 gear shift fork and No. 1 gear shift head.
      Fig 45: Locating No. 2 Gear Shift Fork Bolts
      G04831725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

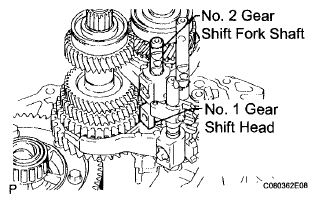

    2. Remove the No. 2 gear shift fork shaft and No. 1 gear shift head from the transaxle case.
      Fig 46: Identifying No. 2 Gear Shift Fork Shaft And No. 1 Gear Shift Head
      G06012774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE NO. 1 GEAR SHIFT FORK SHAFT
    1. Using 2 screwdrivers and a hammer, tap out the snap ring.

      HINT:

      Use a piece of cloth to keep the snap ring from flying off.

      Fig 47: Tapping Out Snap Ring
      G04831727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift fork set bolt and No. 1 gear shift fork shaft from the No. 1 gear shift fork.

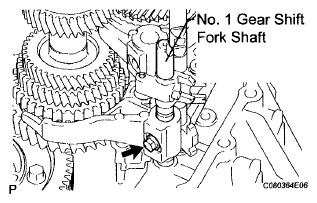

      Fig 48: Locating Shift Fork Set Bolt And No. 1 Gear Shift Fork Shaft
      G06012776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 1 gear shift fork.

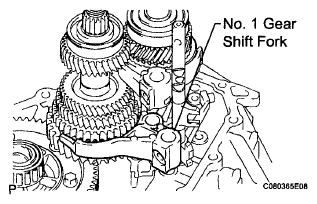

      Fig 49: Identifying No. 1 Gear Shift Fork
      G06012777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE NO. 3 GEAR SHIFT FORK SHAFT
    1. Using 2 screwdrivers and a hammer, tap out the snap ring from the No. 3 gear shift fork shaft.

      HINT:

      Use a piece of cloth to keep the snap ring from flying off.

      Fig 50: Tapping Out Snap Ring From No. 3 Gear Shift Fork Shaft
      G04831730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 3 gear shift fork shaft together with the reverse shift fork and No. 2 gear shift fork from the manual transaxle case.

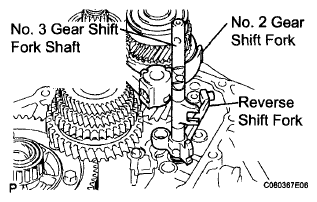

      Fig 51: Identifying No. 3 Gear Shift Fork Shaft Together With Reverse Shift Fork And No. 2 Gear Shift
      G06012779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a magnetic pick-up tool, remove the 2 reverse shift fork balls from the reverse shift fork.
      Fig 52: Removing Reverse Shift Fork Balls From Reverse Shift Fork
      G04831732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using 2 screwdrivers and a hammer, tap the snap ring out of the No. 3 shift fork shaft.

      HINT:

      Use a piece of cloth to keep the snap ring from flying off.

    5. Remove the reverse shift fork from the No. 3 gear shift fork shaft.
      Fig 53: Tapping Snap Ring Out Of No. 3 Shift Fork Shaft
      G04831733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE INPUT SHAFT ASSEMBLY
    1. Remove the input shaft assembly and output shaft assembly from the transaxle case.
      Fig 54: Identifying Input Shaft Assembly And Output Shaft Assembly
      G04831734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE DIFFERENTIAL CASE ASSEMBLY
    1. Remove the differential case assembly from the transaxle case.
      Fig 55: Identifying Differential Case Assembly
      G04831735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE MANUAL TRANSAXLE CASE RECEIVER
    1. Remove the bolt and manual transaxle case receiver from the transaxle case.
      Fig 56: Locating Manual Transaxle Case Receiver Bolt
      G04831736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE REVERSE RESTRICT PIN ASSEMBLY
    1. Using a hexagon wrench, remove the reverse restrict pin plug from the manual transmission case.
      Fig 57: Removing Reverse Restrict Pin Plug From Manual Transmission Case
      G04831737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a pin punch ( ø5 mm) and a hammer, drive out the slotted spring pin and remove the reverse restrict pin assembly from the manual transmission case.
      Fig 58: Driving Out Slotted Spring Pin
      G04831738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE NO. 1 OIL RECEIVER PIPE
    1. Remove the bolt and No. 1 oil receiver pipe from the manual transmission case.
      NOTE: Do not damage the No. 1 oil receiver pipe.
      Fig 59: Identifying No. 1 Oil Receiver Pipe Bolt
      G04831739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE NO. 2 OIL RECEIVER PIPE
    1. Remove the bolt and No. 2 oil receiver pipe from the manual transmission case.
      NOTE: Do not damage the No. 2 oil receiver pipe.
      Fig 60: Locating No. 2 Oil Receiver Pipe Bolt
      G04831740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE BEARING LOCK PLATE
    1. Remove the bolt and bearing lock plate from the transaxle case.
      Fig 61: Locating Bearing Lock Plate Bolt
      G04831741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE TRANSMISSION MAGNET
    1. Remove the transmission magnet from the transaxle case.
      Fig 62: Identifying Transmission Magnet
      G04831776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE INPUT SHAFT FRONT BEARING
    1. Using SST, remove the input shaft front bearing from the transaxle case.

      SST 09612-65014 (09612-01050, 09612-01060)

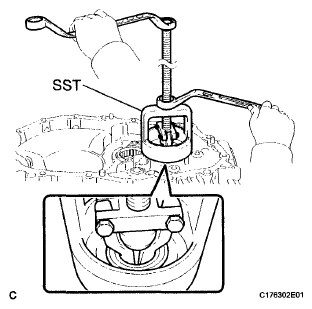

      Fig 63: Removing Input Shaft Front Bearing From Transaxle Case
      G06012791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE FRONT TRANSAXLE CASE OIL SEAL
    1. Using a screwdriver, remove the front transaxle case oil seal from the transaxle case.
      Fig 64: Removing Front Transaxle Case Oil Seal From Transaxle Case
      G04831744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE OUTPUT SHAFT FRONT BEARING
    1. Using SST, remove the output shaft front bearing from the transaxle case.

      SST 09308-00010

      NOTE: Do not apply excessive force to the front transaxle case when installing SST.

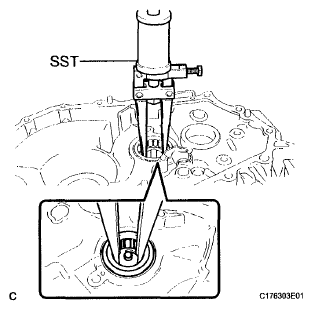

      Fig 65: Removing Output Shaft Front Bearing From Transaxle Case
      G06012793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE OUTPUT SHAFT COVER
    1. Remove the output shaft cover from the transaxle case.
      Fig 66: Identifying Output Shaft Cover
      G04831746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
    1. Using SST, remove the front differential case front tapered roller bearing (outer race) and plate washer from the transaxle case.

      SST 09612-65014 (09612-01040, 09612-01050)

      Fig 67: Removing Front Differential Case Front Tapered Roller Bearing (Outer Race) And Plate Washer From Transaxle Case
      G04831747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the front differential case front tapered roller bearing (inner race) from the differential case assembly.

      SST 09950-00020, 09950-00030, 09950-40011 (09957-04010), 09950-60010 (09951-00360)

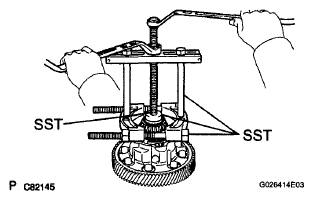

      Fig 68: Removing Front Differential Case Front Tapered Roller Bearing (Inner Race) From Differential Case Assembly
      G06012796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE TRANSAXLE CASE OIL SEAL
    1. Using SST and a hammer, remove the transaxle case oil seal from the transaxle case.

      SST 09950-60010 (09951 -00530), 09950-70010 (09951-07150)

      Fig 69: Removing Transaxle Case Oil Seal From Transaxle Case
      G05400572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING
    1. Using SST, remove the front differential case rear tapered roller bearing (outer race) and plate washer from the transmission case.

      SST 09612-65014 (09612-01040, 09612-01050)

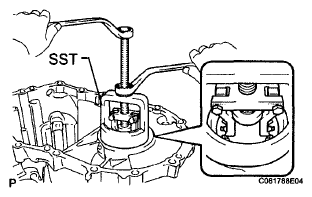

      Fig 70: Removing Front Differential Case Rear Tapered Roller Bearing (Outer Race) And Plate Washer From Transmission Case
      G06012798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the front differential case rear tapered roller bearing (inner race) from the front differential case.

      SST 09950-40011 (09951 -04010, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010 (09951-00360)

      Fig 71: Removing Front Differential Case Rear Tapered Roller Bearing (Inner Race) From Front Differential Case
      G04831751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE TRANSMISSION CASE OIL SEAL
    1. Using SST and a hammer, drive out the transmission case oil seal from the manual transmission case.

      SST 09950-60010 (09951 -00530), 09950-70010 (09951-07150)

      Fig 72: Driving Out Transmission Case Oil Seal From Manual Transmission Case
      G04831752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE SHIFT AND SELECT LEVER SHAFT OIL SEAL
    1. Using a screwdriver and a hammer, remove the shift and select lever shaft oil seal.
      Fig 73: Removing Shift And Select Lever Shaft Oil Seal
      G04831753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE SHIFT AND SELECT LEVER SHAFT SLIDE BALL BEARING
    1. Using SST and a plastic hammer, remove the shift and select lever shaft slide ball bearing.

      SST 09950-60010 (09951 -00220), 09950-70010 (09951-07200)

      Fig 74: Removing Shift And Select Lever Shaft Slide Ball Bearing
      G05400577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
