Shift Lever Assembly: Components

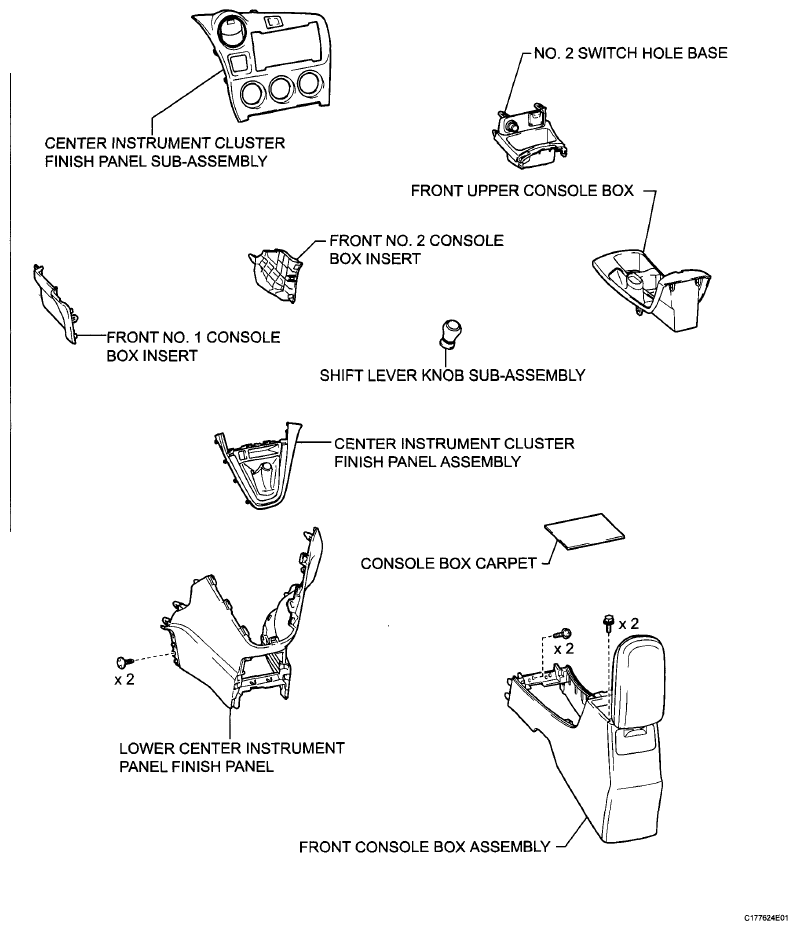

Fig 1: Identifying Shift Lever Assembly Components (1 Of 2)
G06045038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

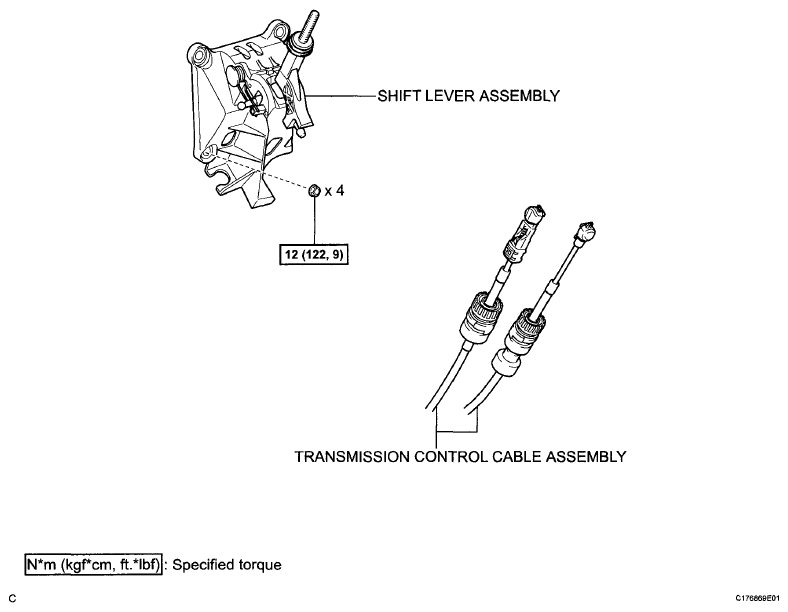

Fig 2: Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 2)
G06045059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
