Installation

2ZR-FE ENGINE CONTROL: CRANKSHAFT POSITION SENSOR: INSTALLATION

INSTALLATION

1. INSTALL CRANK POSITION SENSOR

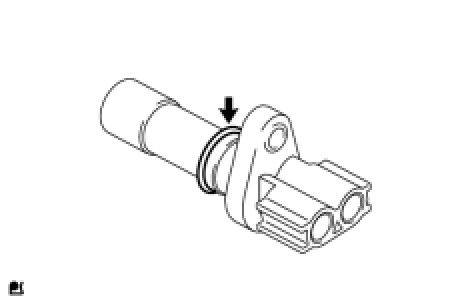

(a) Apply a light coat of engine oil to the O-ring on the crank position sensor.

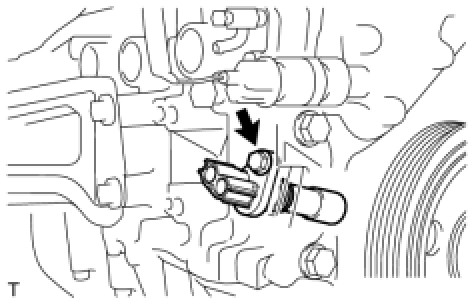

(b) Install the crank position sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7.4 ft-lbf)
(c) Connect the crank position sensor connector.
2. INSPECT FOR OIL LEAK
3. INSTALL ENGINE UNDER COVER RH
