Removal

2ZR-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

REMOVAL

1. DRAIN ENGINE COOLANT Service and Repair
2. REMOVE NO. 2 CYLINDER HEAD COVER Removal
3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Removal

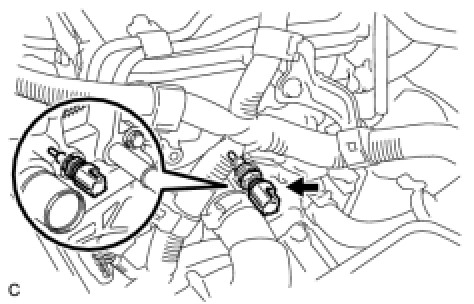

4. REMOVE ENGINE COOLANT TEMPERATURE SENSOR





(a) Disconnect the engine coolant temperature sensor connector.





(b) Remove the engine coolant temperature sensor and gasket.
