Transmission Pan

AUTOMATIC TRANSAXLE OIL PAN

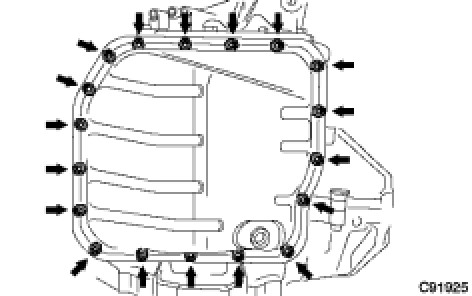

Install a new oil pan gasket and the oil pan to the transaxle case with the 18 bolts.
Torque 7.8 Nm (80 kgf-cm, 69 in-lbf)
