Diagnosis System

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION
The ECM controls the cruise control system of the vehicle. The data and DTCs relating to the cruise control system can be read from the DLC3 of the vehicle. If either DTC is not displayed when checking for DTCs, there may be a problem with the combination meter or the CAN communication and multiplex communication system. Use the Techstream to check and solve the problem.

CHECK DLC3

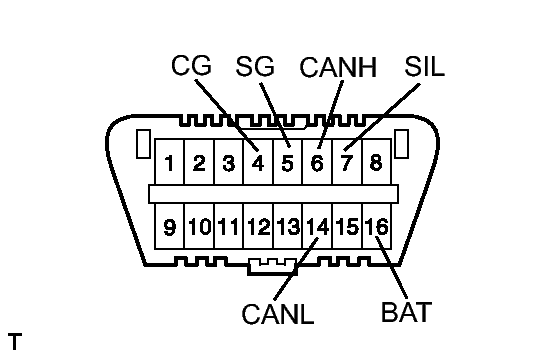

Fig 1: Identifying DLC3 Connector Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The ECM uses ISO 15765-4 for communication. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.

Symbols (Terminals No.)	Terminal Description	Condition	Specified Condition
SIL (7) - SG (5)	Bus "+" line	During transmission	Pulse generation
CG (4) - Body ground	Chassis ground	Always	Below 1 Ω
SG (5) - Body ground	Signal ground	Always	Below 1 Ω
BAT (16) - Body ground	Battery positive	Always	10 to 14 V
CANH (6) - CANL (14)	CAN bus line	Ignition switch off^*	54 to 69 Ω
CANH (6) - CG (4)	HIGH-level CAN bus line	Ignition switch off^*	200 Ω or higher
CANL (14) - CG (4)	LOW-level CAN bus line	Ignition switch off^*	200 Ω or higher
CANH (6) - BAT (16)	HIGH-level CAN bus line	Ignition switch off^*	6 kΩ or higher
CANL (14) - BAT (16)	LOW-level CAN bus line	Ignition switch off^*	6 kΩ or higher

NOTE:

^* : Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

HINT:

Connect the cable of the Techstream to the DLC3, turn the ignition switch on (IG) and attempt to use the Techstream. If the display indicates that a communication error has occurred, there is a problem either with the vehicle or with the Techstream.

If communication is normal when the Techstream is connected to another vehicle, inspect the DLC3 of the original vehicle.
If communication is still not possible when the Techstream is connected to another vehicle, the problem may be in the Techstream itself. Consult the Service Department listed in the Techstream instruction manual.

CHECK INDICATOR
1. Turn the ignition switch on (IG).

  Fig 2: Identifying Cruise Indicator Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the CRUISE main indicator light illuminates when the cruise control main switch is turned on, and that the indicator light turns off when the main switch is turned OFF. If the results are not as specified, inspect the CRUISE main indicator light circuit. Refer to Cruise Main Indicator Light Circuit .

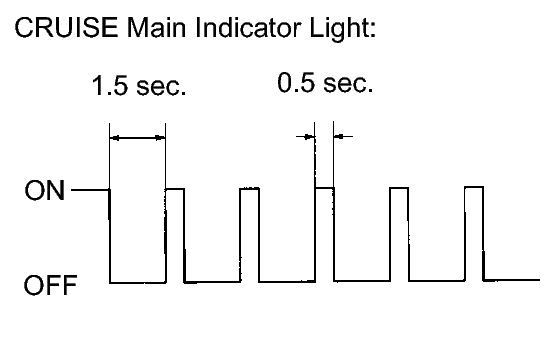

  Fig 3: Identifying Blinking Pattern Graph Of CRUISE Main Indicator Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - While driving with cruise control, the ECM activates AUTO CANCEL of the cruise control system when a malfunction in one of the following occurs: vehicle speed sensors, stop light switch or other related parts. When AUTO CANCEL is activated, the CRUISE main indicator light outputs the blinking pattern shown in the illustration. At the same time, data of the malfunction is stored as a DTC.
