Crankshaft Position Sensor: Components

WARNING: This page is about a different variant/trim than selected.

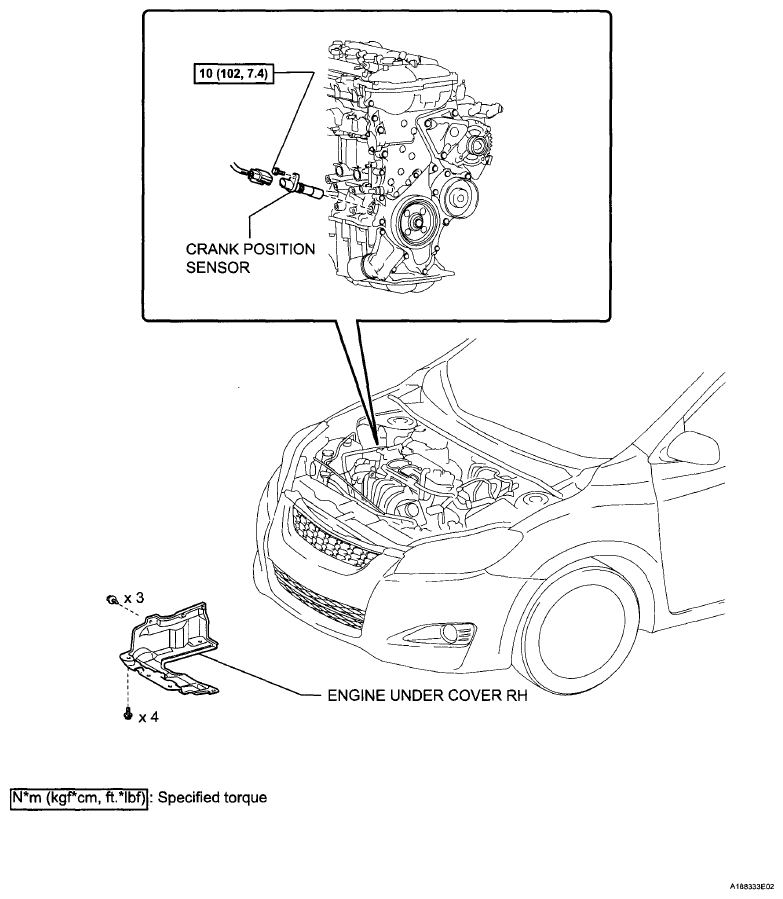

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
G06040811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
