Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL INTAKE MANIFOLD
1. Using a "TORX" socket E6, install the 2 stud bolts to the intake manifold.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Connect the bracket with the bolt.
  Torque: 10 N*m (102 kgf*cm, 8 ft.*lbf)
3. Install a new gasket into the intake manifold.

  Fig 1: Locating Intake Manifold Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the intake manifold and intake manifold stay with the 4 bolts and 2 nuts.
  Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)
5. Connect the 3 hoses.
6. Install the wire harness bracket with the bolt.
  Torque: 10 N*m (102 kgf*cm, 8 ft.*lbf)
INSTALL THROTTLE BODY ASSEMBLY (See INSPECTION )
INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE (See INSPECTION )

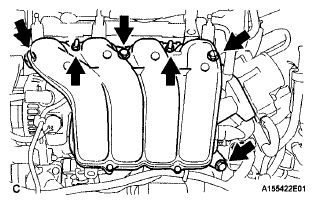

Fig 2: Locating Intake Manifold Bolts And Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 CYLINDER HEAD COVER (See INSTALLATION )
ADD ENGINE COOLANT (See COOLANT )
INSPECT FOR COOLANT LEAK (See COOLING SYSTEM )
