Vehicle Speed Signal Circuit between Navigation Receiver Assembly and Combination Meter: Wiring Diagram

  1. for 2AZ-FE:

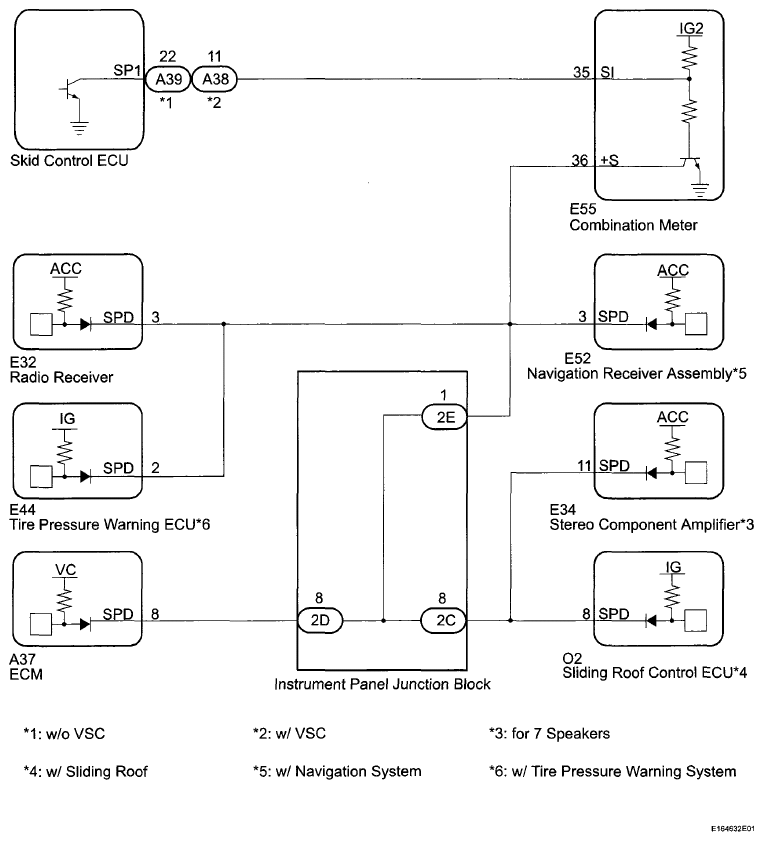

    Fig 1: Vehicle Speed Signal (2AZ-FE) - Wiring Diagram
    G06035963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 2ZR-FE:
    Fig 2: Vehicle Speed Signal (2ZR-FE) - Wiring Diagram
    G06035964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
