Driver Side Junction Block Assembly Inner Circuit

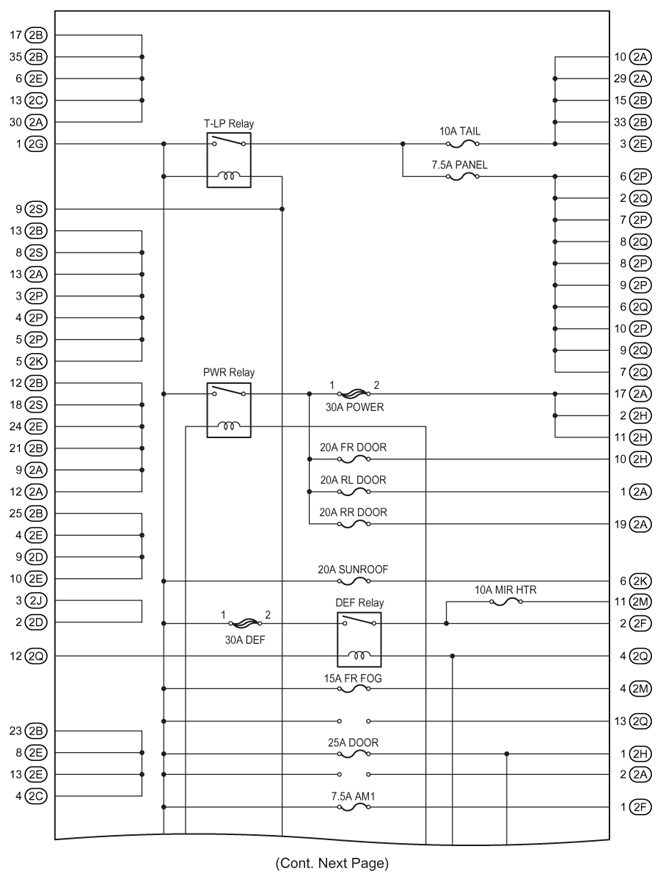

Fig 1: Driver Side J/B Assembly Inner Circuit Diagram (1 Of 4) With Relays
G07606185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
T-PL Relay
PWR Relay
DEF Relay

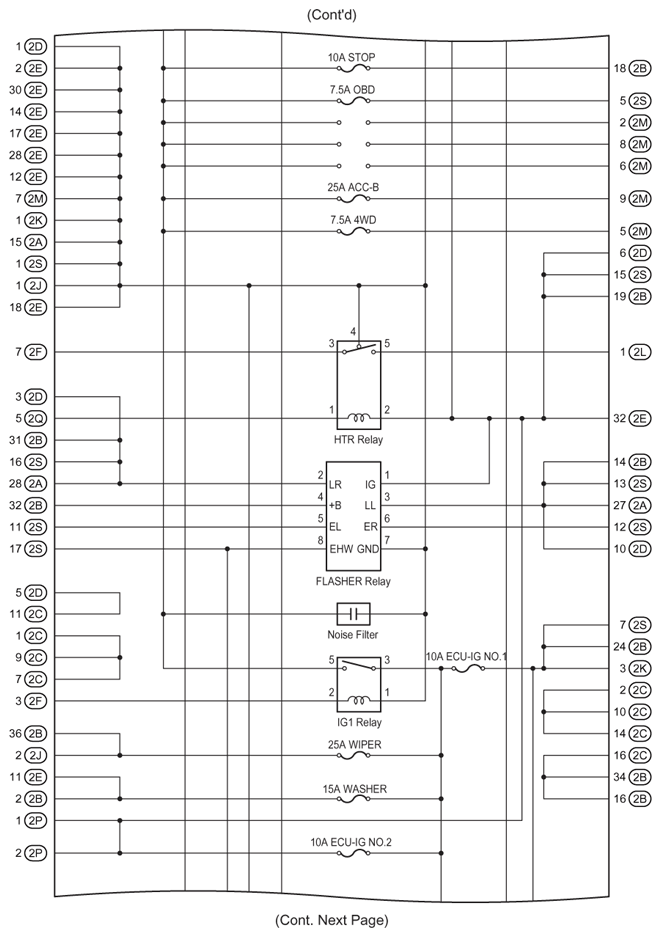

Fig 2: Driver Side J/B Assembly Inner Circuit Diagram (2 Of 4)
G07606186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

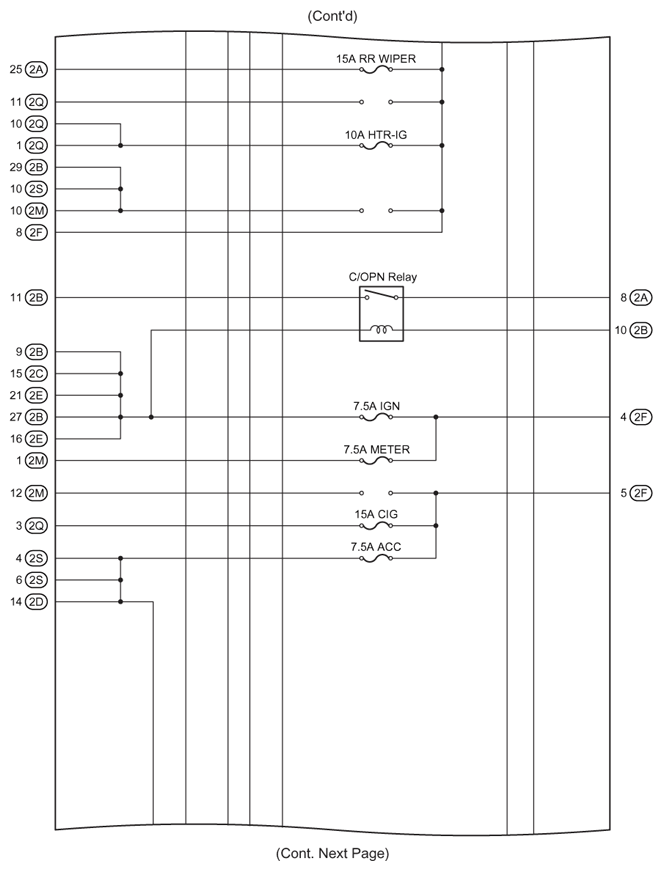

Fig 3: Driver Side J/B Assembly Inner Circuit Diagram (3 Of 4) With Relays
G07606187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
C/OPN Relay

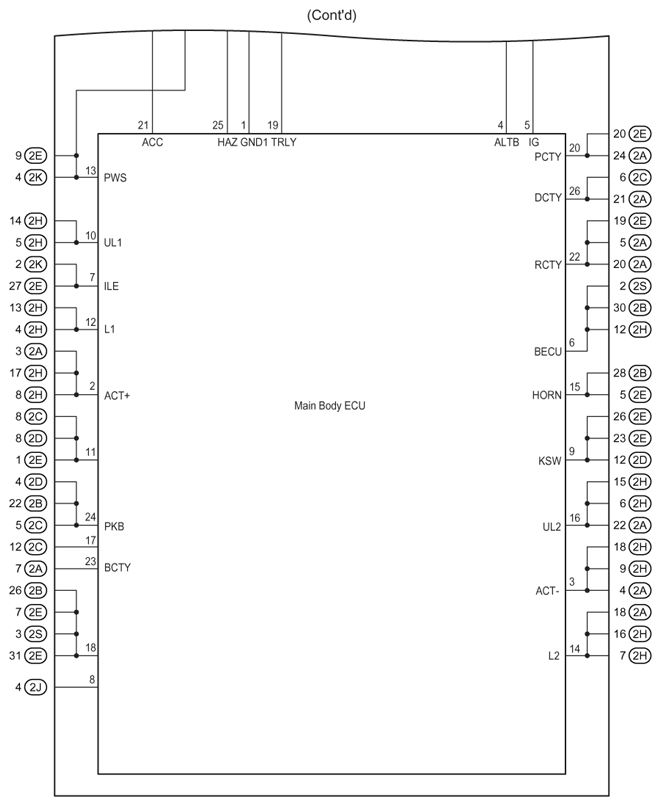

Fig 4: Driver Side J/B Assembly Inner Circuit Diagram (4 Of 4)
G07606188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
