Engine Room Relay Block Assembly And Engine Room Junction Block Assembly - Unit B

Engine Compartment Left  (See Figure)

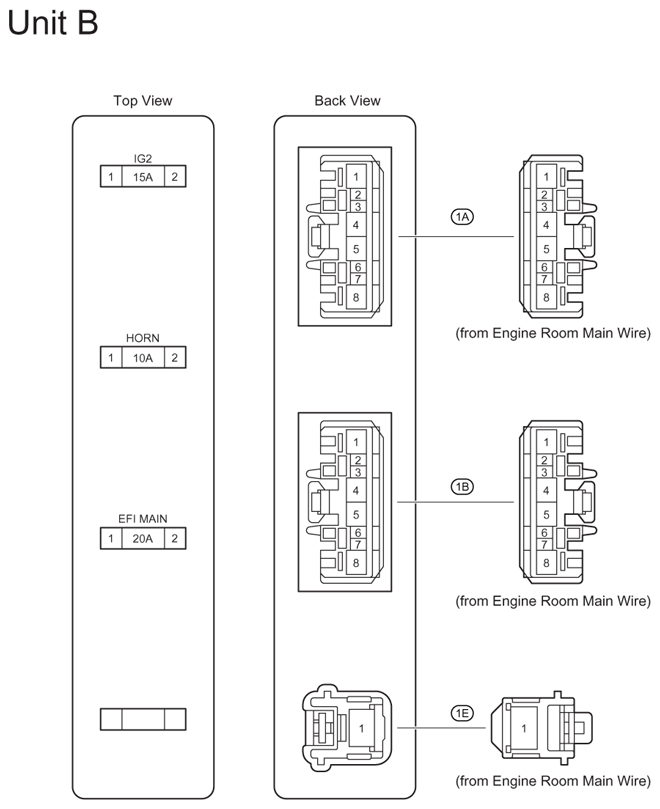

Fig 1: Engine Room R/B Assembly And Engine Room J/B Assembly Connector & Fuse Locations - Unit B
G07606180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Engine Room R/B Assembly And Engine Room J/B Assembly Fuse Identification Legend - Unit B

See Engine Room R/B Assembly And Engine Room J/B Assembly Fuse Identification Legend
