Inspection Procedure

Fig 1: Inspecting Cruise Control Main Switch Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Cruise Control / Data List.
5. Check the Data List for proper functioning of the cruise control main switch.

   Hybrid vehicle control ECU

   DIAGNOSTIC CHART



   Tester Display	Measurement Item / Range	Normal Condition	Diagnostic Note
   CCS MAIN Switch M-CPU	Main switch signal (Main CPU) / ON or OFF	ON: Main switch on OFF: Main switch off	-
   CANCEL Switch	CANCEL switch signal / ON or OFF	ON: CANCEL switch on OFF: CANCEL switch off	-
   SET/COAST Switch	- (COAST) / SET switch signal / ON or OFF	ON: - SET switch on OFF: - SET switch off	-
   RES/ACC Switch	+ (ACCEL) / RES switch signal / ON or OFF	ON: + RES switch on OFF: + RES switch off	-

   OK : When cruise control main switch operation is performed, the results will be same as above.

OK : REPLACE HYBRID VEHICLE CONTROL ECU

NG : GO TO NEXT STEP

1. Measure the voltage of the connector.

   Standard voltage

   VOLTAGE SPECIFICATION CHART



   Tester Connection	Switch Condition	Specified Condition
   H14-13 (CCS) - Body ground	Cruise control main switch off	10 to 14V
   	+ RES	6.6 to 10.1 V
   	- SET	4.5 to 7.1 V
   	CANCEL	2.3 to 4.0 V
   	Cruise control main switch on	Below 1 V

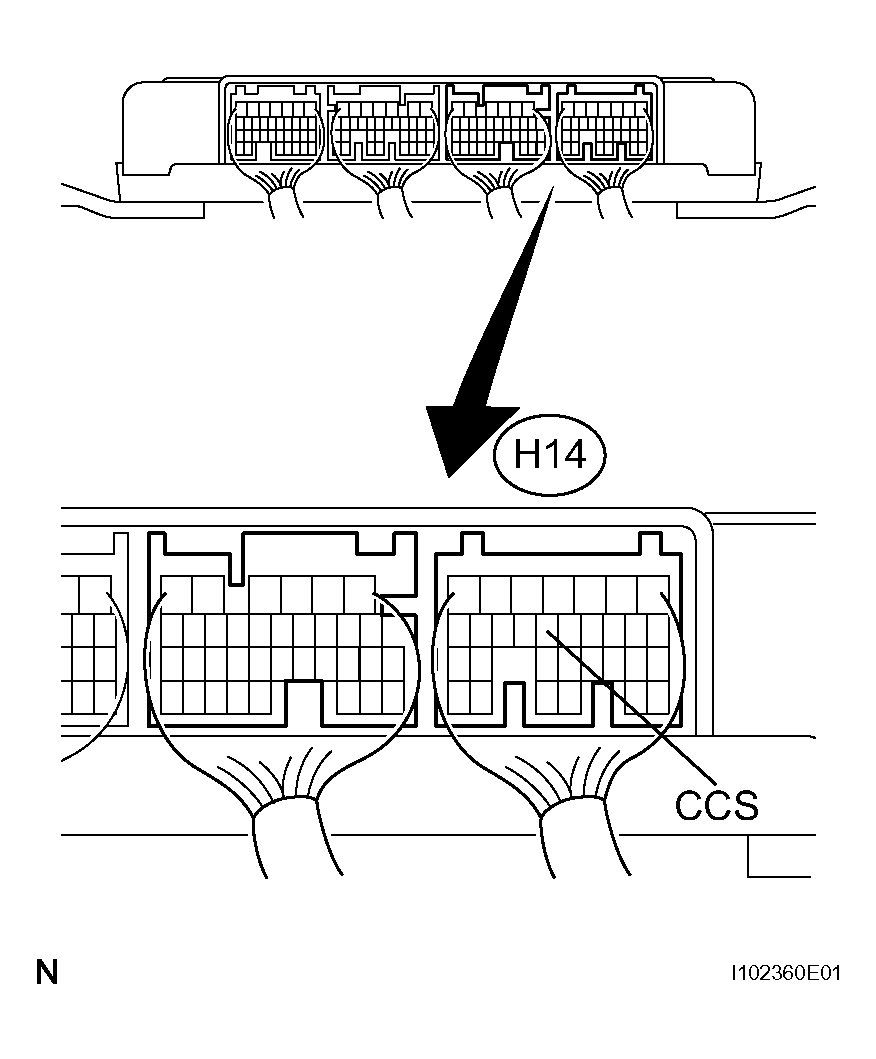

Fig 2: Checking Hybrid Vehicle Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

NG : GO TO NEXT STEP

1. Disconnect the H14 ECU connector.
2. Measure the resistance of the wire harness side connector.

   Standard resistance

   STANDARD RESISTANCE CHART



   Tester Connection	Switch Condition	Specified Condition
   H14-13 (CCS) - Body ground	Neutral	10 kΩ or higher
   	+ RES	210 to 270 Ω
   	- SET	560 to 700 Ω
   	CANCEL	1,380 to 1,700 Ω
   	Cruise control main switch on	Below 1 Ω

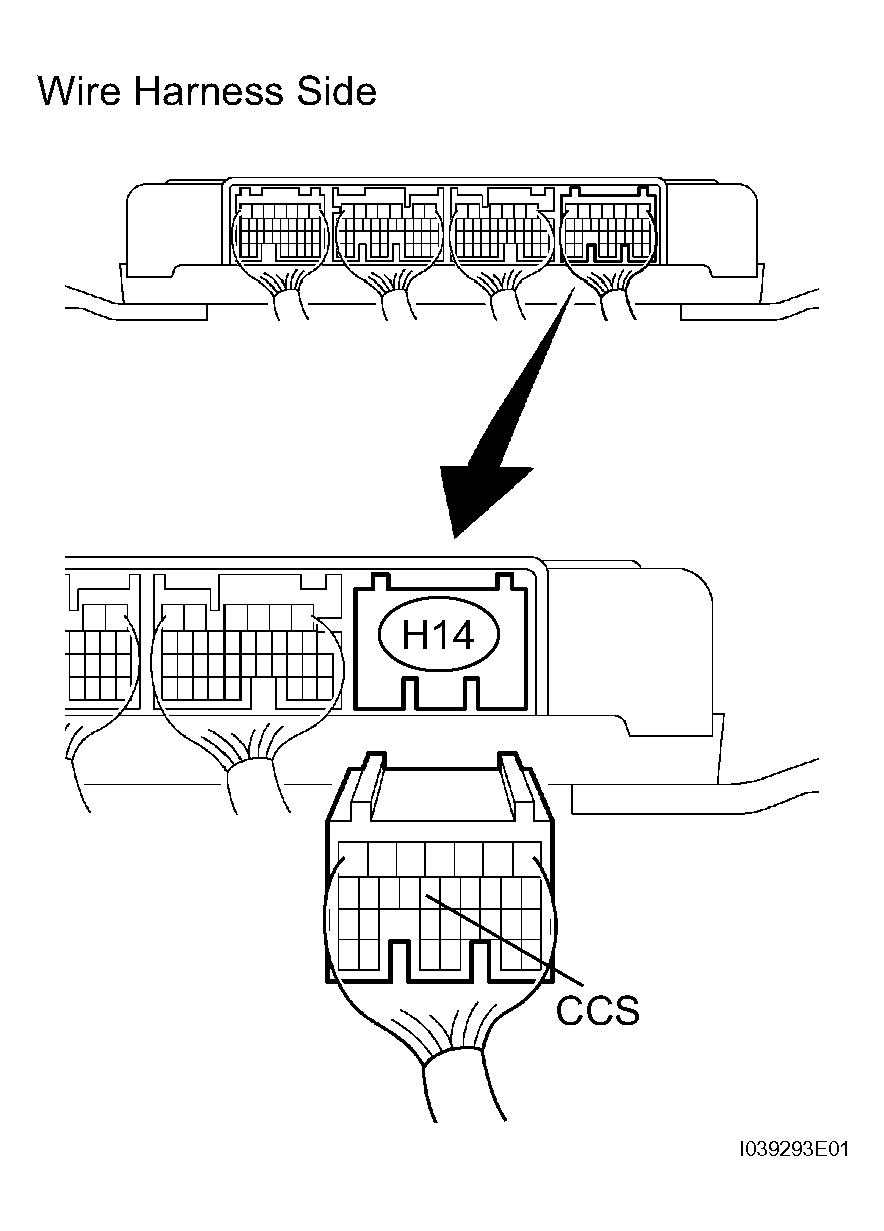

Fig 3: Inspecting Cruise Control Main Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE HYBRID VEHICLE CONTROL ECU

NG : GO TO NEXT STEP

1. Measure the resistance of the switch.

   Standard resistance

   STANDARD RESISTANCE CHART



   Tester Connection	Switch Condition	Specified Condition
   1 - 3	+ RES	235 to 245 Ω
   	- SET	617 to 643 Ω
   	CANCEL	1,509 to 1,571 Ω
   	Main switch on	Below 2.5 Ω
   	Main switch off*1	1 MΩ or higher

   *1: Lever is in the neutral position

   If the result is not as specified, replace the switch assembly.

NG : REPLACE CRUISE CONTROL MAIN SWITCH

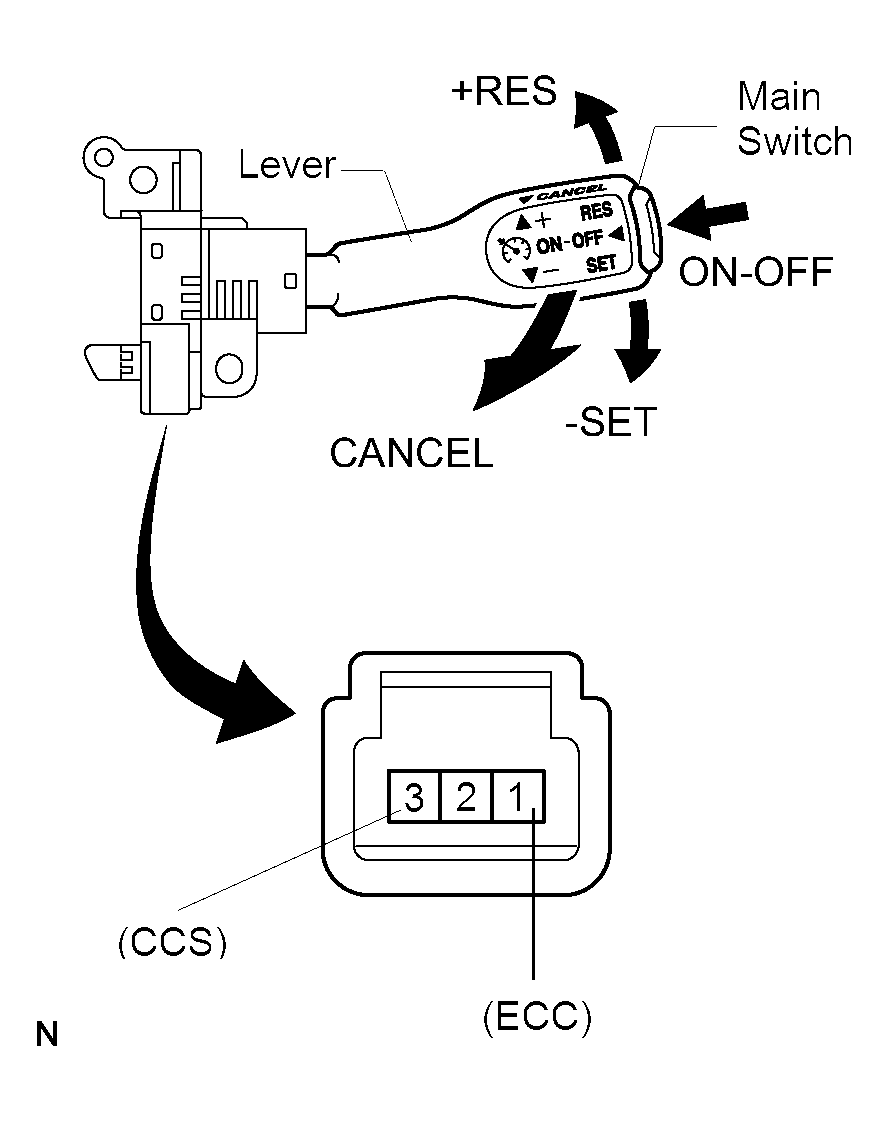

Fig 4: Inspecting Cruise Control Main Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Disconnect the spiral cable connector.
2. Measure the resistance of the wire harness side connectors.

   Standard resistance

   STANDARD RESISTANCE CHART



   Tester Connection	Specified Condition
   A-3 - B-3	Below 1 Ω
   A-4 - B-1

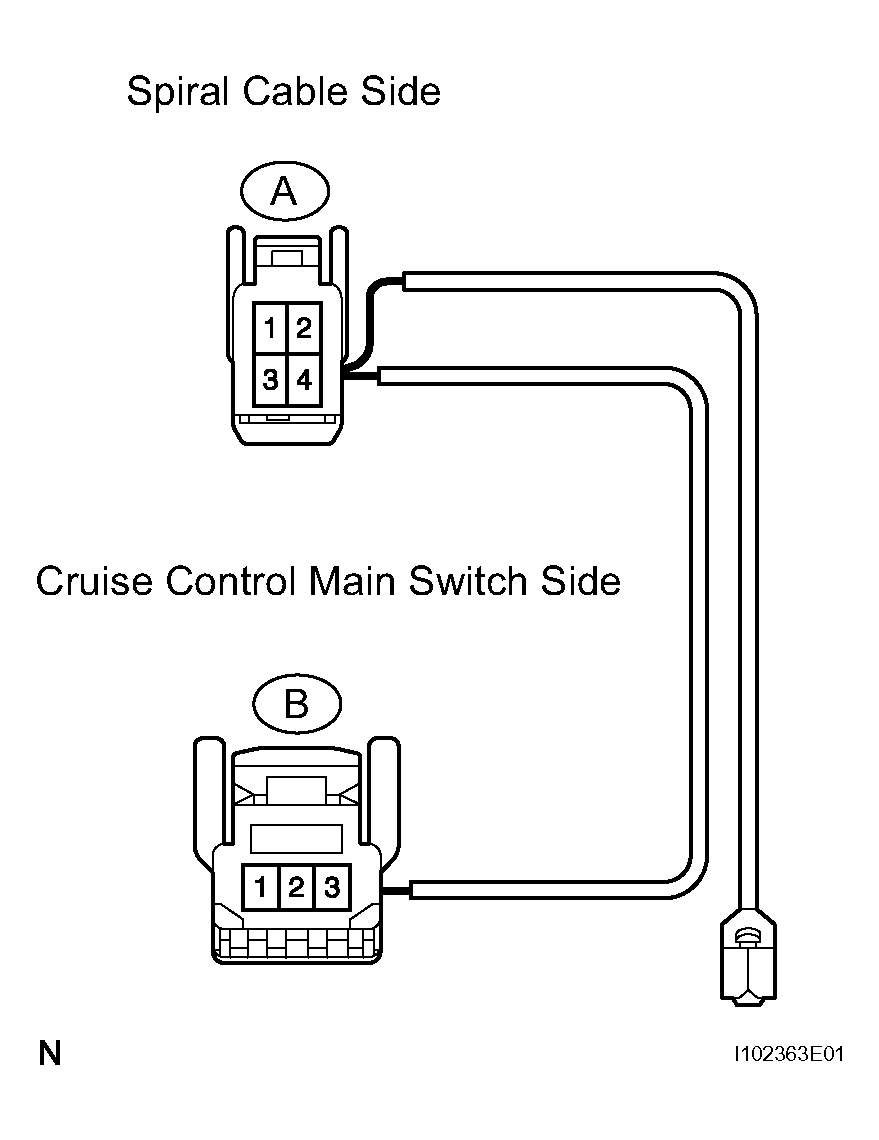

Fig 5: Measuring Resistance At Wire Harness Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

OK : GO TO NEXT STEP

1. Disconnect the spiral cable connector.
2. Measure the resistance of the cable.

   Standard resistance

   STANDARD RESISTANCE CHART



   Tester Connection	Spiral Cable Position	Specified Condition
   A-3 - C12-1	Center 2.5 rotations to the left 2.5 rotations to the right	Below 1 Ω
   A-4 - C12-2	Center 2.5 rotations to the left 2.5 rotations to the right

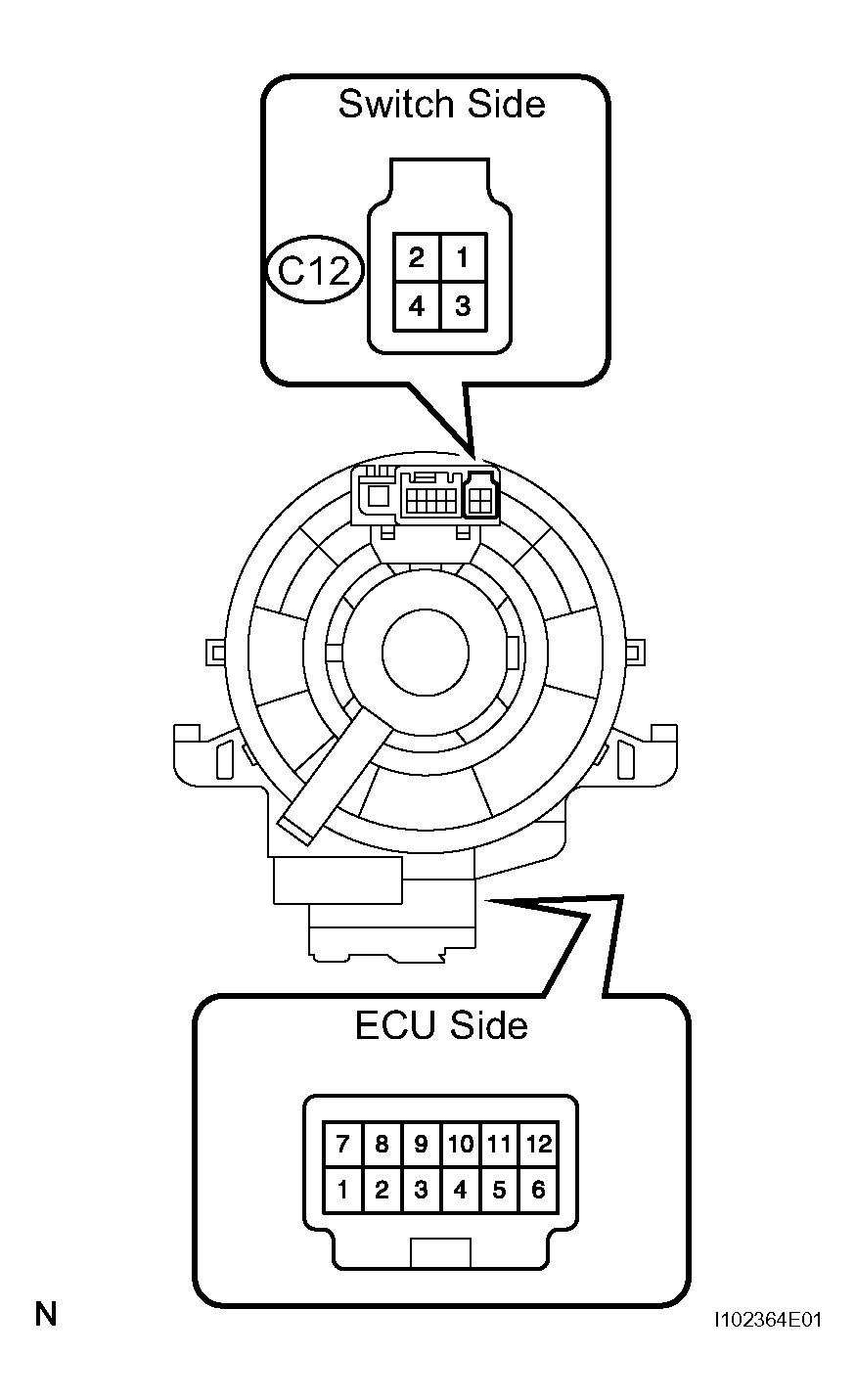

Fig 6: Measuring Resistance Of Spiral Cable Sub-Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE SPIRAL CABLE

OK : GO TO NEXT STEP

1. Disconnect the C12 cable connector.
2. Disconnect the H14 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   STANDARD RESISTANCE CHART



   Tester Connection	Specified Condition
   C12-1 - H14-13 (CCS)	Below 1 Ω
   C12-2 - Body ground

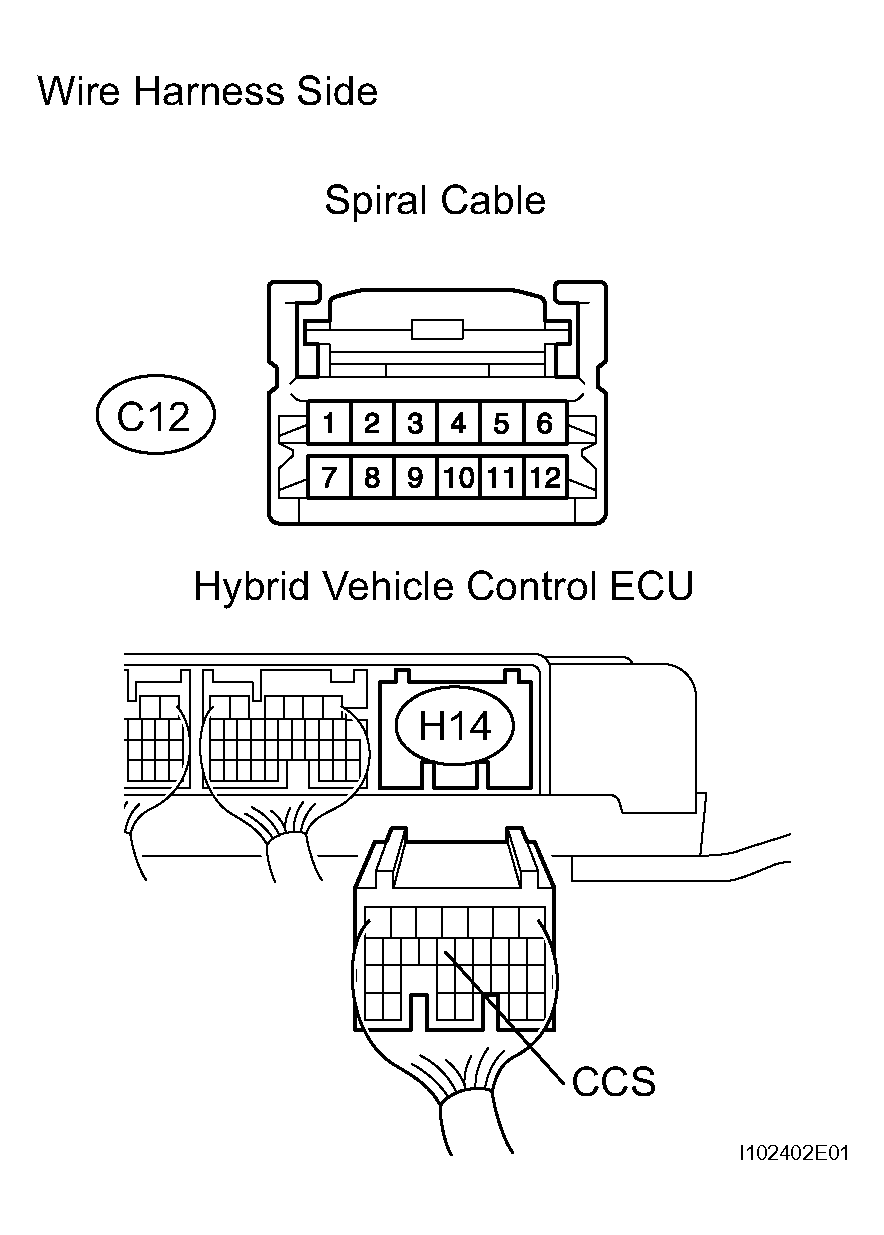

Fig 7: Checking Wire Harness And Connectors (Spiral Cable - ECU And Body Ground)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

OK : PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
