Road Test

  1. PROBLEM SYMPTOM CONFIRMATION
    1. Inspect the SET function.
      1. Push the ON-OFF button "on".
      2. Drive at the required speed (40 km/h (25 mph) or higher).
      3. Push the cruise control main switch to -/SET.
      4. Check that the vehicle cruises at the set speed after releasing the switch.
        Fig 1: Inspecting SET Function
        G04475737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the "+ (ACCEL)" function.
      1. Push the ON-OFF button "on".
      2. Drive at the required speed (40 km/h (25 mph) or higher).
      3. Push the cruise control main switch to -/SET.
      4. Check that vehicle speed increases while the cruise control main switch is pushed to +/RES, and that the vehicle cruises at the newly set speed when the switch is released.
      5. Momentarily push the cruise control main switch to +/RES and then immediately release it. Check that vehicle speed increases by approximately 1.6 km/h (1.0 mph) (tap-up function).
        Fig 2: Inspecting "+ (ACCEL)" Function
        G04475738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Inspect the "- (COAST)" function.
      1. Push the ON-OFF button "on".
      2. Drive at the required speed (40 km/h (25 mph) or higher).
      3. Push the cruise control main switch to -/SET.
      4. Check that vehicle speed decreases while the cruise control main switch is pushed to -/SET, and that the vehicle cruises at the newly set speed when the switch is released.
      5. Momentarily push the cruise control main switch to -/SET and then immediately release it. Check that vehicle speed decreases by approximately 1.6 km/h (1.0 mph) (tap-down function).

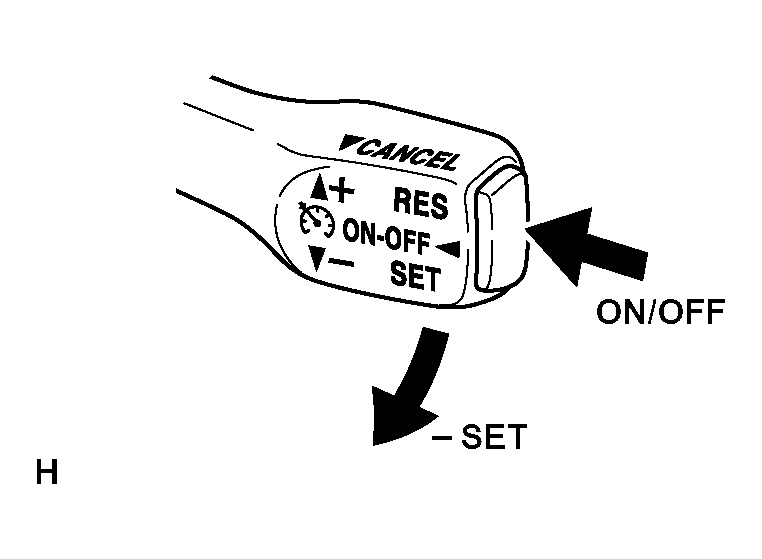

        Fig 3: Inspecting "- (COAST)" Function
        G04475739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Inspect the CANCEL function.
      1. Push the ON-OFF button "on".
      2. Drive at the required speed (40 km/h (25 mph) or higher).
      3. Push the cruise control main switch to -/SET.
      4. When doing one or more of the following, check that the cruise control system is canceled and that the normal driving mode is reset:
        • Depressing the brake pedal
        • Shifting into any position except D
        • Pushing the ON-OFF button "off"
        • Pulling the cruise control main switch to CANCEL

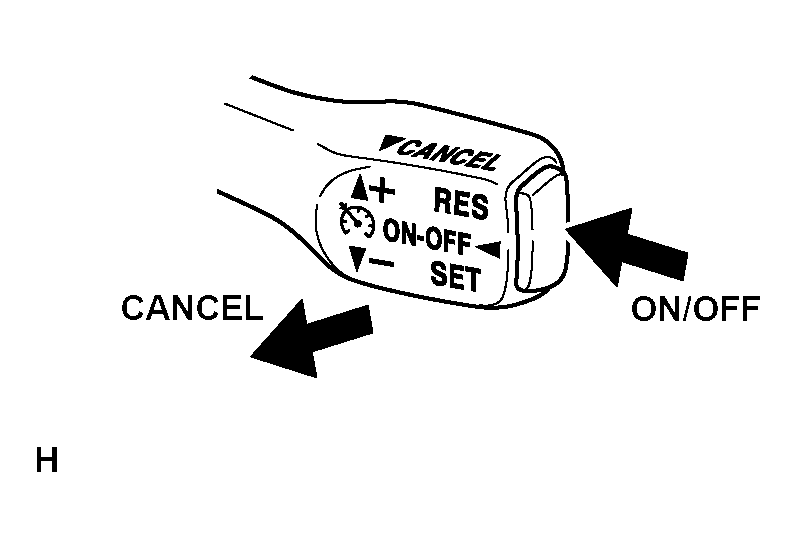

          Fig 4: Inspecting CANCEL Function
          G04475740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Inspect the RES (RESUME) function.
      1. Push the ON-OFF button "on".
      2. Drive at the required speed (40 km/h (25 mph) or higher).
      3. Push the cruise control main switch to -/SET.
      4. When doing one or more of the following, check that the cruise control system is canceled and that the normal driving mode is reset:
        • Depressing the brake pedal
        • Shifting into any position except D
        • Pulling the cruise control main switch to CANCEL
      5. After pushing the cruise control main switch to +/ RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed which was maintained before cancellation.

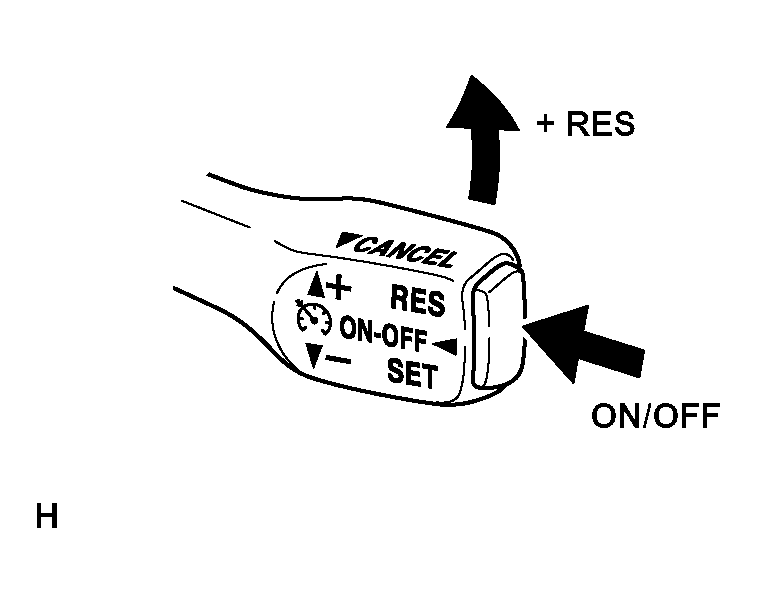

        Fig 5: Inspecting RES (RESUME) Function
        G04475741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
