System Diagram

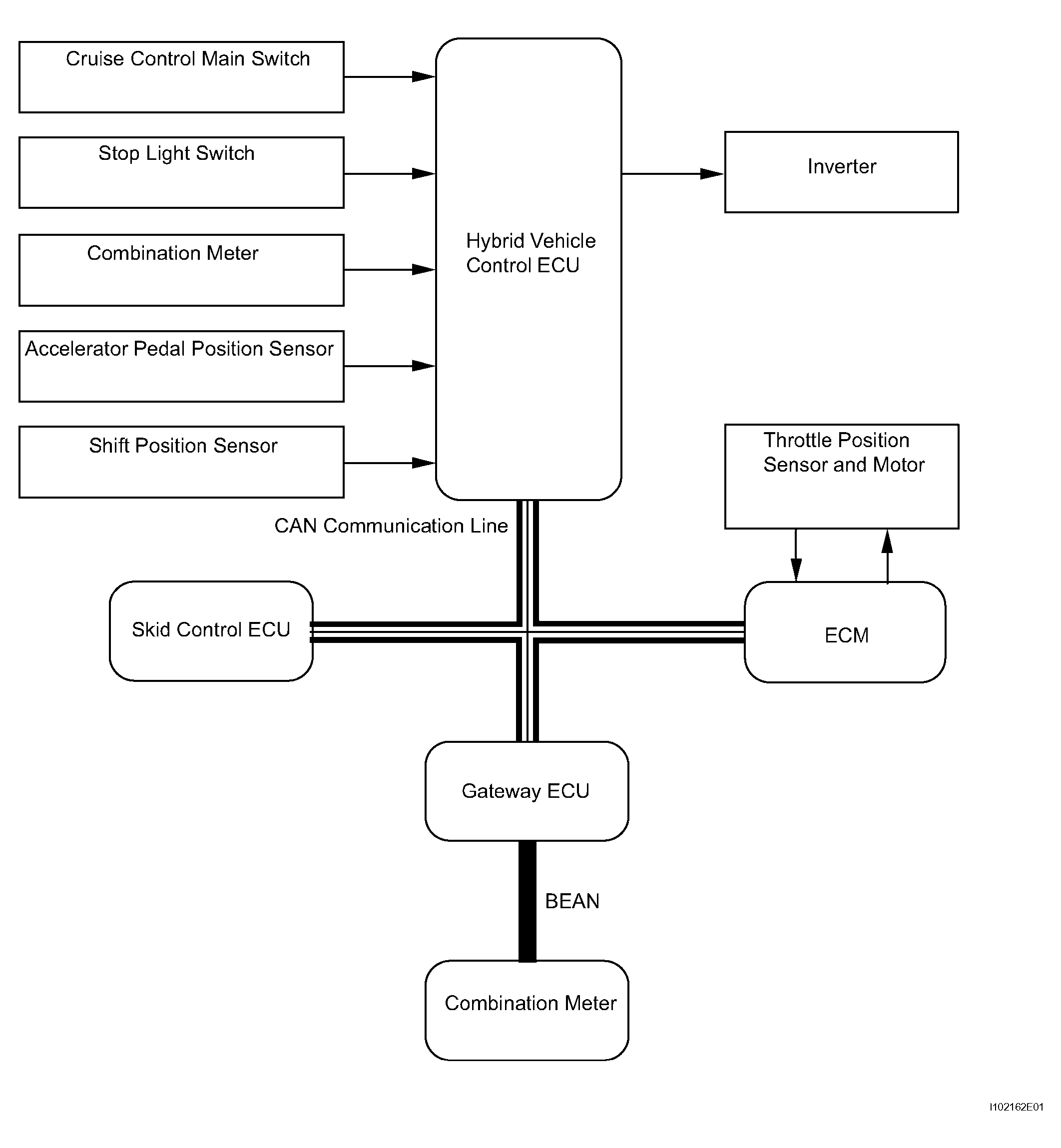

Fig 1: Cruise Control System Diagram
G04475736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication method

COMMUNICATION METHOD CHART

Transmitting ECU Receiver Signals Communication Method
Hybrid Vehicle Control ECU ECM Engine torque demand signal CAN
Combination Meter
  • CRUISE main indicator signal
  • Cruise control warning signal
  • CAN
  • BEAN
Skid Control ECU Hybrid Vehicle Control ECU Cruise control cancel signal CAN
