Outer Rear View Mirror: Components

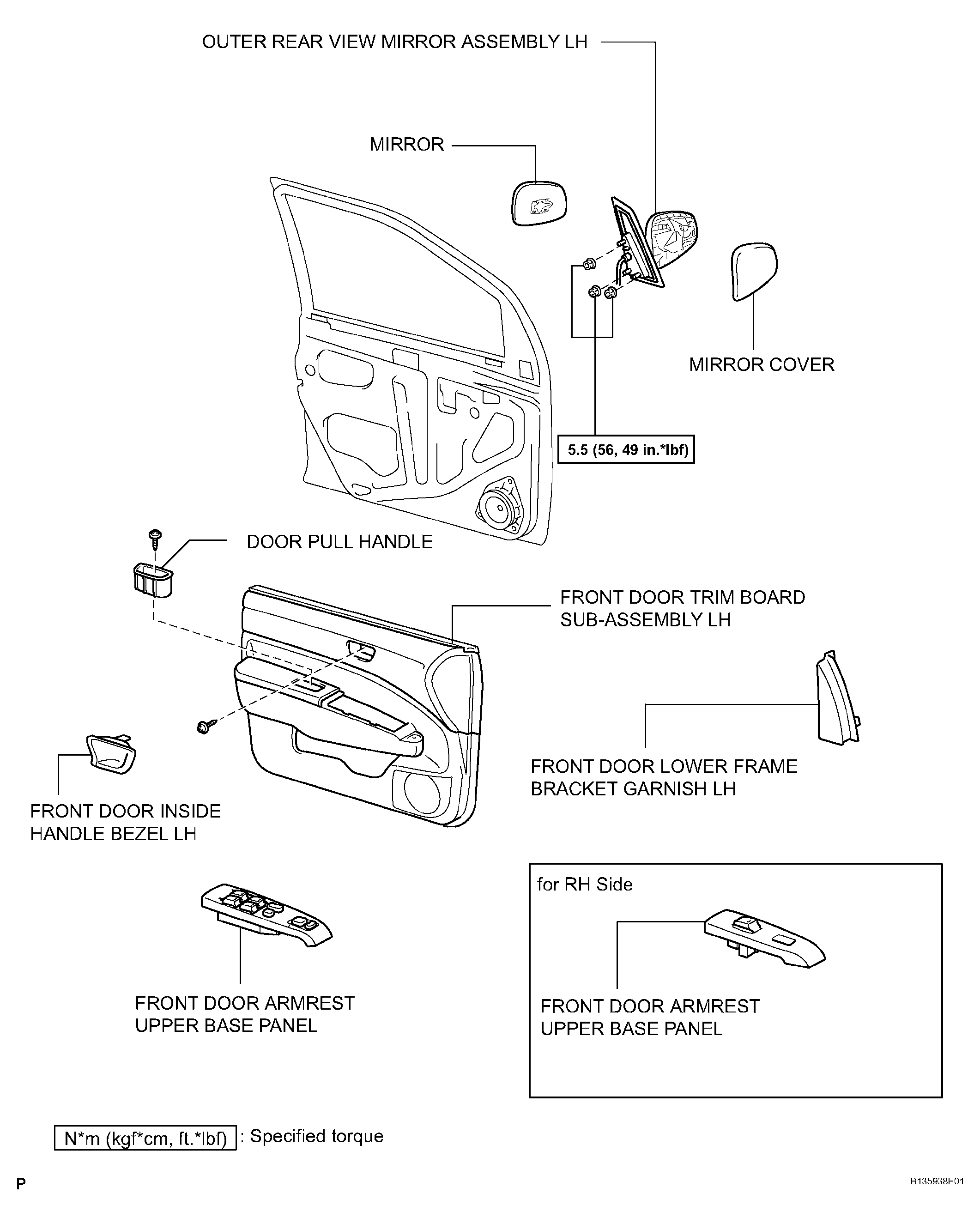

Fig 1: Outer Rear View Mirror Replacement Components -- With Torque Specifications
G04476861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
