Front Seat Assembly: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT SEAT ASSEMBLY
   1. Place the seat in the cabin.
      NOTE: Be careful not to damage the vehicle body.
   2. Connect the connectors under the seat.
   3. Install the 2 bolts on the front side of the seat.

      Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

   4. Install the 2 bolts on the rear side of the seat.

      Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

2. INSPECT AND ADJUST SEAT SLIDE ADJUSTER LOCKS
   1. During sliding operation of the front seat, check that the left and right adjusters move together smoothly and lock simultaneously. If the seat adjusters do not lock simultaneously, loosen the seat fixation bolts to adjust the adjuster's position.
3. INSTALL SEAT TRACK OUTER COVER LH
   1. Attach the 3 claws to install the seat track outer cover.

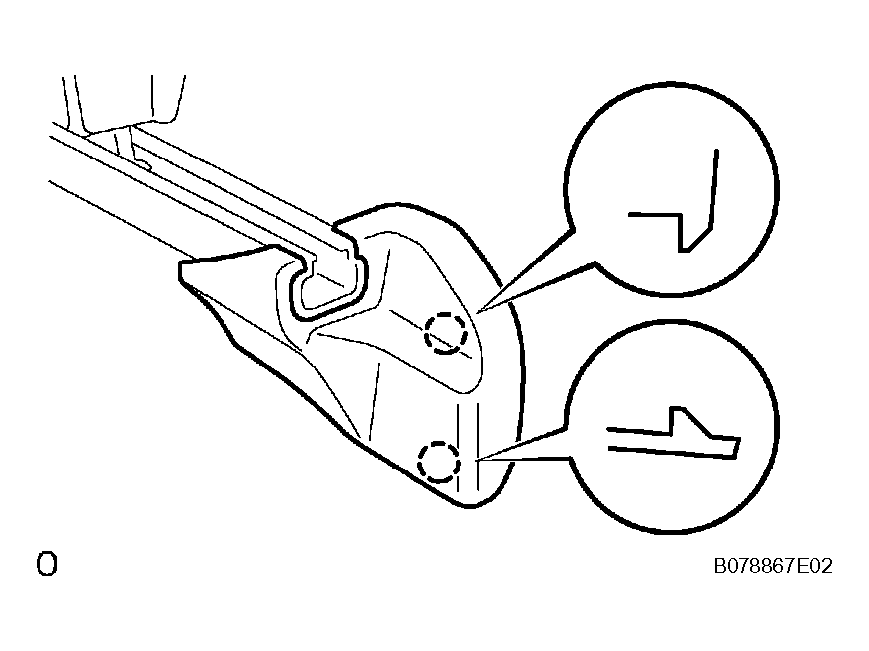

      Fig 1: Installing Seat Track Outer Cover LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL SEAT TRACK INNER BRACKET COVER LH
   1. Attach the 2 claws to install the seat track bracket cover.

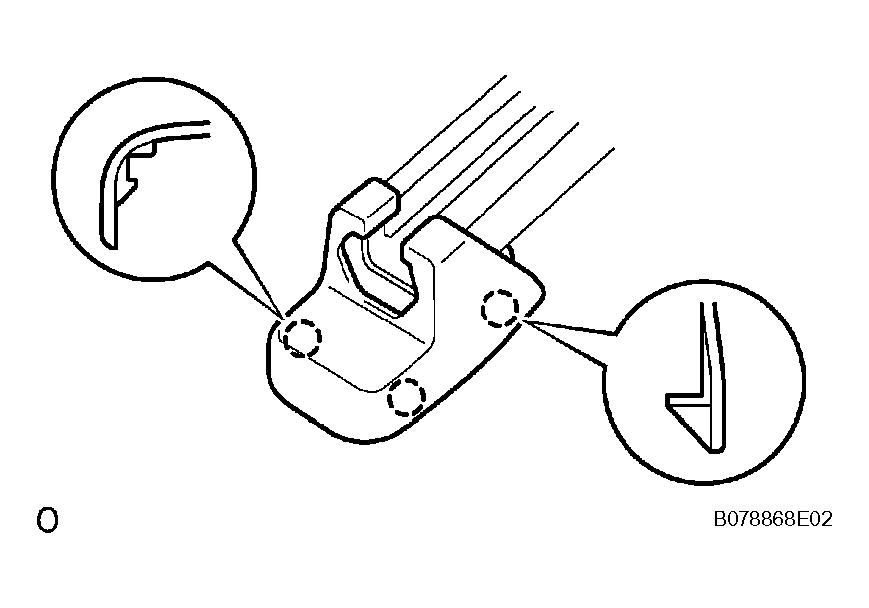

   Fig 2: Installing Seat Track Inner Bracket Cover LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSPECT FRONT SEAT ASSEMBLY (for Front Passenger Side)
   1. Perform the zero point calibration and sensitivity check (See INITIALIZATION ).
7. PERFORM INITIALIZATION
   1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
8. CHECK SRS WARNING LIGHT
   1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
