Oil Filter: Components

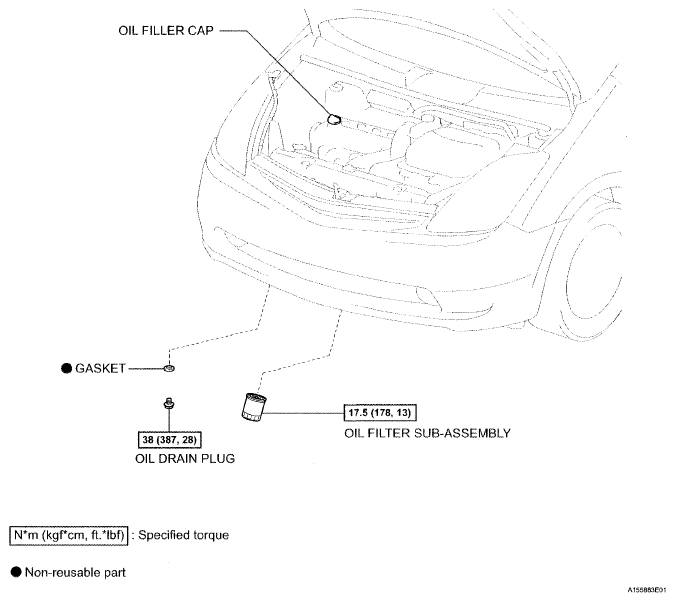

Fig 1: Oil And Oil Filter Replacement Components With Torque Specifications
G05189062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
