On-Vehicle Inspection

CHECK STEERING WHEEL FREE PLAY
1. Stop the vehicle and align the tires straight ahead.
2. Turn the steering wheel gently right and left, and check the steering wheel free play.
  Maximum free play: 30 mm (1.18 in.)

  If the free play exceeds the maximum, replace the steering intermediate shaft sub-assembly or steering gear.

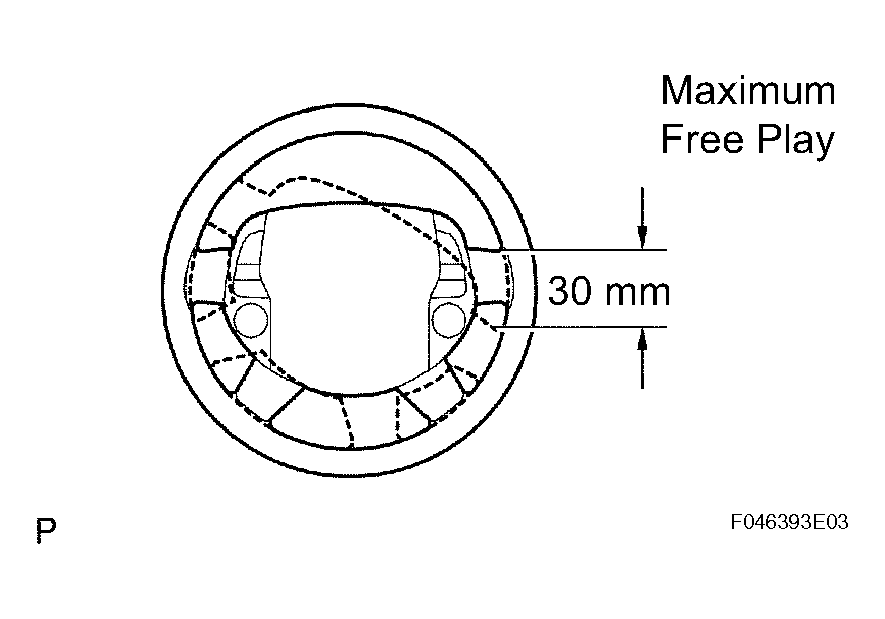

  Fig 1: Checking Steering Wheel Free Play
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
