Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

INSTALLATION

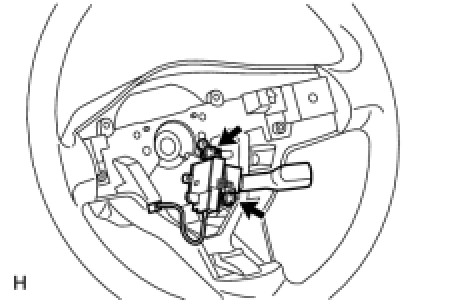

1. INSTALL CRUISE CONTROL MAIN SWITCH
(a) Install the switch with the 2 screws.
Torque: 1.7 to 3.0 Nm (17.34 to 30.60 kgf-cm, 15.04 to 26.55 in-lbf)
(b) Connect the connector.
2. INSTALL STEERING PAD ASSEMBLY Installation
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
