Removal

2AR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

REMOVAL

1. DRAIN ENGINE COOLANT Service and Repair

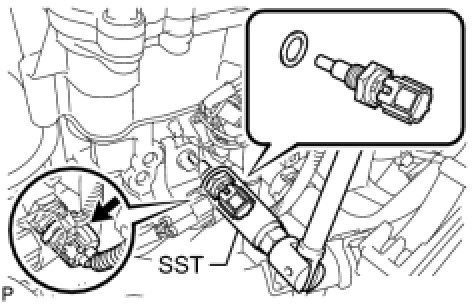

2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR





(a) Disconnect the sensor connector.
(b) Using SST, remove the sensor and gasket.
SST: 09817-33190
