Torque Specifications
SERVICE SPECIFICATIONS: DIFFERENTIAL: TORQUE SPECIFICATIONS

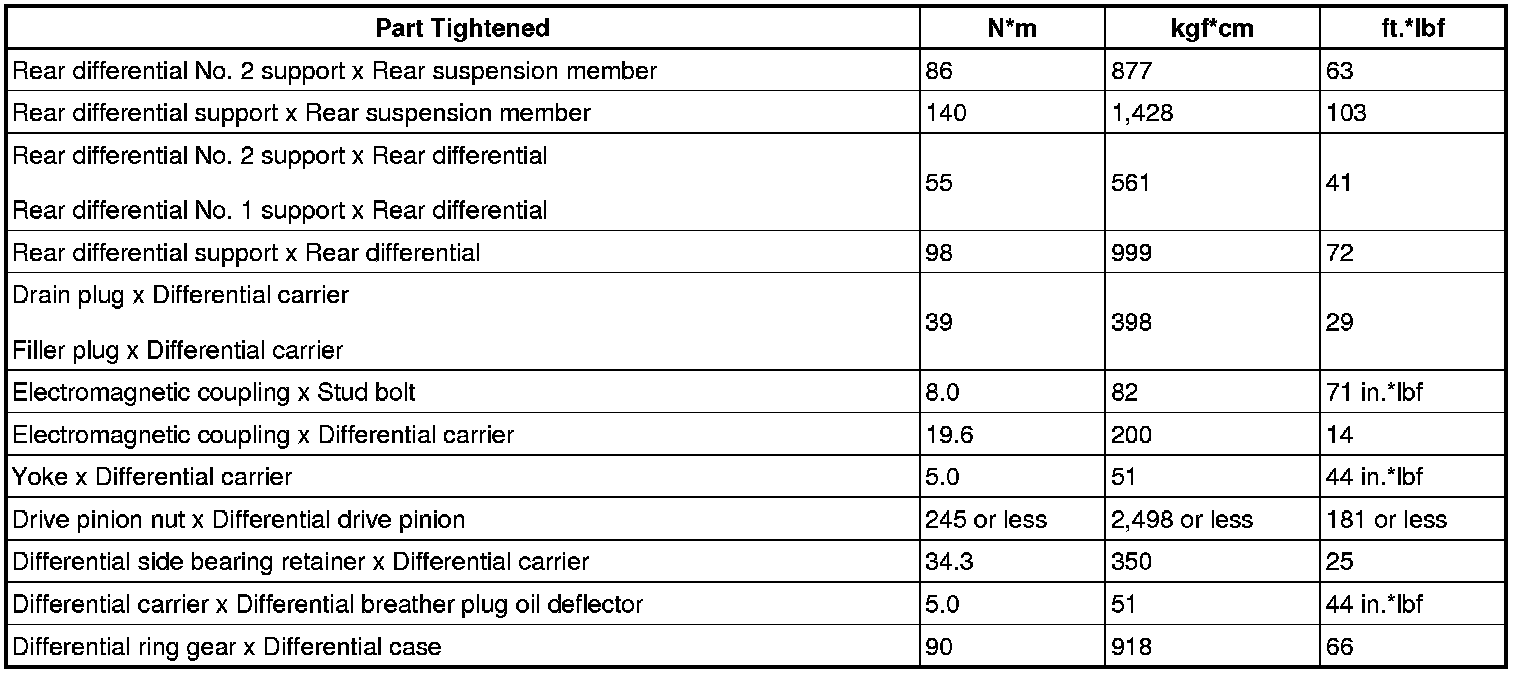

TORQUE SPECIFICATIONS
Differential
