RAV4 Base, 2.5 F, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Anti-Theft Systems
>>
Door Lock
>>
Smart Key System
>>
Front Passenger Side Door Entry Lock Function does not Operate
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Passenger Side Door Entry Lock Function does not Operate: Wiring Diagram

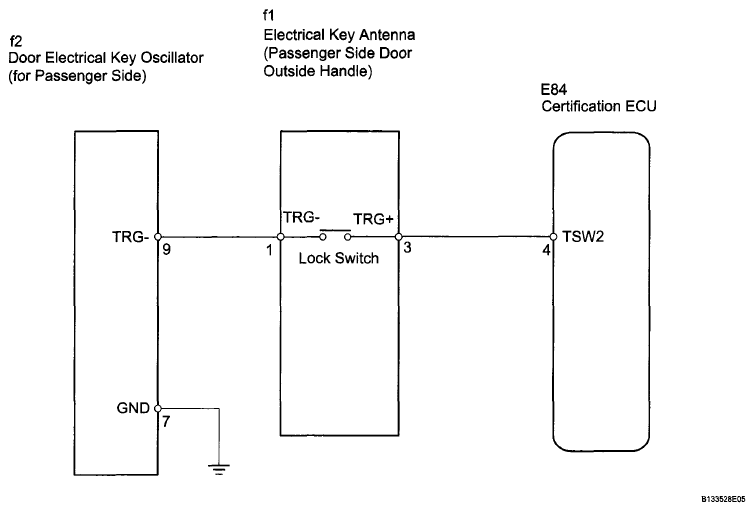

Fig 1: Front Passenger Side Door Entry Lock Function Does Not Operate - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
