Navigation Receiver Assembly Power Source Circuit: Wiring Diagram

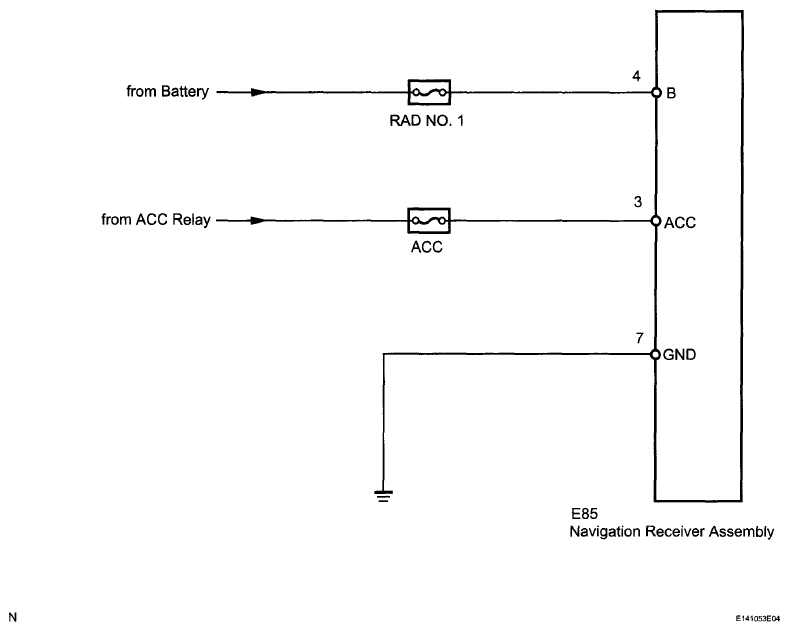

Fig 1: Navigation Receiver Assembly Power Source Circuit Diagram
G06000460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
