Power Source Mode does not Change: Wiring Diagram

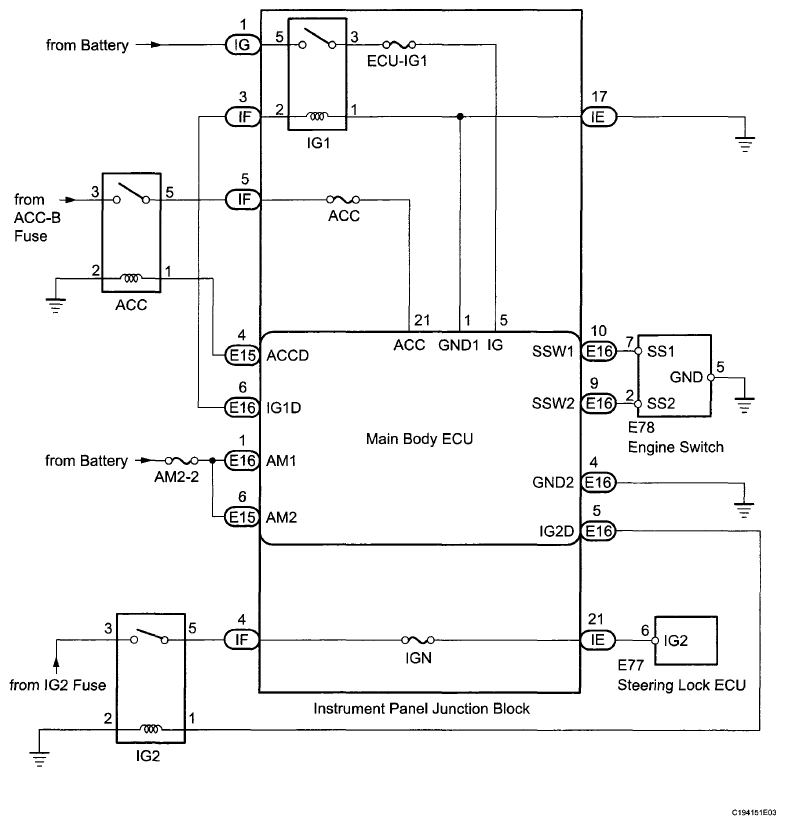

Fig 1: Power Source Mode - Wiring Diagram
G05999195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
