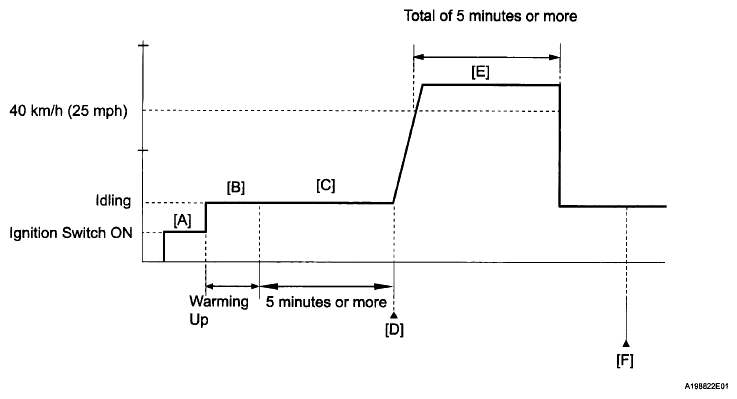

Confirmation Driving Pattern
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON and turn the Techstream on.
- Clear DTCs (even if no DTCs are stored, perform the clear DTC operation) [A].
- Start the engine and warm it up until the ECT reaches 75°C (167°F) or higher [B].
- Idle the engine for 5 minutes or more [C].
HINT:
During steps [A] through [C], if the change in the intake air temperature is below 1°C (1.8°F), the intake air temperature sensor (MAF meter) is malfunctioning. It is not necessary to continue this procedure.
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
- Input the DTC: P0111.
- Check the DTC judgment result [D].TESTER DISPLAY DESCRIPTION
Tester Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
UNKNOWN - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
CAUTION: When performing the confirmation driving pattern, obey all speed limits and traffic laws.HINT:
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [E] and [F].
- Drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more [E].
- Check the DTC judgment result again [F].
HINT:
If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [E] and [F] again.
- If the test result is UNKNOWN, enter the following menus: Powertrain / Engine and ECT / Trouble Code / Pending.
- Read Pending DTCs.
HINT:
If a pending DTC is output, the system is malfunctioning.
- If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs (See DTC CHECK / CLEAR
).
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
