DTC P0112 Intake Air Temperature Circuit Low Input; DTC P0113 Intake Air Temperature Circuit High Input: Wiring Diagram

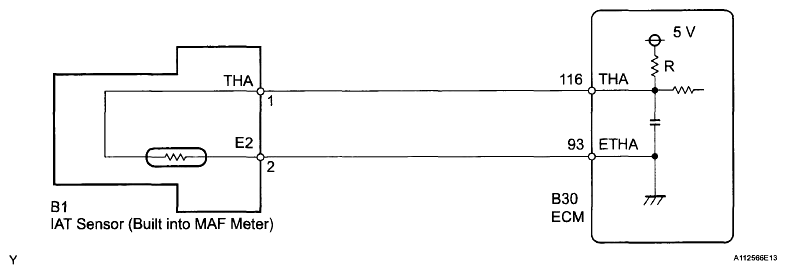

Fig 1: Intake Air Temperature Circuit Low Input - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
