Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

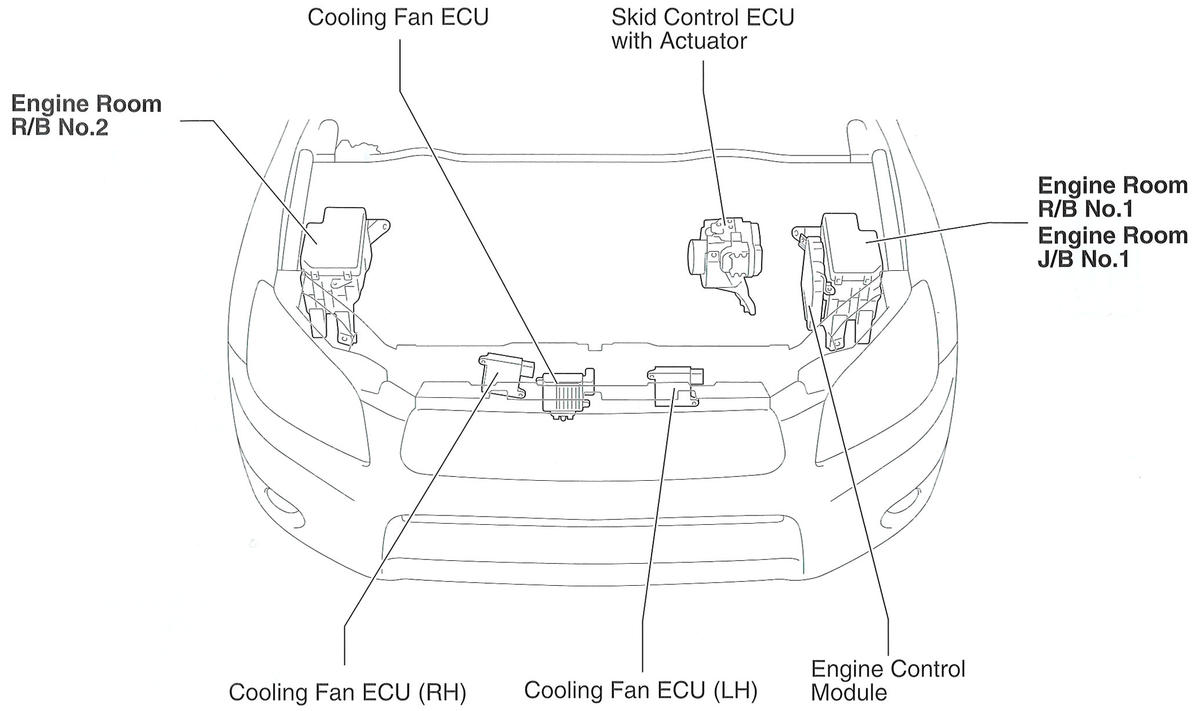

Fig 1: Engine Compartment

G00467295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

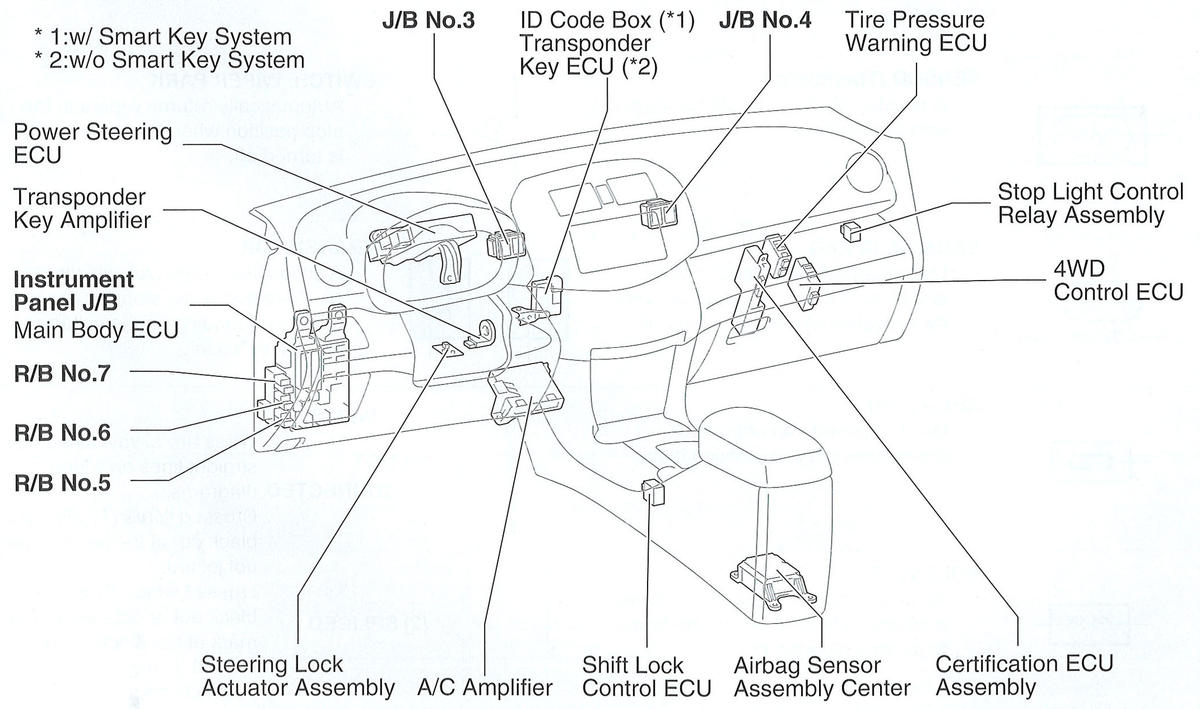

Fig 2: Dash

G00467296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

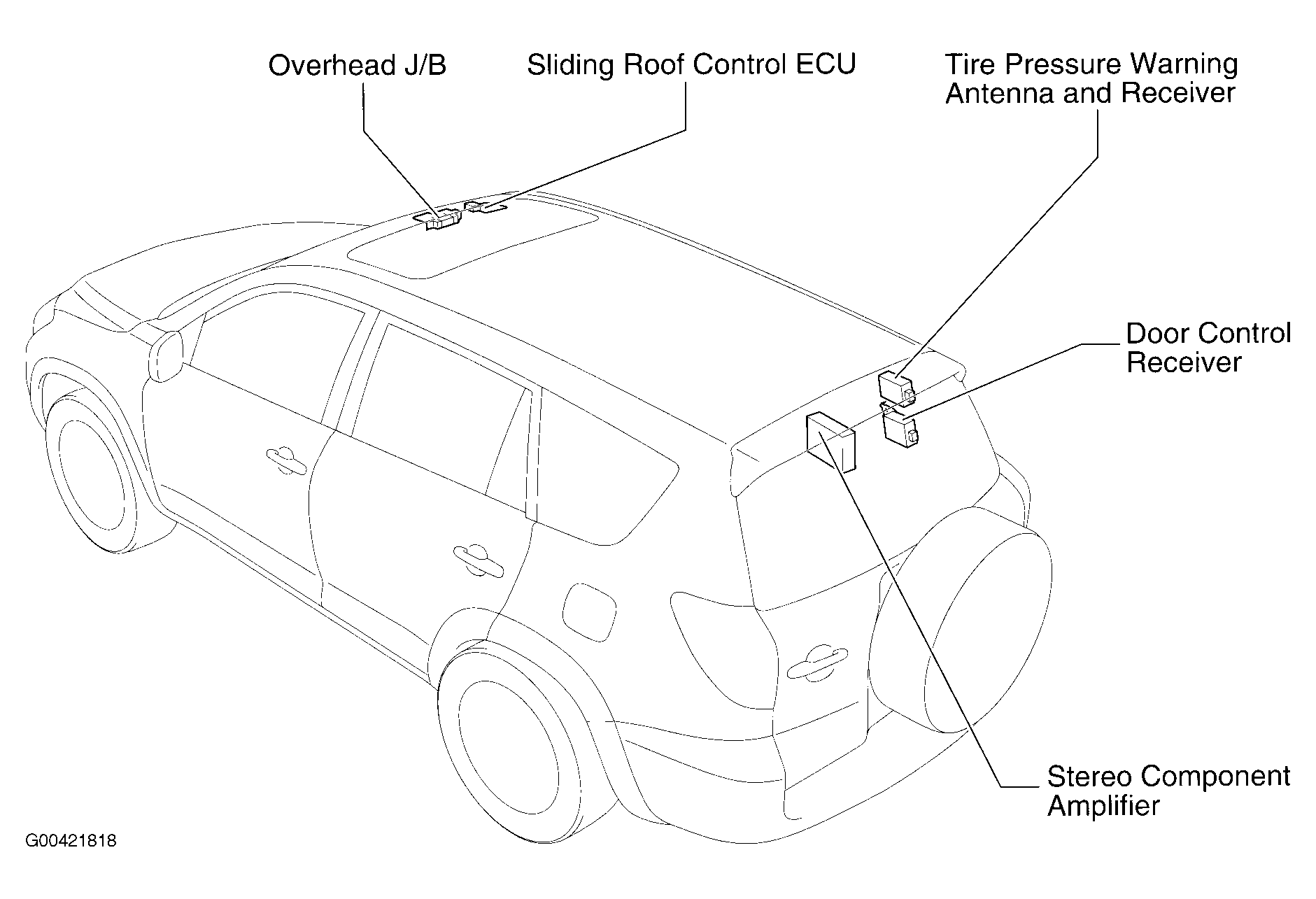

Fig 3: Vehicle Overview

G00421818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

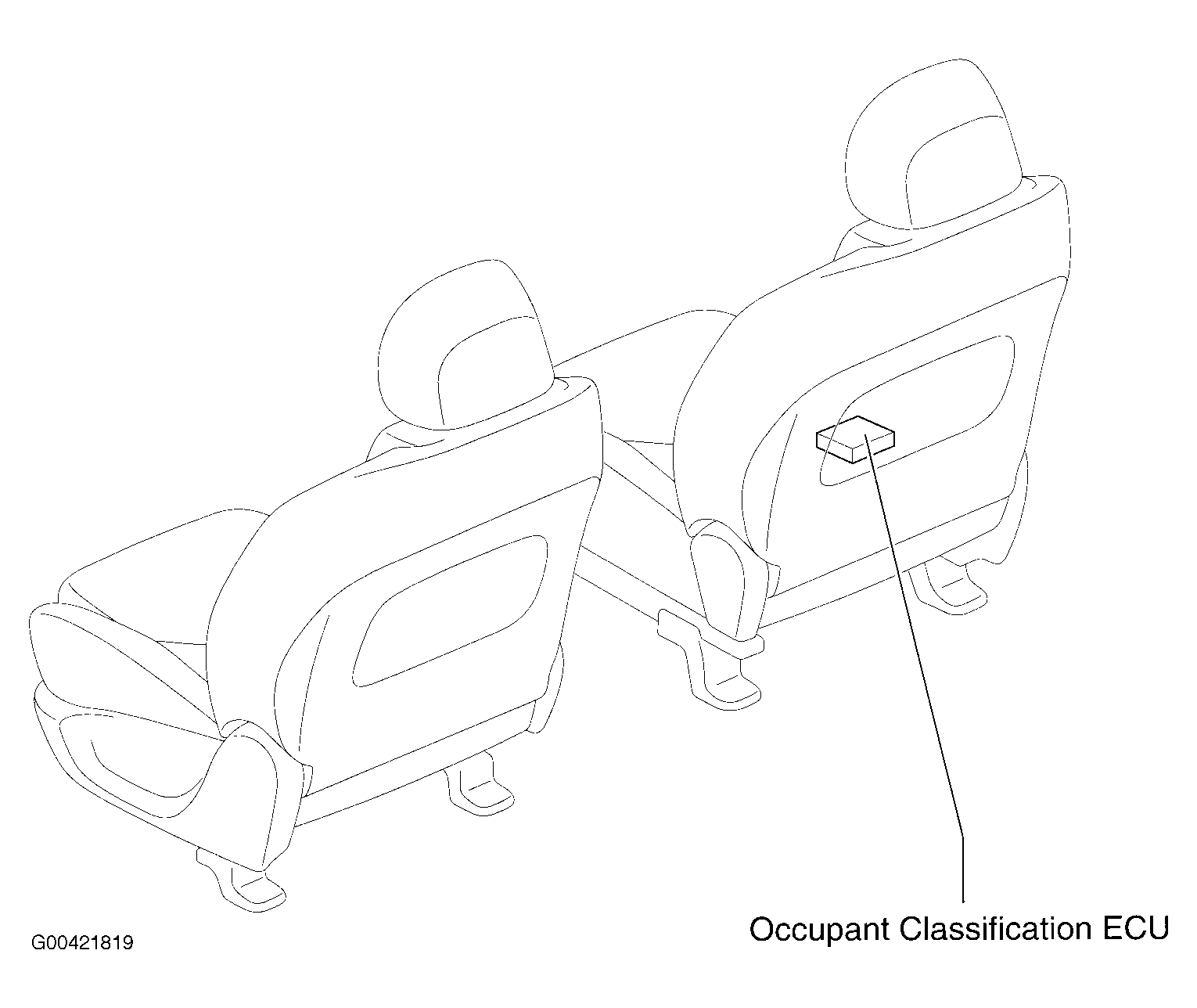

Fig 4: Front Seats

G00421819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

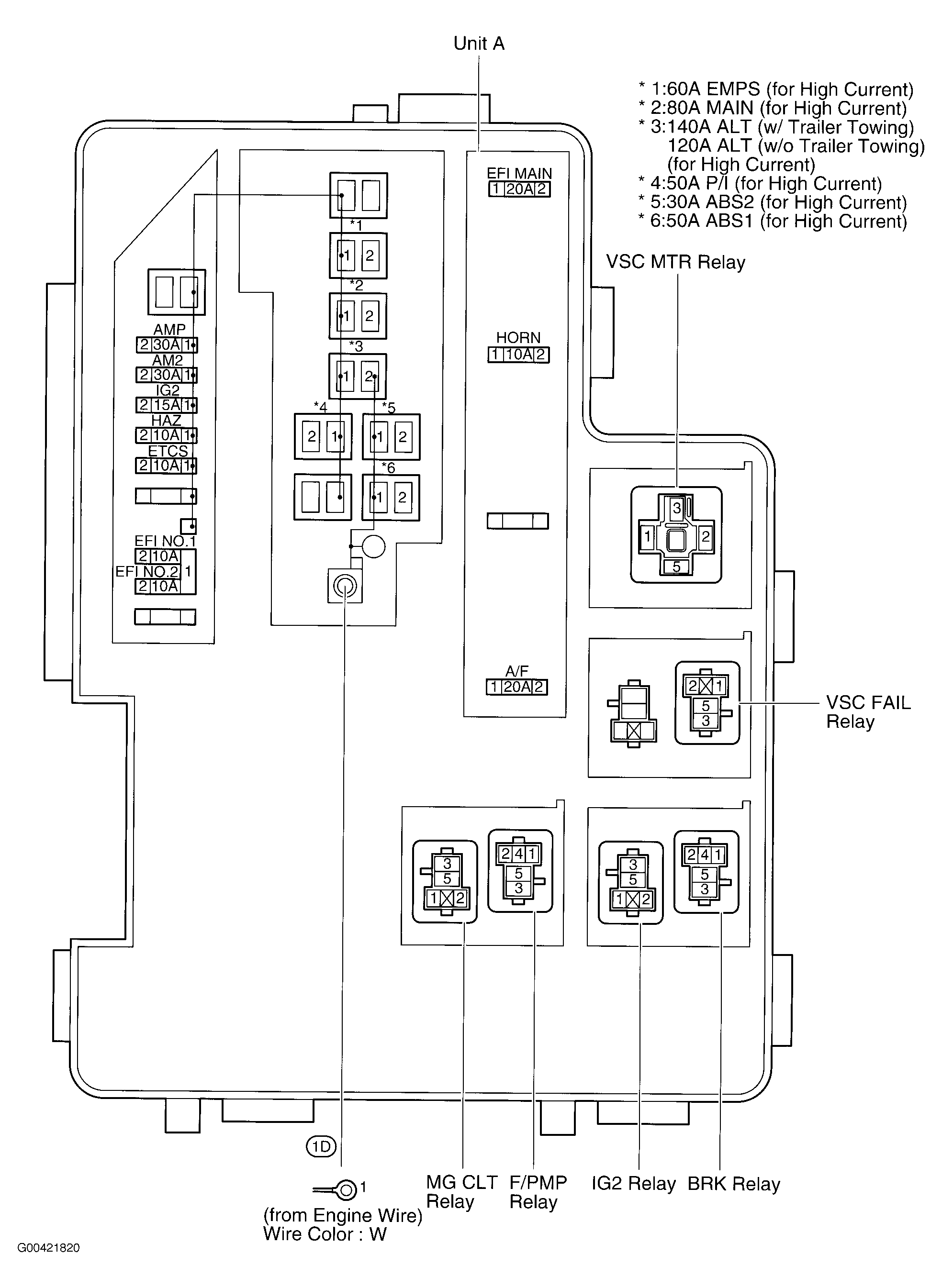

Fig 5: Engine Room R/B No. 1

G00421820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

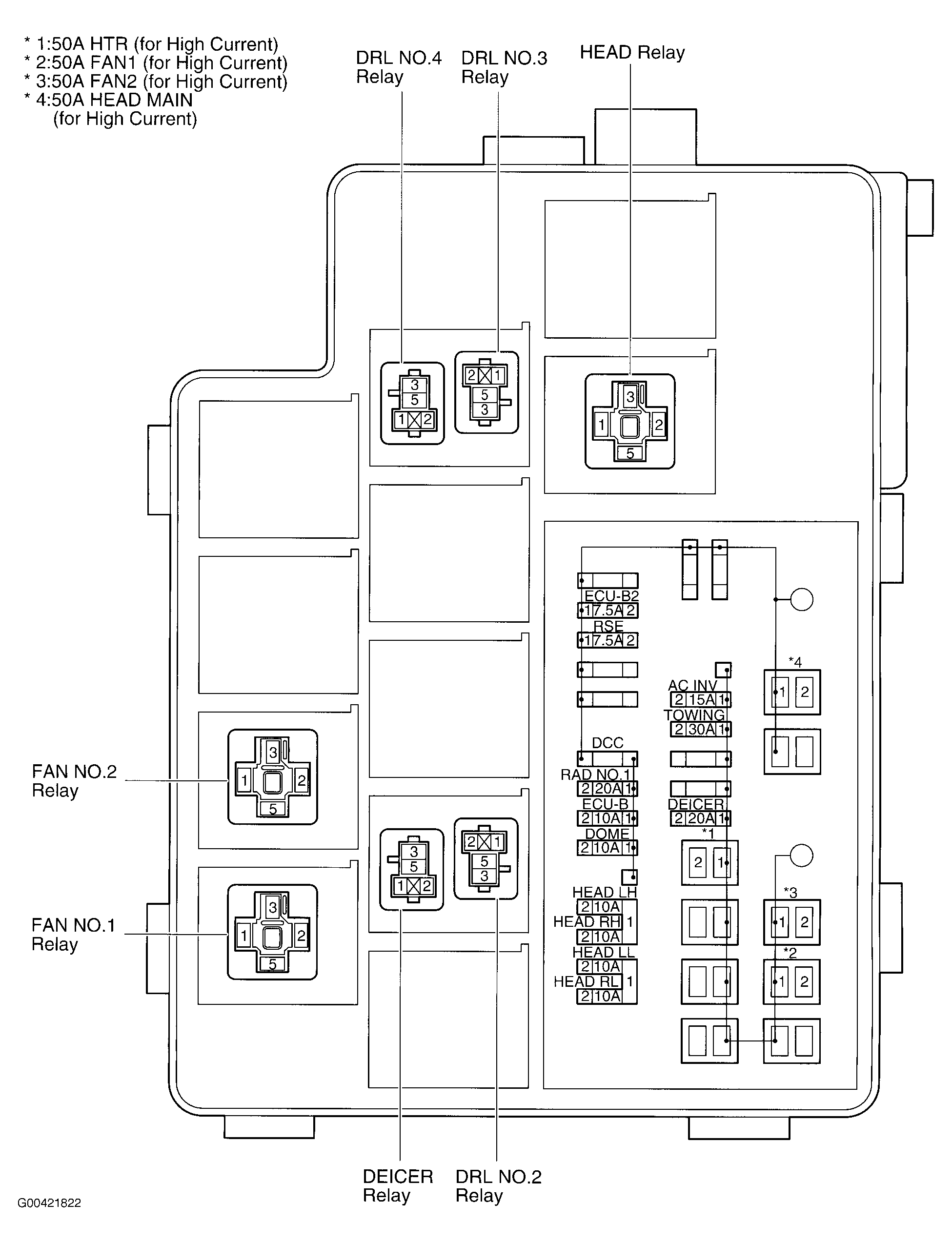

Fig 6: Engine Room R/B No. 2 (3.5L)

G00421822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

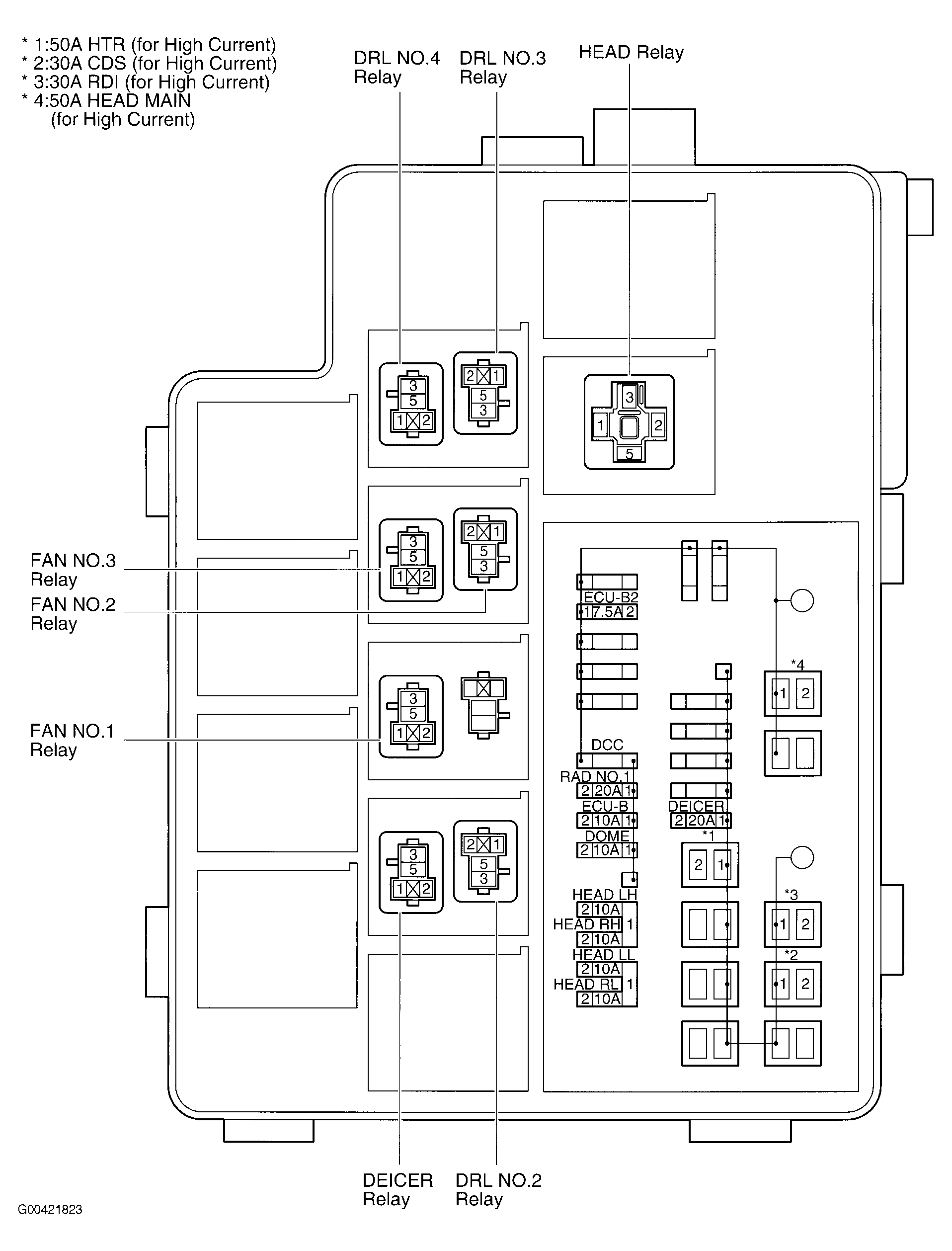

Fig 7: Engine Room R/B No. 2 (2.5L)

G00421823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

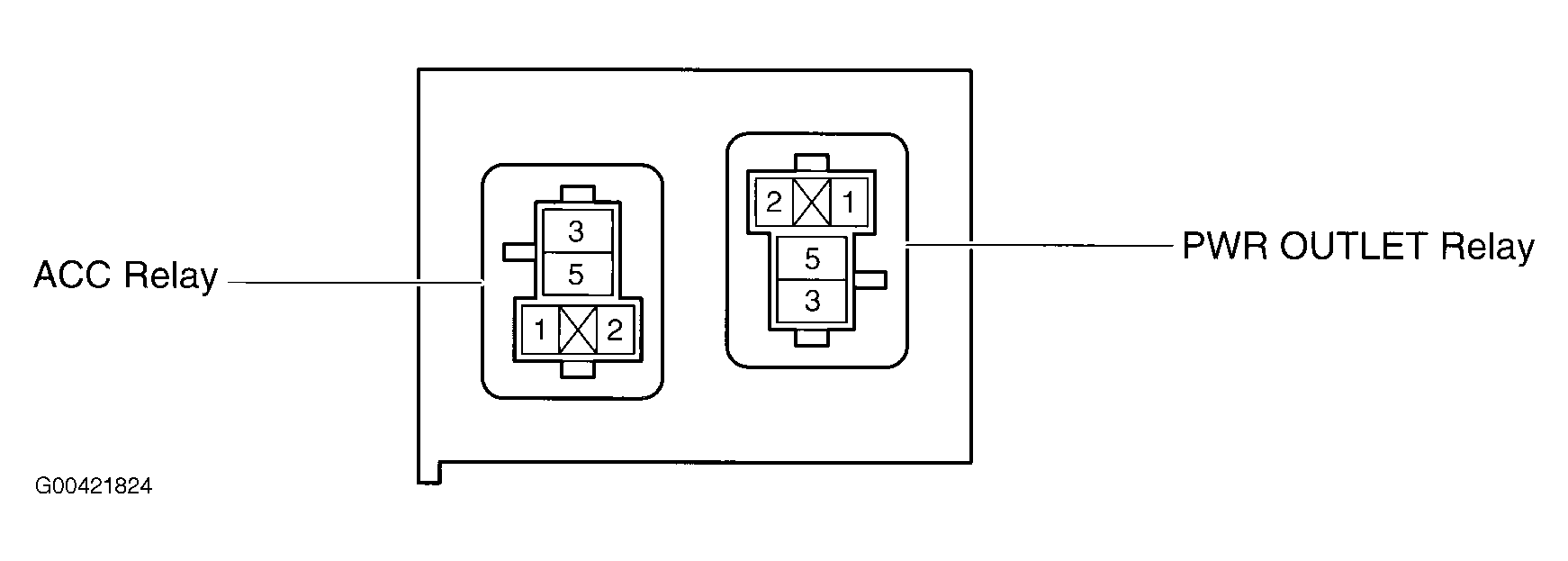

Fig 8: R/B No. 5

G00421824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

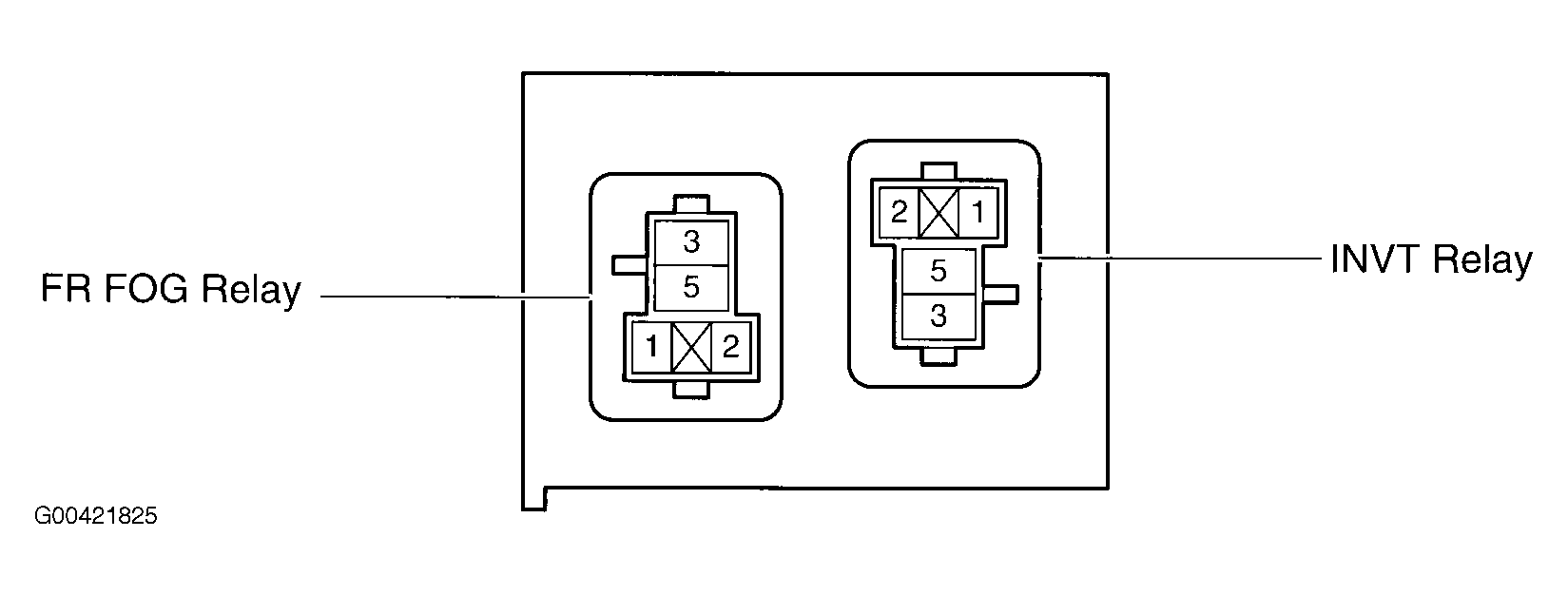

Fig 9: R/B No. 6

G00421825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

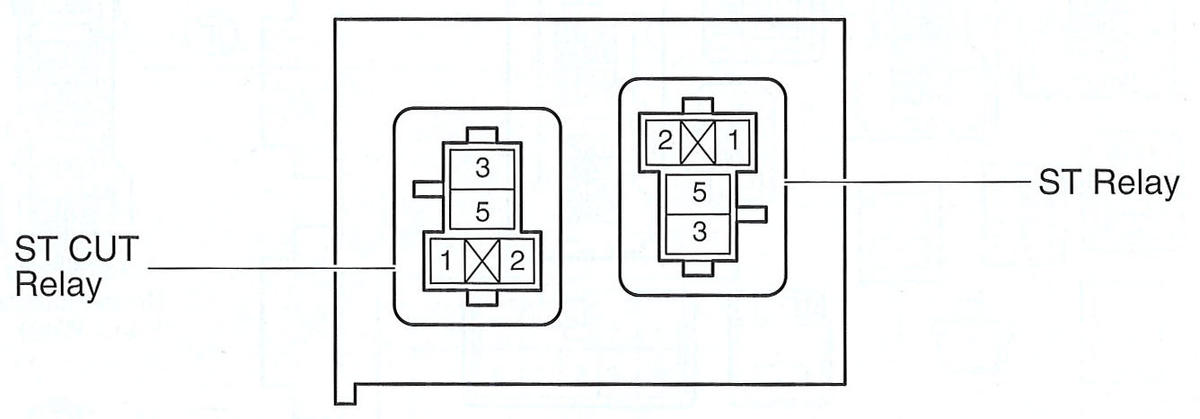

Fig 10: R/B No. 7

G00467298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

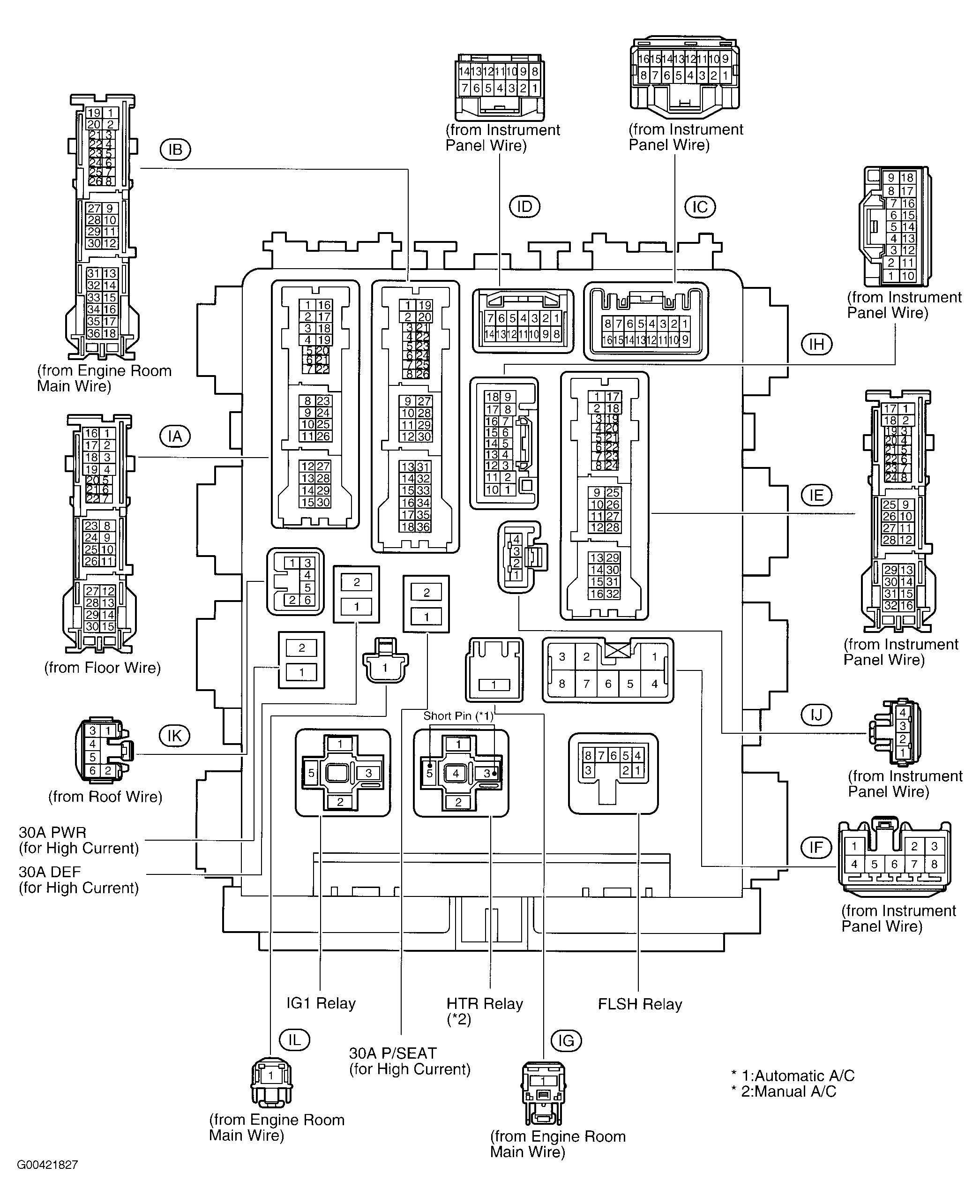

Fig 11: Instrument Panel J/B

G00421827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

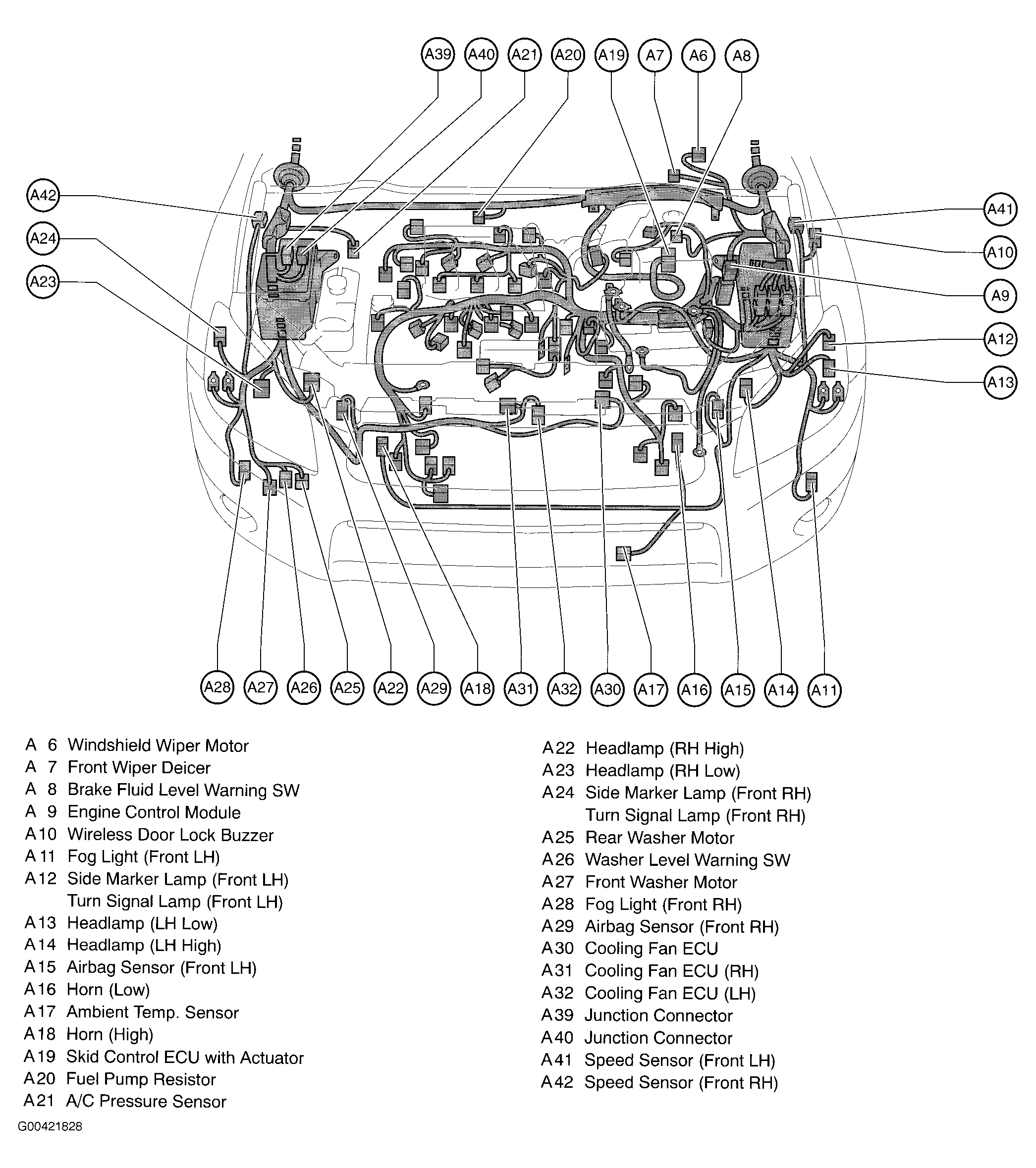

Fig 12: Engine Compartment (3.5L)

G00421828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

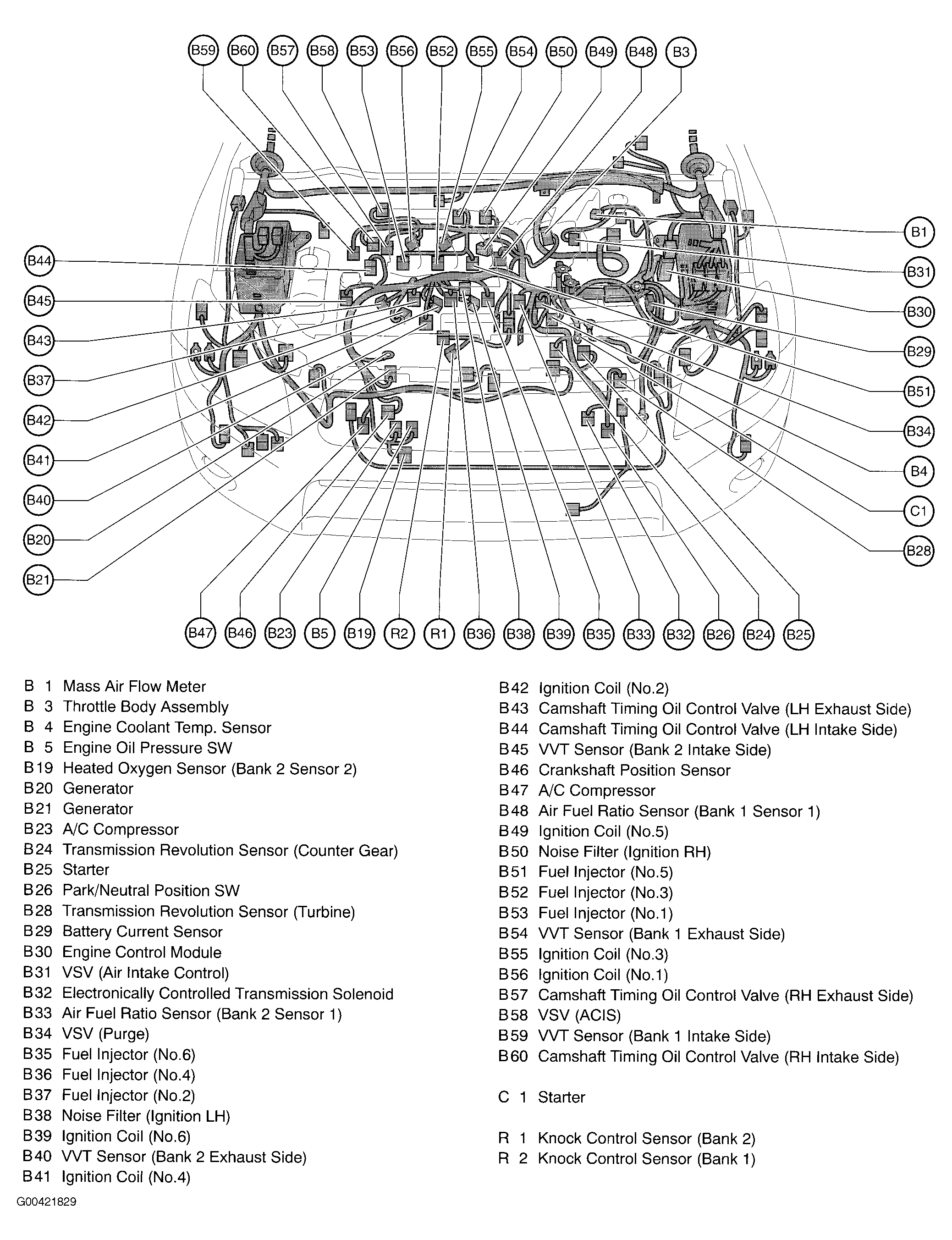

Fig 13: Engine Compartment (3.5L)

G00421829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

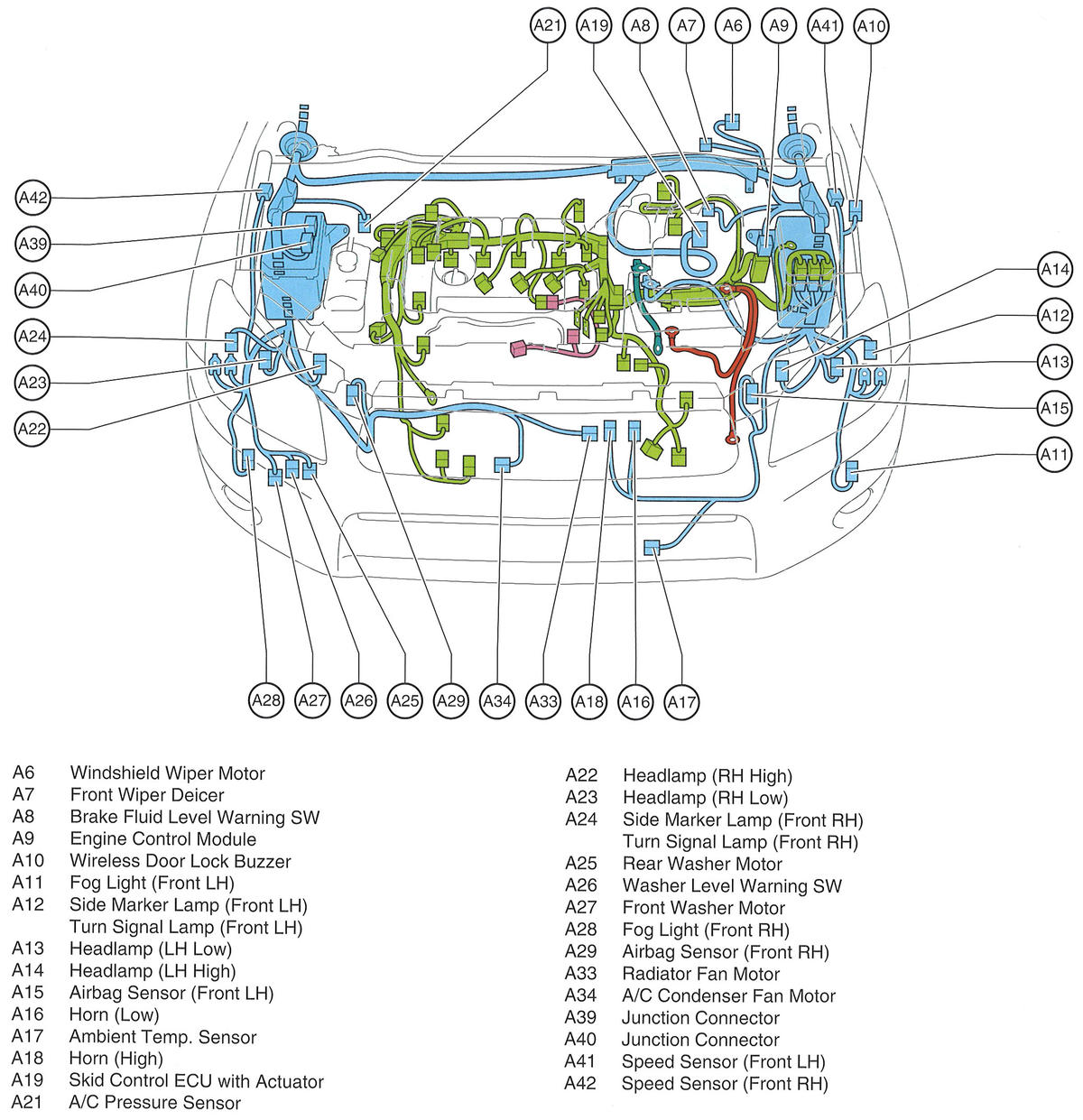

Fig 14: Engine Compartment (2.5L)

G00467301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

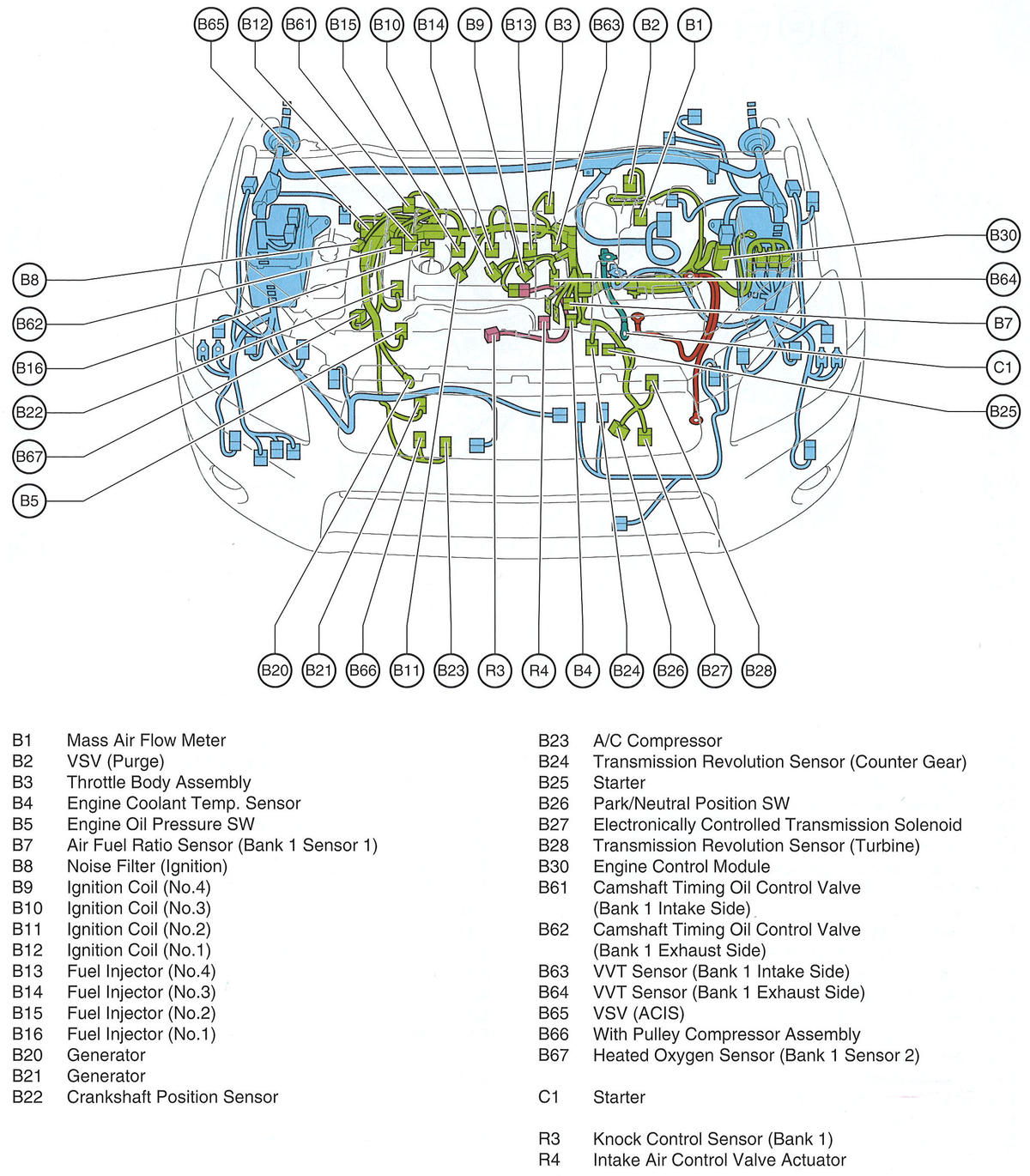

Fig 15: Engine Compartment (2.5L)

G00467302

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

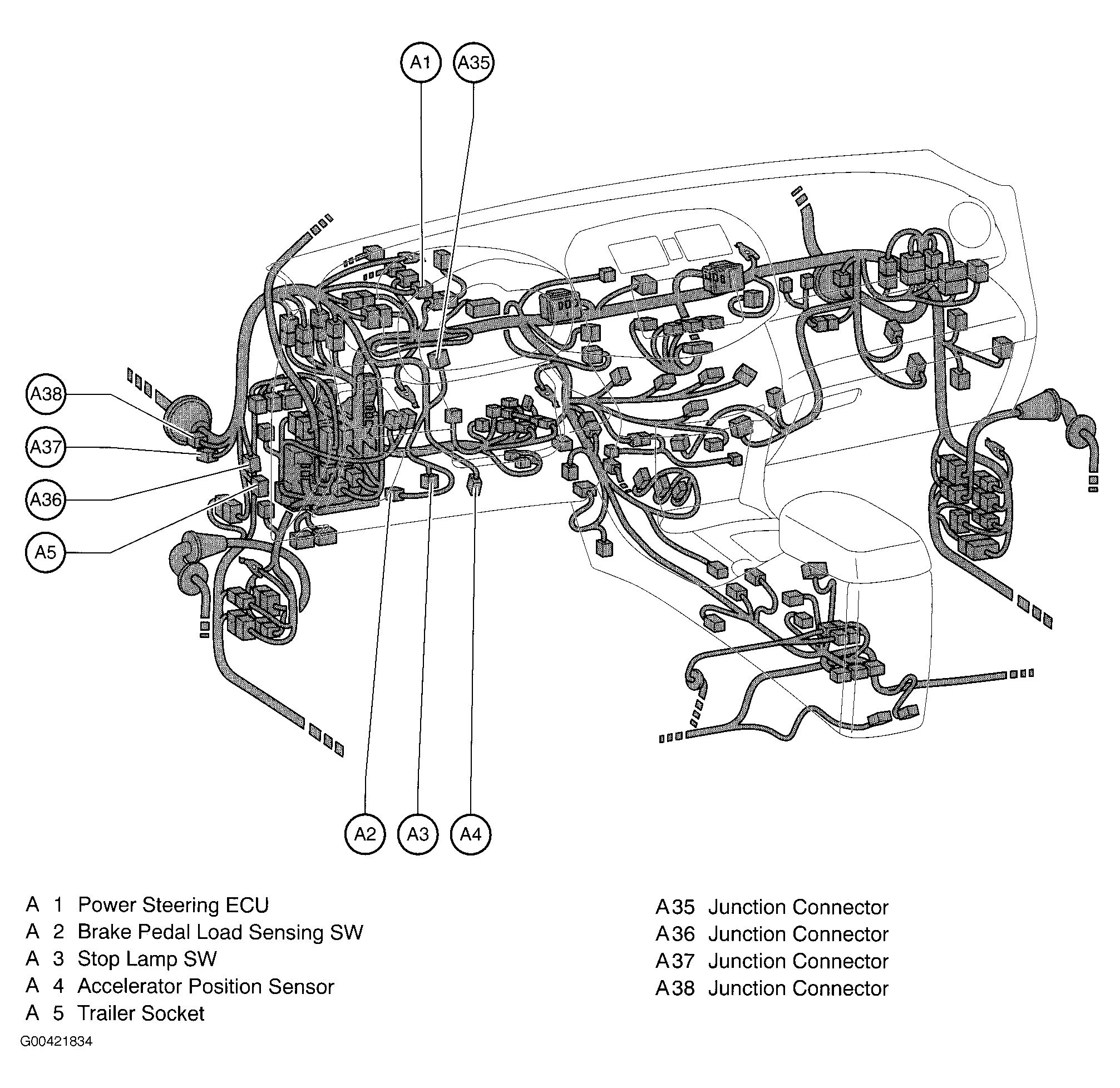

Fig 16: Dash

G00421834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

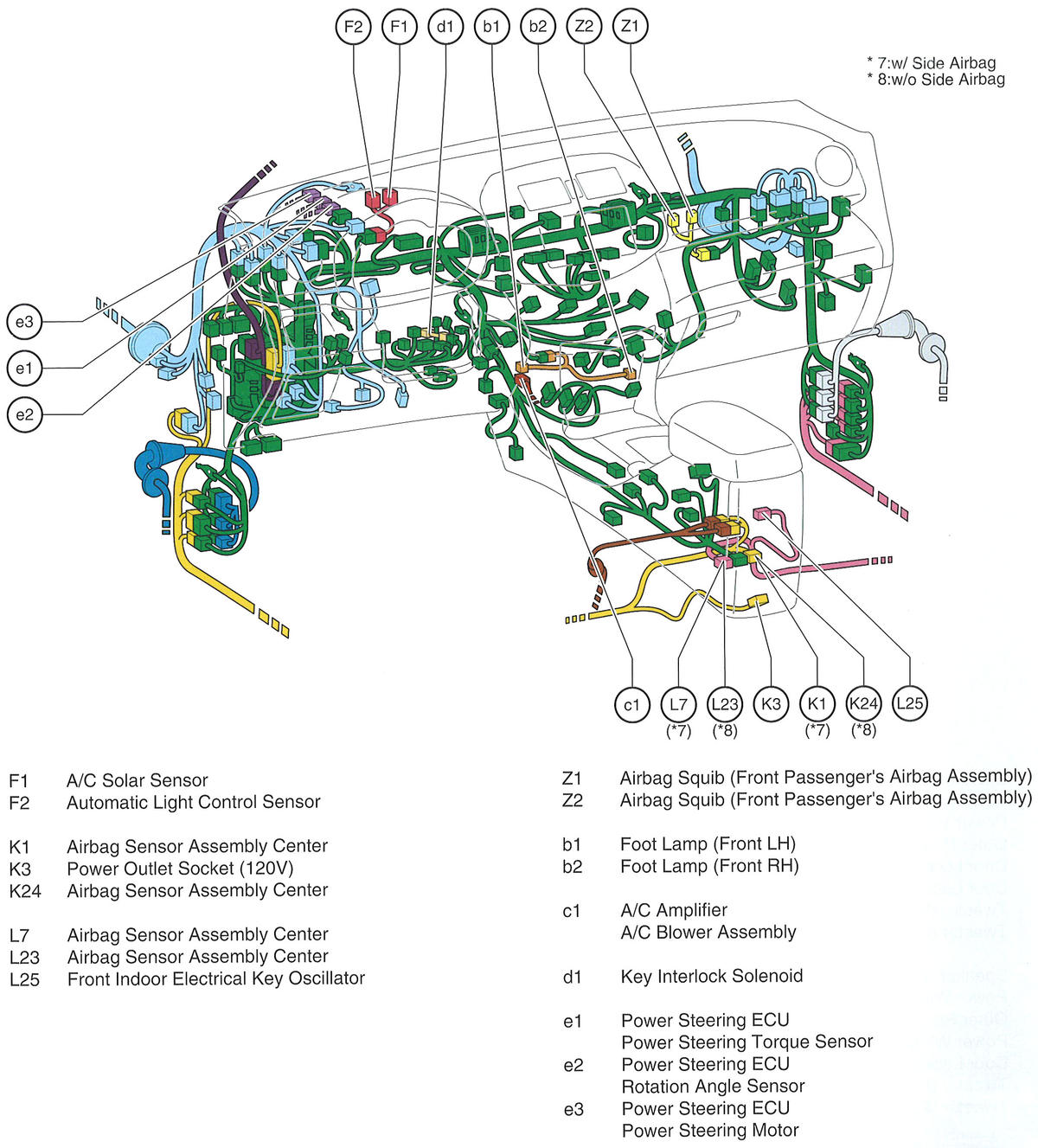

Fig 17: Dash

G00467306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

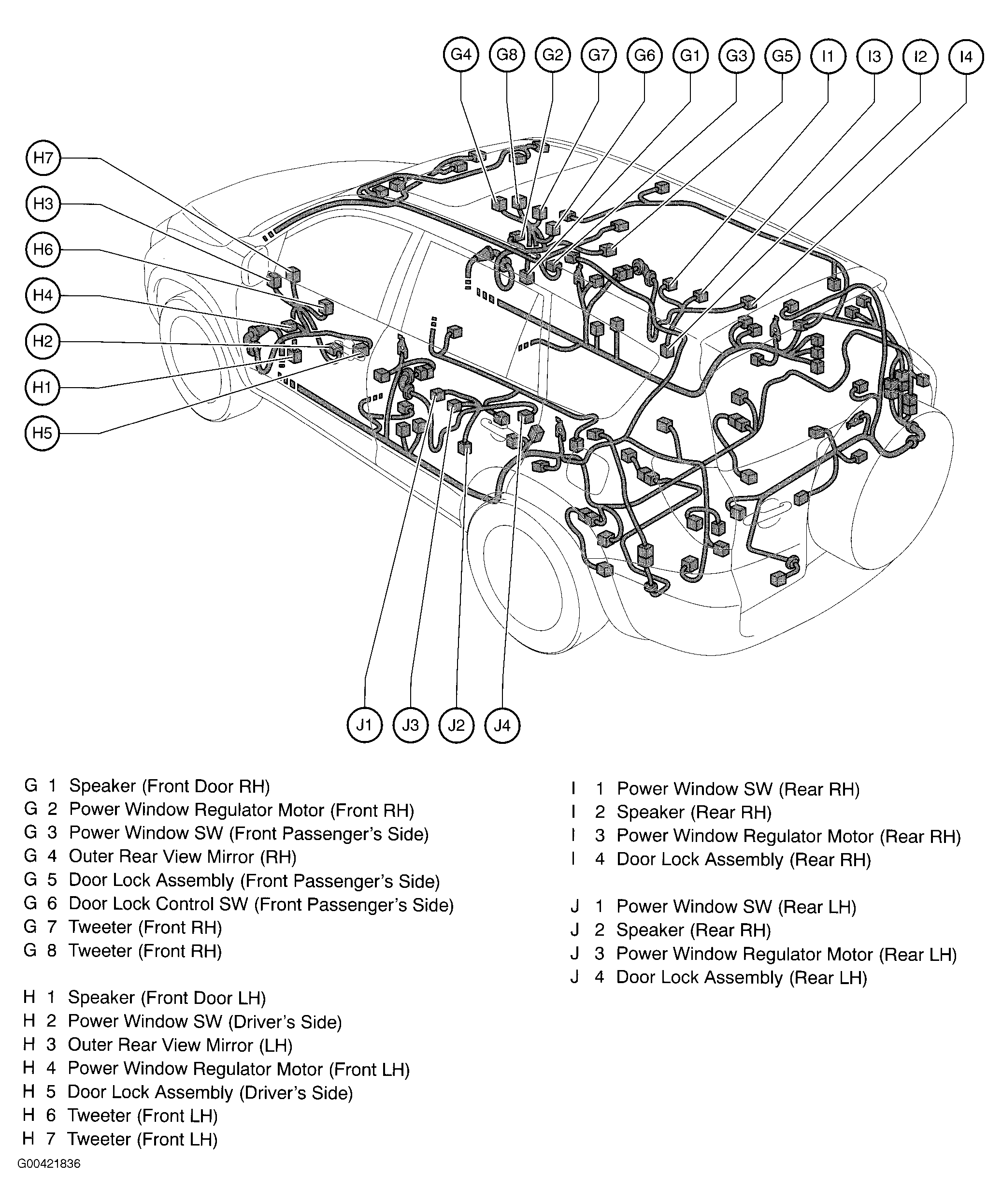

Fig 18: Vehicle Overview

G00421836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

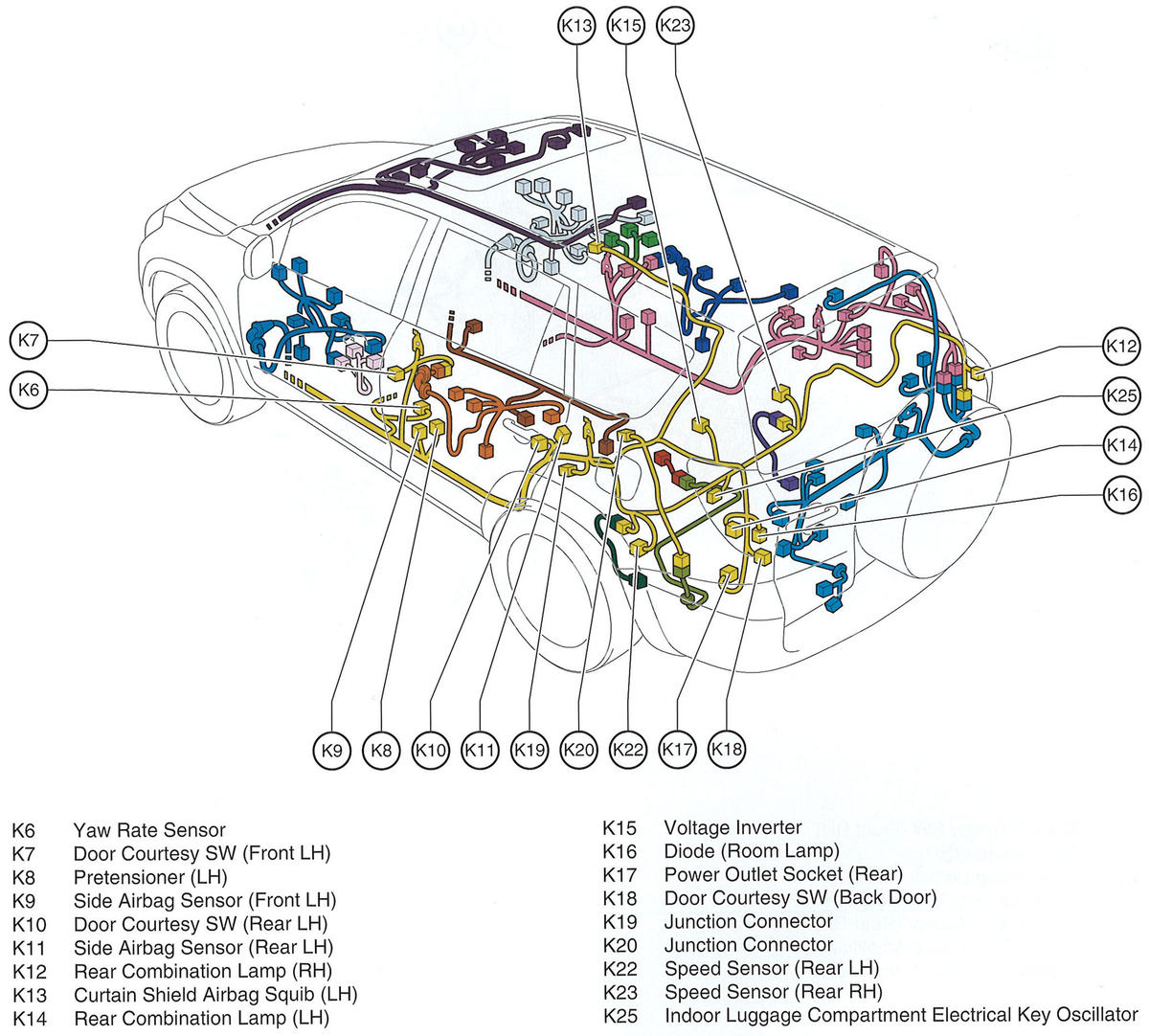

Fig 19: Vehicle Overview

G00467308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

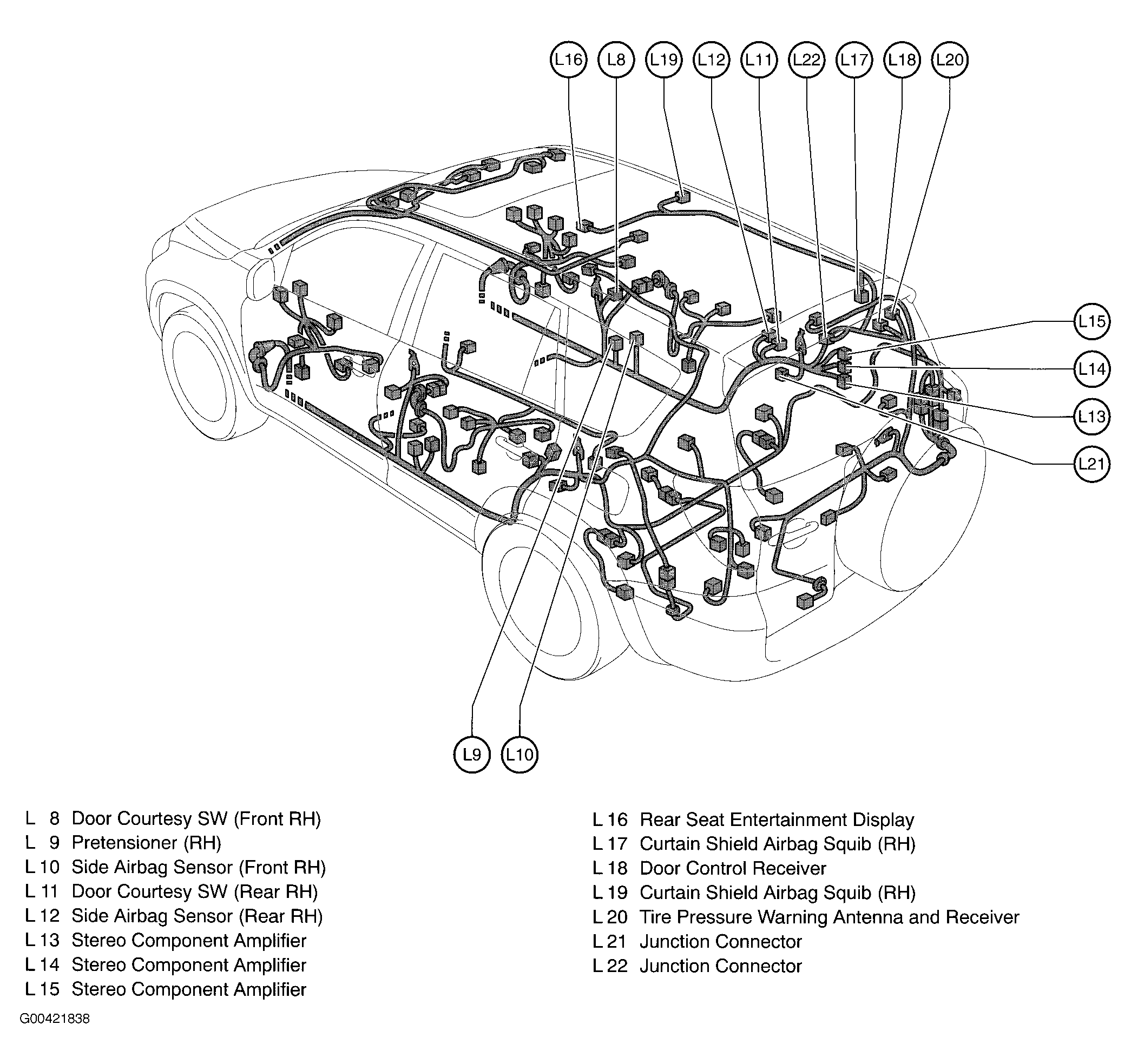

Fig 20: Vehicle Overview

G00421838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

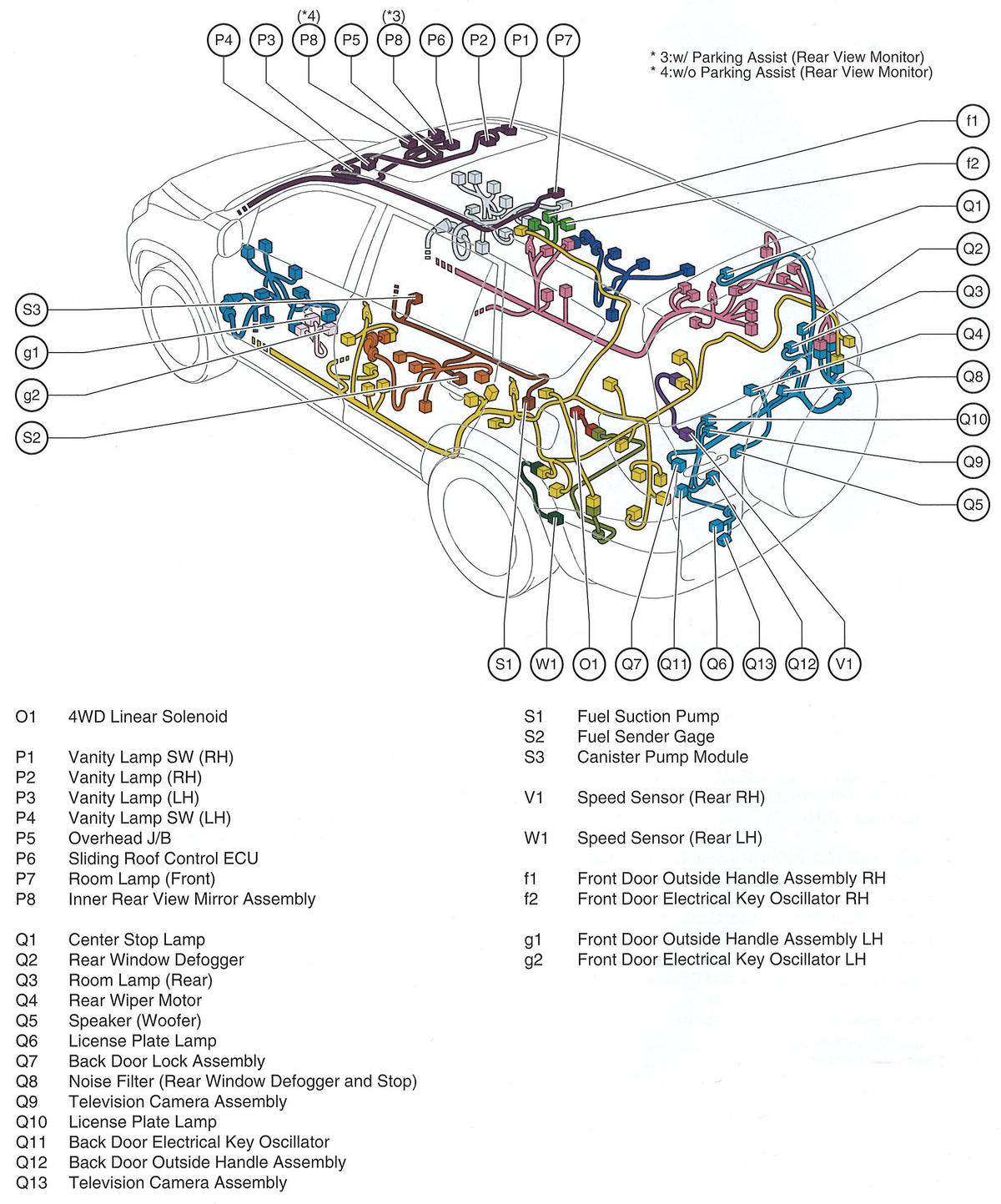

Fig 21: Vehicle Overview

G00467310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

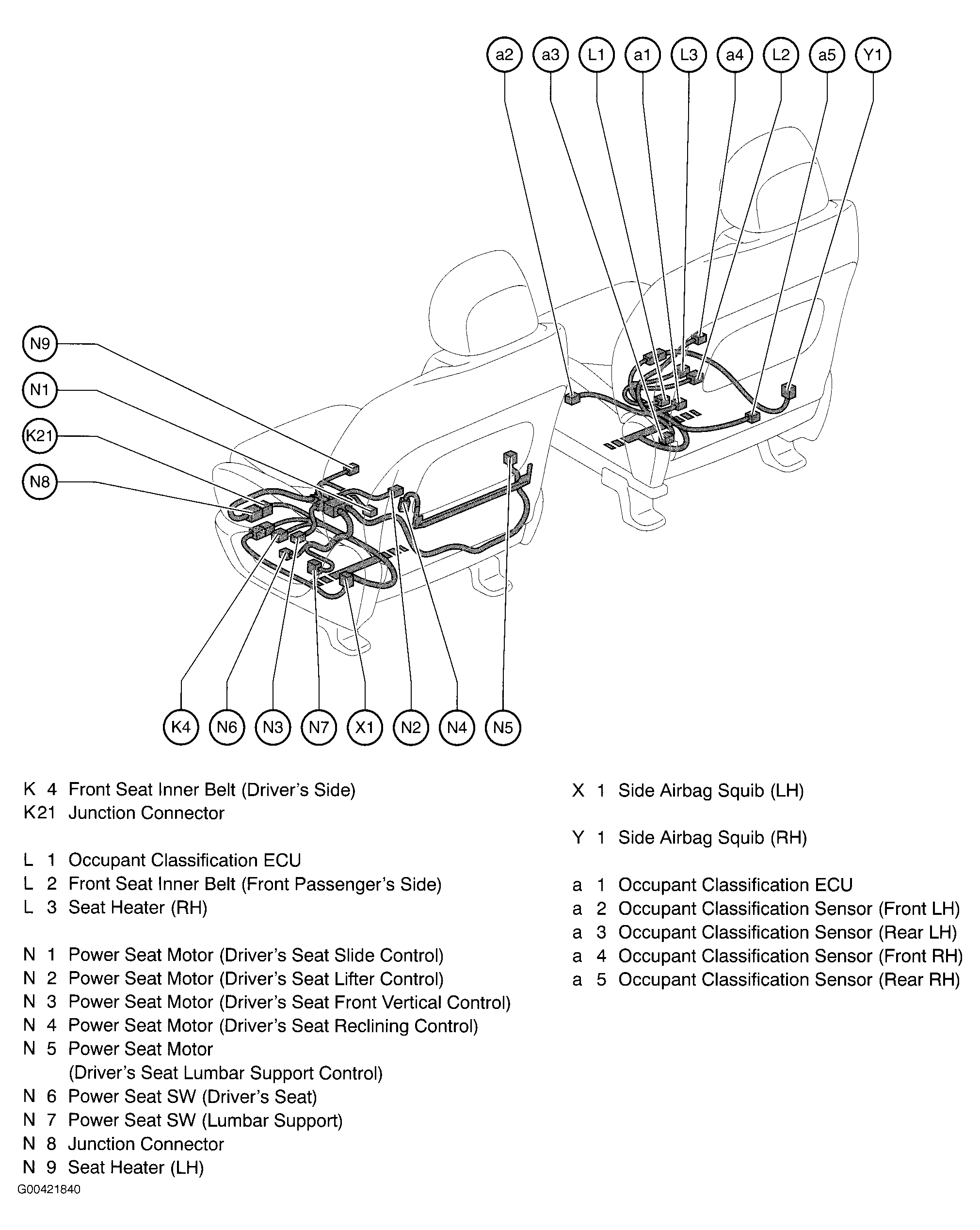

Fig 22: Front Seats

G00421840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

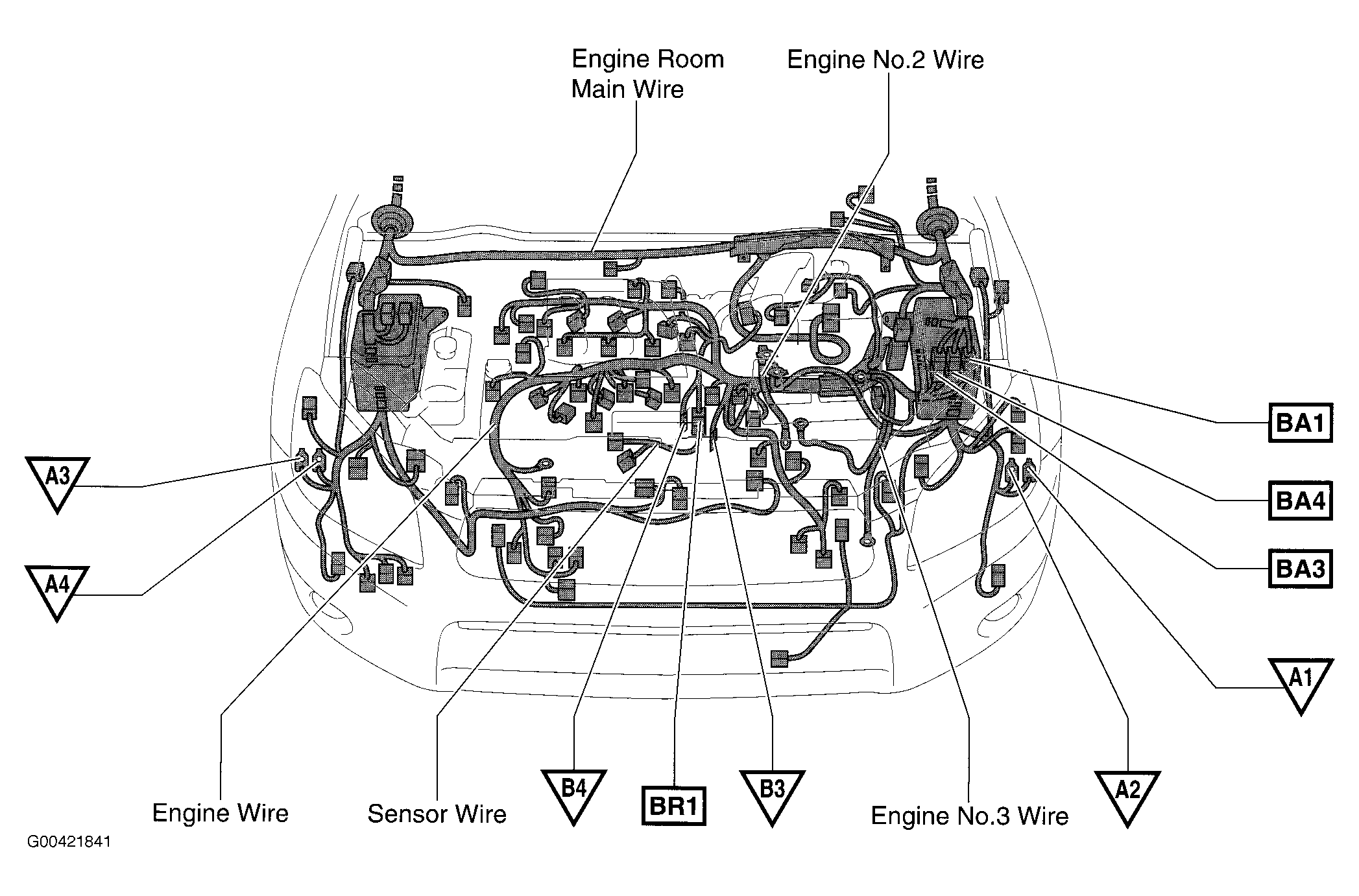

Fig 23: Engine Compartment (3.5L)

G00421841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

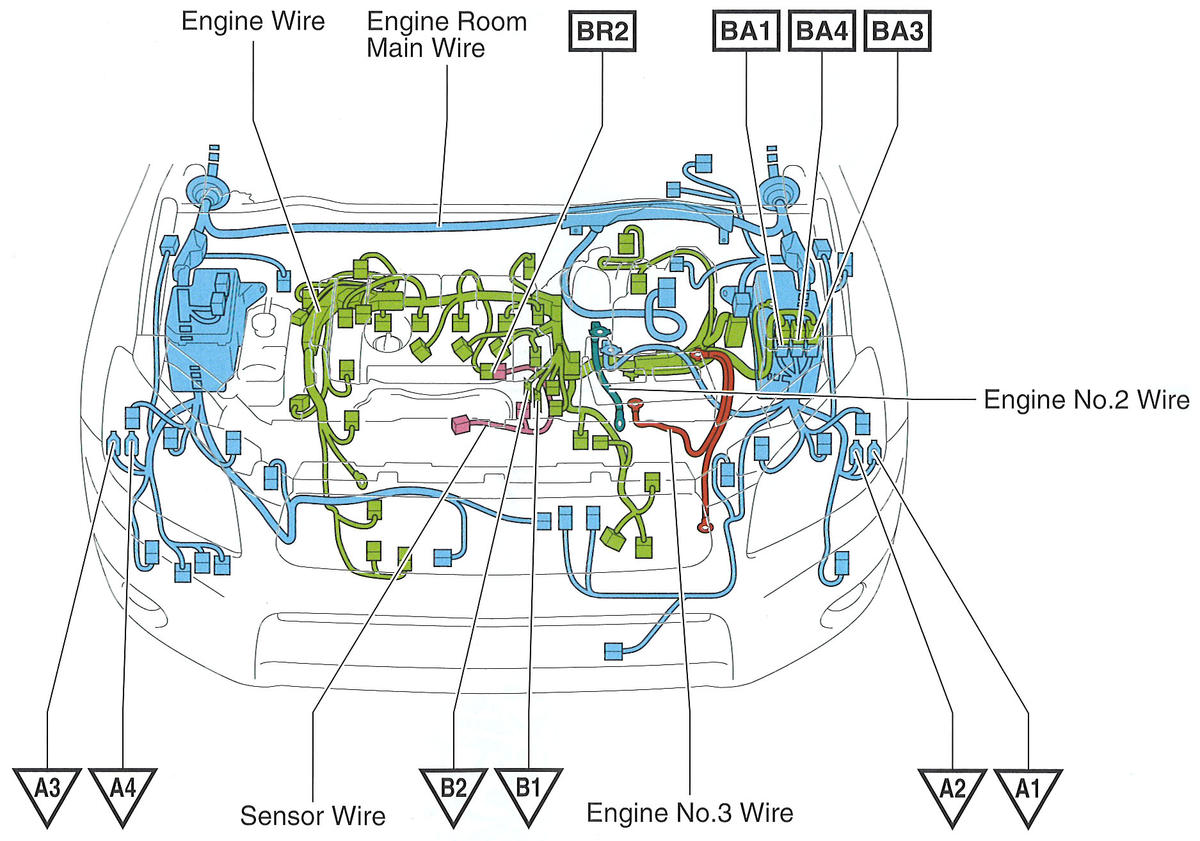

Fig 24: Engine Compartment (2.5L)

G00467313

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

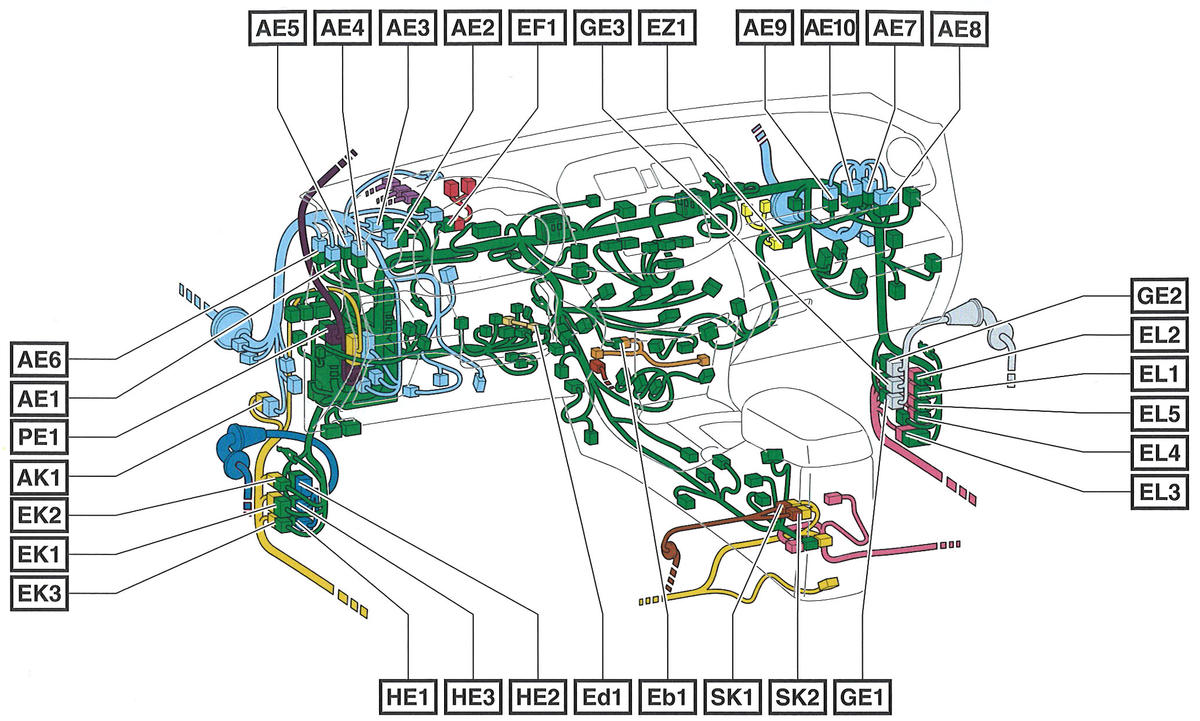

Fig 25: Dash

G00467314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

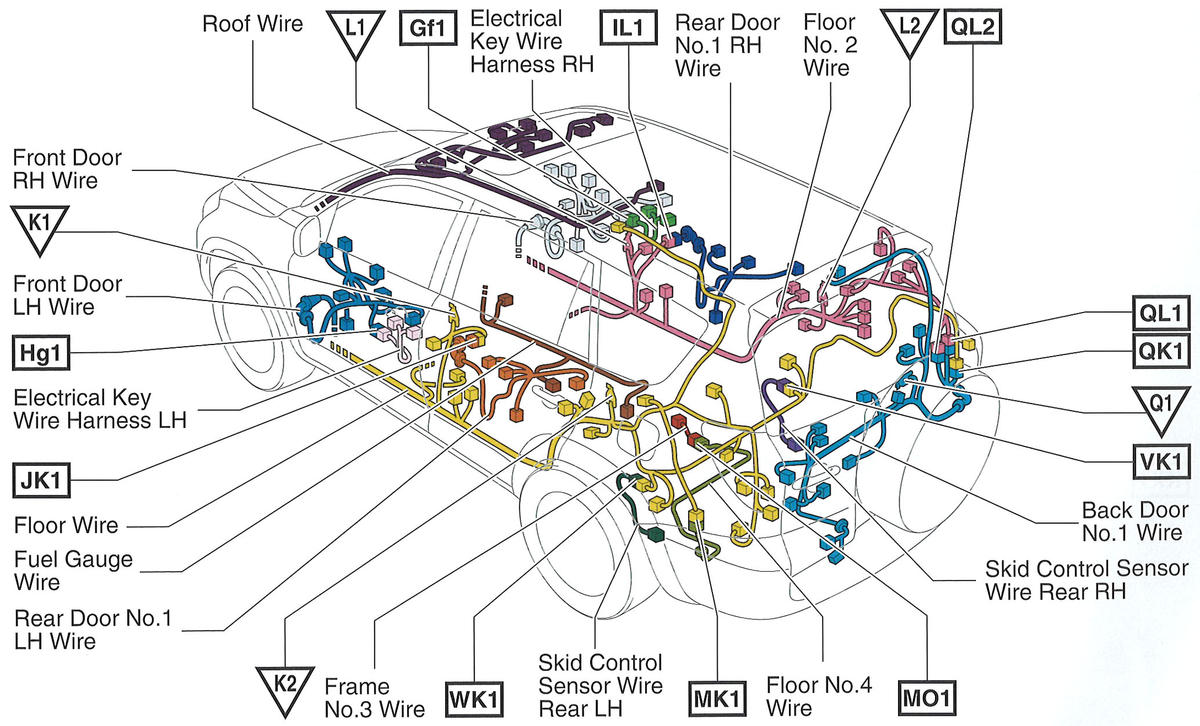

Fig 26: Vehicle Overview

G00467316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

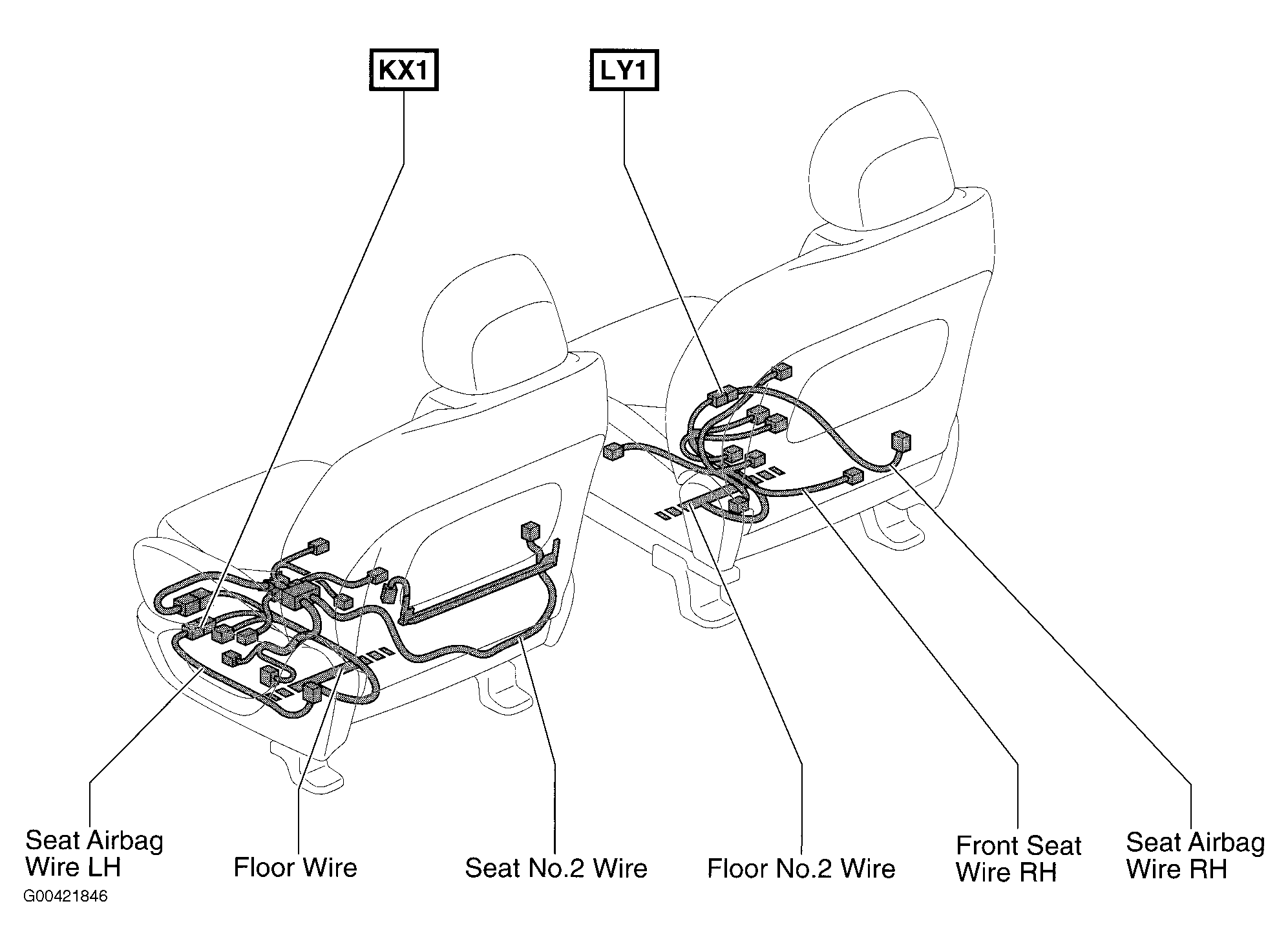

Fig 27: Seats

G00421846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

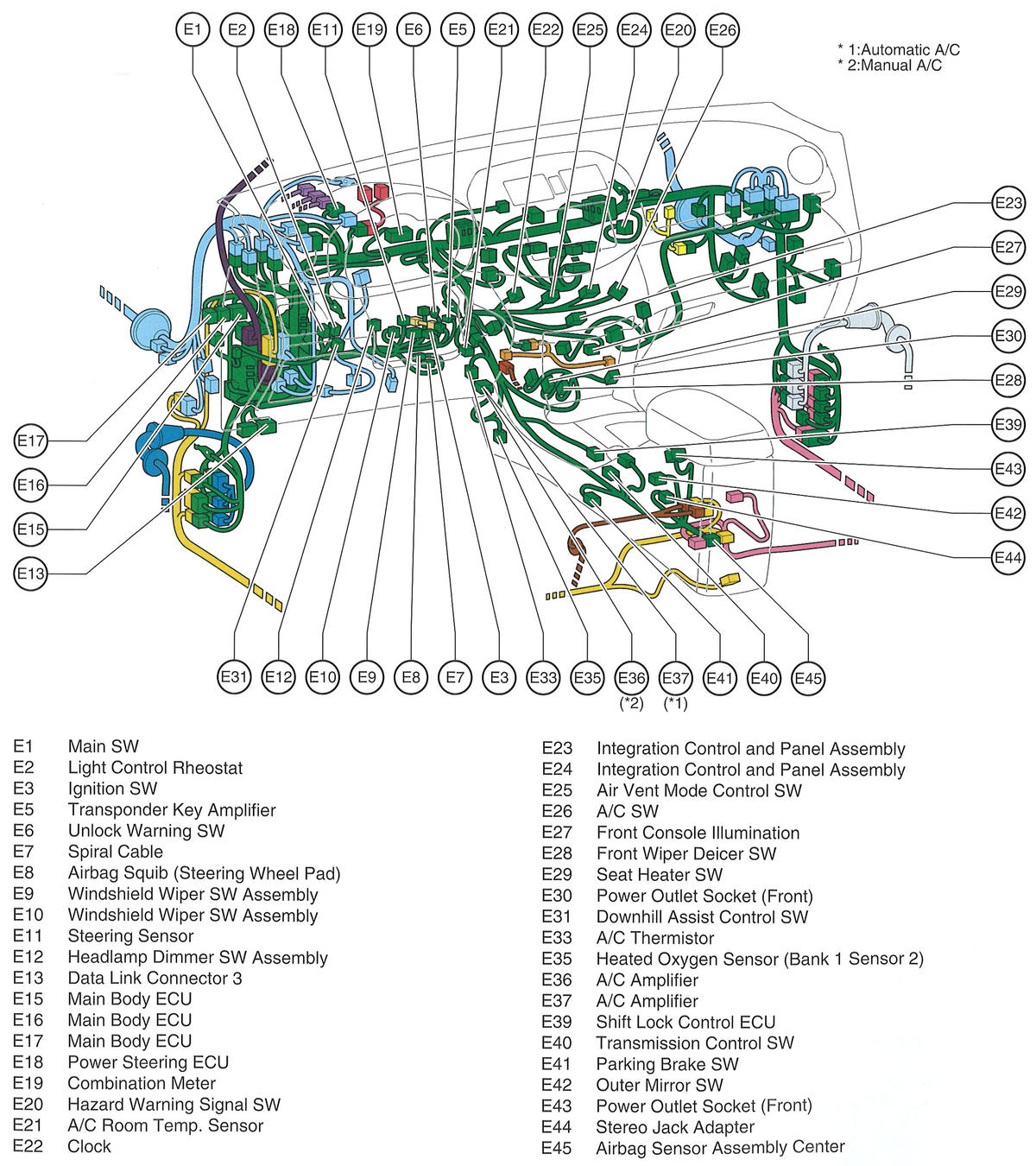

Fig 28: Dash

G00467303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

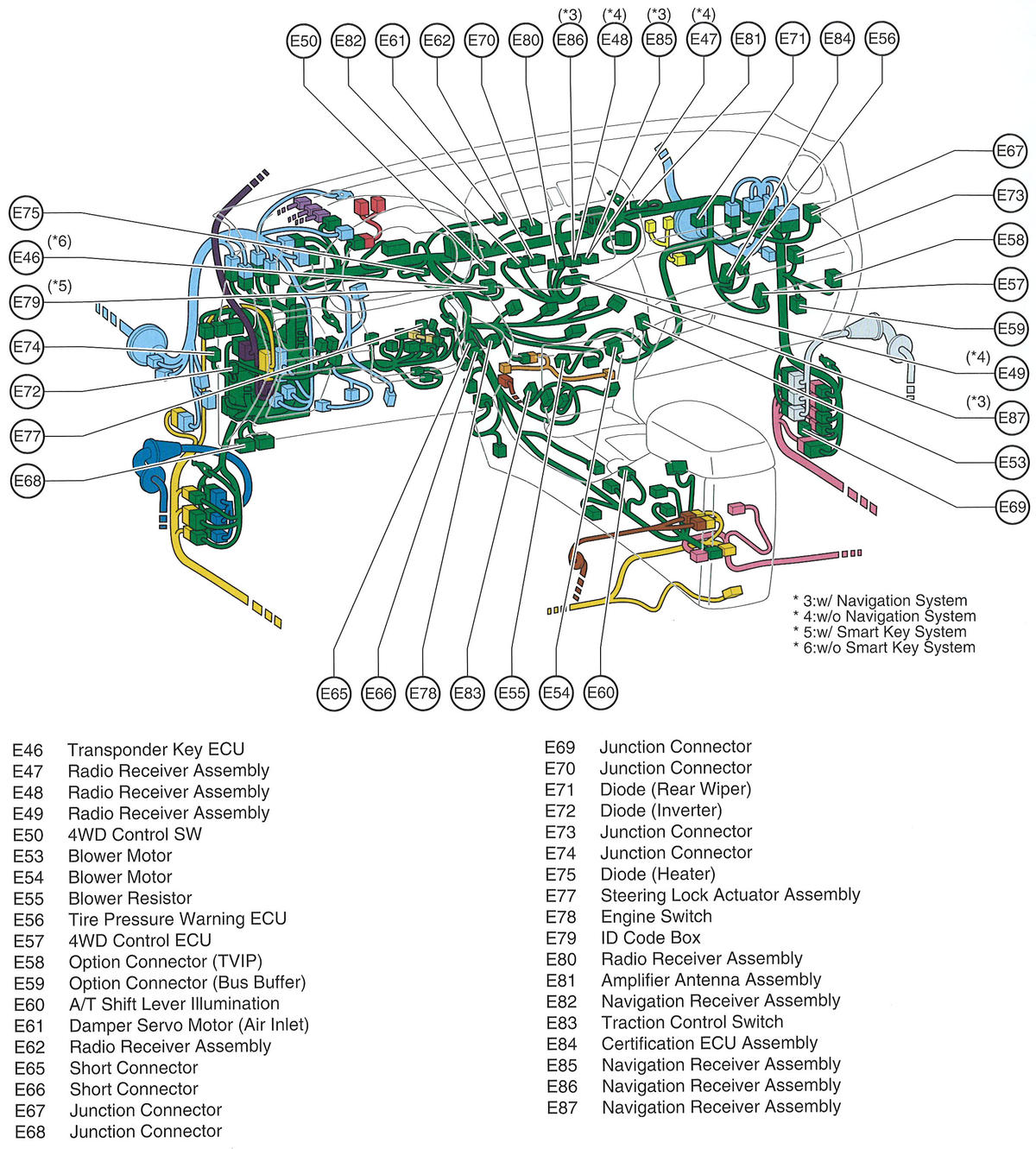

Fig 29: Dash

G00467304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

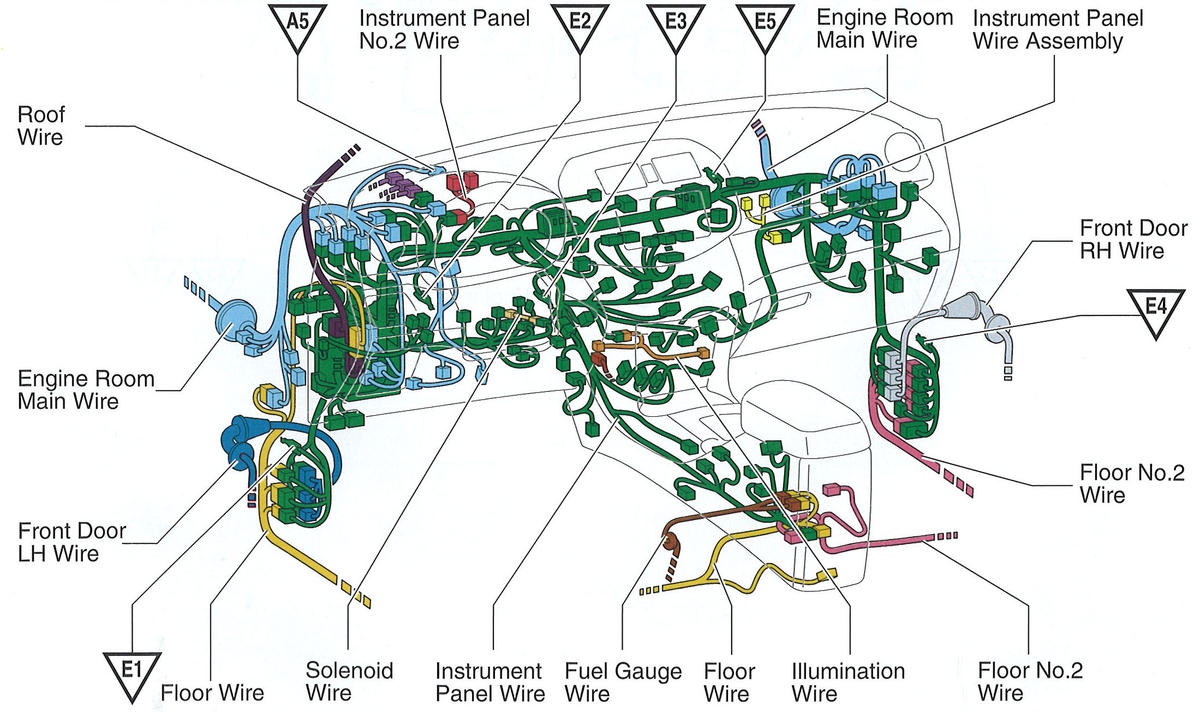

Fig 30: Dash

G00467315

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
