Steering Pad Switch: Components

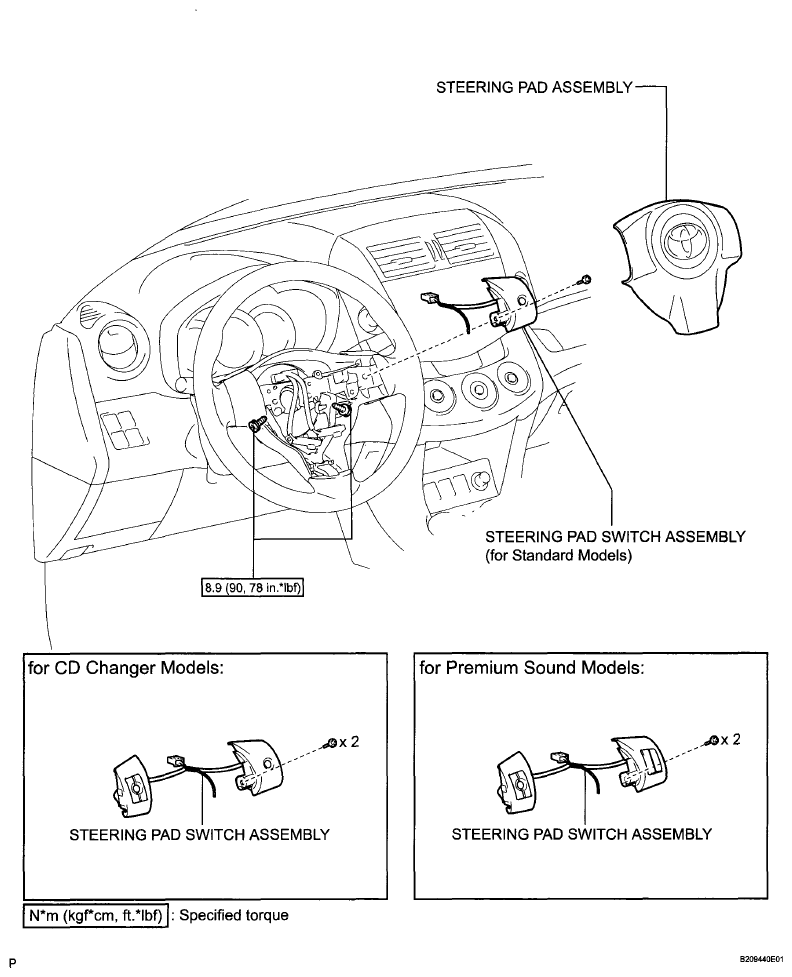

Fig 1: Identifying Steering Pad Switch Components
G06000303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
