Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

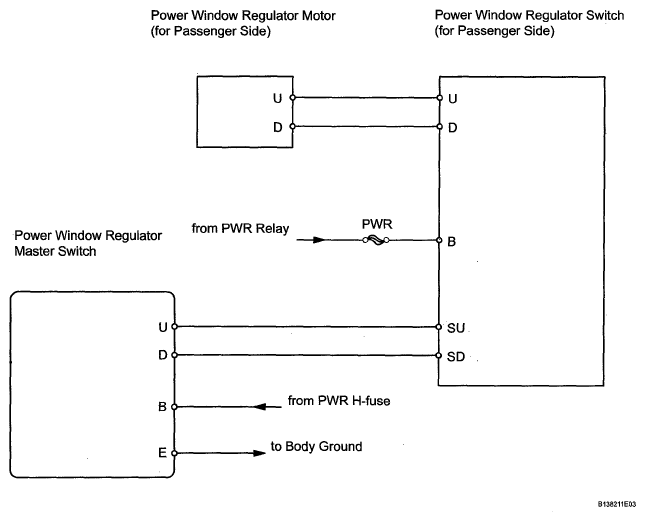

Fig 1: Front Passenger Side Power Window Does Not Operate - Wiring Diagram
G05586457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
