Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Wiring Diagram

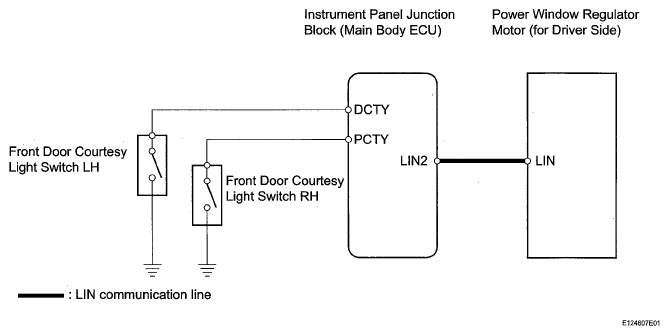

Fig 1: Key-Off Operation Function Operates Even If Operating Conditions Are Not Satisfied - Wiring Diagram
G05586478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
